SSL-LX3059IGW-CA
ActiveLumex Opto/Components Inc.

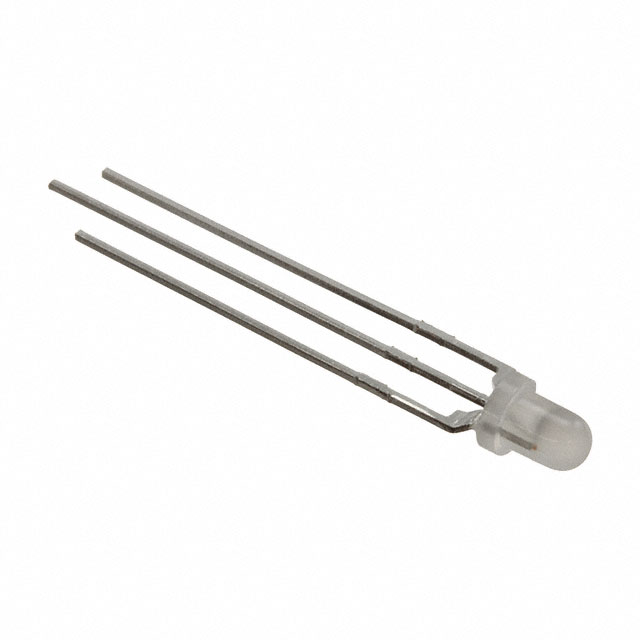

LED GREEN/RED DIFF T-3MM TRI T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SSL-LX3059IGW-CA
ActiveLumex Opto/Components Inc.
LED GREEN/RED DIFF T-3MM TRI T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SSL-LX3059IGW-CA | SSL-LX3059 Series |
|---|---|---|
| Color | Red, Green | Red, Green, Yellow |
| Configuration | Common Anode | Common Anode, Common Cathode |
| Current - Test | 20 mA, 20 mA | 20 mA |
| Current - Test | - | 20mA Red, 20mA Yellow |
| Height (Max) [Max] | 7.03 mm | 5 - 7.03 mm |
| Lens Color | White | White |
| Lens Size | 3 mm | 3 mm |
| Lens Size | T-1 | T-1 |
| Lens Size | - | 3 mm |
| Lens Style | Round with Domed Top | Round with Domed Top |
| Lens Transparency | Diffused | Diffused |
| Millicandela Rating | 30 mcd | 30 - 250 mcd |
| Millicandela Rating | - | 6mcd Green, 6mcd Yellow |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial - 3 Leads | Radial - 3 Leads, Radial |
| Supplier Device Package | T-3mm TRI-LEADED | T-3mm TRI-LEADED, T-1 (3mm) |
| Viewing Angle | 60 ° | 60 ° |
| Voltage - Forward (Vf) (Typ) | 2.2 V, 2 V | 2 - 2.2 V |
| Wavelength - Peak | 565 nm, 635 nm | 565 - 635 nm |
| Wavelength - Peak | - | 585 - 635 nm |
| Wavelength - Peak | - | 636 nm |
| Wavelength - Peak | - | 574 nm |
SSL-LX3059 Series
LED GREEN/RED DIFF T-3MM TRI T/H
| Part | Lens Style | Lens Size | Lens Size | Configuration | Wavelength - Peak | Viewing Angle | Height (Max) [Max] | Lens Transparency | Color | Lens Color | Voltage - Forward (Vf) (Typ) | Mounting Type | Current - Test | Supplier Device Package | Millicandela Rating | Package / Case | Wavelength - Peak [custom] | Current - Test | Millicandela Rating | Lens Size [diameter] | Wavelength - Peak [custom] | Wavelength - Peak [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lumex Opto/Components Inc. SSL-LX3059IGW-CA | Round with Domed Top | 3 mm | T-1 | Common Anode | 565 nm, 635 nm | 60 ° | 7.03 mm | Diffused | Green, Red | White | 2 V, 2.2 V | Through Hole | 20 mA, 20 mA | T-3mm TRI-LEADED | 30 mcd | Radial - 3 Leads | ||||||
Lumex Opto/Components Inc. SSL-LX3059IYW | Round with Domed Top | 3 mm | T-1 | Common Cathode | 60 ° | 7.03 mm | Diffused | Red, Yellow | White | 2 V, 2.1 V | Through Hole | T-3mm TRI-LEADED | 30 mcd, 30 mcd | Radial - 3 Leads | 585 nm, 635 nm | 20mA Red, 20mA Yellow | ||||||
Lumex Opto/Components Inc. SSL-LX3059IGW-TR | Round with Domed Top | 3 mm | T-1 | Common Cathode | 565 nm, 627 nm | 60 ° | 5 mm | Diffused | Green, Red | White | 2 V, 2.2 V | Through Hole | 20 mA, 20 mA | T-3mm TRI-LEADED | 40 mcd, 40 mcd | Radial - 3 Leads | ||||||
Lumex Opto/Components Inc. SSL-LX3059GYW | Round with Domed Top | 3 mm | T-1 | Common Cathode | 565 nm, 585 nm | 60 ° | 7.03 mm | Diffused | Green, Yellow | White | 2 V, 2.2 V | Through Hole | 20 mA, 20 mA | T-3mm TRI-LEADED | Radial - 3 Leads | 6mcd Green, 6mcd Yellow | ||||||
Lumex Opto/Components Inc. SSL-LX3059SYSUGW | Round with Domed Top | 574 nm, 590 nm | 60 ° | 7.03 mm | Green, Yellow | White | 2 V, 2.2 V | Through Hole | 20 mA, 20 mA | T-3mm TRI-LEADED | 80 mcd, 250 mcd | Radial - 3 Leads | 3 mm | |||||||||
Lumex Opto/Components Inc. SSL-LX3059IGW | Round with Domed Top | 3 mm | T-1 | Common Cathode | 565 nm, 635 nm | 60 ° | 7.03 mm | Diffused | Green, Red | White | 2 V, 2.2 V | Through Hole | 20 mA, 20 mA | T-3mm TRI-LEADED | 30 mcd | Radial - 3 Leads | ||||||
Lumex Opto/Components Inc. SSL-LX3059SISUGW | Round with Domed Top | 3 mm | T-1 | Common Cathode | 60 ° | 7.03 mm | Diffused | Green, Red | White | 2 V, 2.2 V | Through Hole | 20 mA, 20 mA | T-1 (3mm) | 90 mcd, 240 mcd | Radial | 636 nm | 574 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.61 | |
| 10 | $ 0.40 | |||
| 100 | $ 0.26 | |||
| 1000 | $ 0.20 | |||
| 2000 | $ 0.18 | |||
| 5000 | $ 0.17 | |||
| 10000 | $ 0.17 | |||
| 25000 | $ 0.16 | |||
Description
General part information
SSL-LX3059 Series
Green, Red LED Indication - Discrete 2.2V Green, 2V Red Radial - 3 Leads
