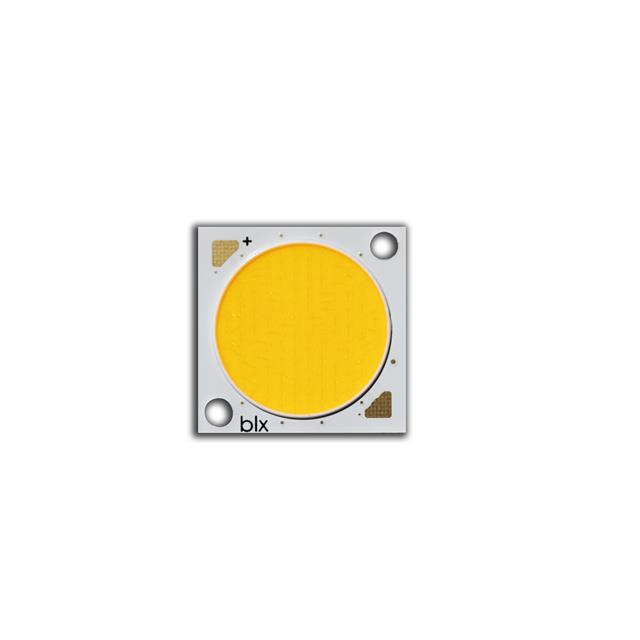

BXRE-35G65F0-C-83

Active

BRIDGELUX

LED COB V22 F90 ARRAY SQ 3500K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRE-35G65F0-C-83

Active

BRIDGELUX

LED COB V22 F90 ARRAY SQ 3500K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXRE-35G65F0-C-83	BXRE-35 Series

CCT (K)	3500 K	3500 K
Color	White, Warm	White, Warm
Configuration	Square	Square
CRI (Color Rendering Index)	90	80 - 98
Current - Max [Max]	2.7 A	1 - 950 mA
Current - Test	-	1.05 - 900 mA
Features	Dimming	Dimming
Height [z]	1.65 mm	1.65 - 1.7 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	23.3 mm	6.1 - 23.3 mm
Lumens/Watt @ Current - Test	139 lm/W	98 - 190 lm/W
Luminous Flux @ Current/Temperature	21445 lm	344 - 21445 lm
Size / Dimension [x]	28 mm	12.5 - 28 mm
Size / Dimension [y]	28 mm	12.5 - 28 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	57 V	8.4 - 57 V

BXRE-35 Series

LED COB V8 ARRAY WM WHT SQ 3500K

...

Part	Temperature - Test	Lumens/Watt @ Current - Test	Lens Type	Viewing Angle	Configuration	Type	CRI (Color Rendering Index)	Height [z]	CCT (K)	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	Color	Current - Test	Size / Dimension [x]	Size / Dimension [y]	Light Emitting Surface (LES) [diameter]	Features
BRIDGELUX BXRE-35E0800-A-23	85 °C	119 lm/W	Flat	120 °	Square	Chip On Board (COB)	80	1.7 mm	3500 K	350 mA	34.6 V	723 lm	Warm, White	175 mA	12.5 mm	12.5 mm	8.1 mm
BRIDGELUX BXRE-35G4000-C-73	85 °C	122 lm/W	Flat		Square	Chip On Board (COB)	90	1.7 mm	3500 K	2.34 A	34 V	4868 lm	Warm, White		24 mm	24 mm	19.2 mm
BRIDGELUX BXRE-35E0800-E-73		169 lm/W	Flat	120 °	Square	Chip On Board (COB)	80	1.7 mm	3500 K	350 mA	34.7 V	1026 lm	Warm, White	175 mA	12.5 mm	12.5 mm	9 mm
BRIDGELUX BXRE-35G6500-B-72	85 °C	123 lm/W	Flat	120 °	Square	Chip On Board (COB)	90	1.7 mm	3500 K	2.34 A	50.7 V	7313 lm	Warm, White		28 mm	28 mm	22.6 mm
BRIDGELUX BXRE-35S1001-C-73	85 °C	111 lm/W	Flat	120 °	Square	Chip On Board (COB)	95	1.7 mm	3500 K	720 mA	33.7 V	1349 lm	Warm, White	360 mA			10.2 mm
BRIDGELUX BXRE-35G4000-C-83		151 lm/W	Flat	120 °	Square	Chip On Board (COB)	90	1.65 mm	3500 K	3 A	33.9 V	5384 lm	Warm, White	1.05 A	24 mm	24 mm	19.6 mm
BRIDGELUX BXRE-35E0800-B-23	85 °C	119 lm/W	Flat	120 °	Square	Chip On Board (COB)	80	1.7 mm	3500 K	700 mA	17.4 V	723 lm	Warm, White	350 mA	12.5 mm	12.5 mm	8.1 mm
BRIDGELUX BXRE-35E6500-B-72	85 °C	148 lm/W	Flat	120 °	Square	Chip On Board (COB)	80	1.7 mm	3500 K	2.34 A	50.7 V	8759 lm	Warm, White		28 mm	28 mm	22.6 mm
BRIDGELUX BXRE-35G40F0-B-83	85 °C	139 lm/W	Flat	120 °	Square	Chip On Board (COB)	90	1.65 mm	3500 K	1.62 A	38 V	8537 lm	Warm, White		24 mm	24 mm	19.6 mm	Dimming
BRIDGELUX BXRE-35G08F0-E-82		184 lm/W	Flat	120 °	Square	Chip On Board (COB)	90	1.65 mm	3500 K	150 mA	34.5 V	951 lm	Warm, White		12.5 mm	12.5 mm	8.5 mm	Dimming

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 15.76
		10	$ 11.96

Description

General part information

BXRE-35 Series

LED Lighting COBs Engines Modules Chip On Board (COB) V22 F90 Array White, Warm Square
