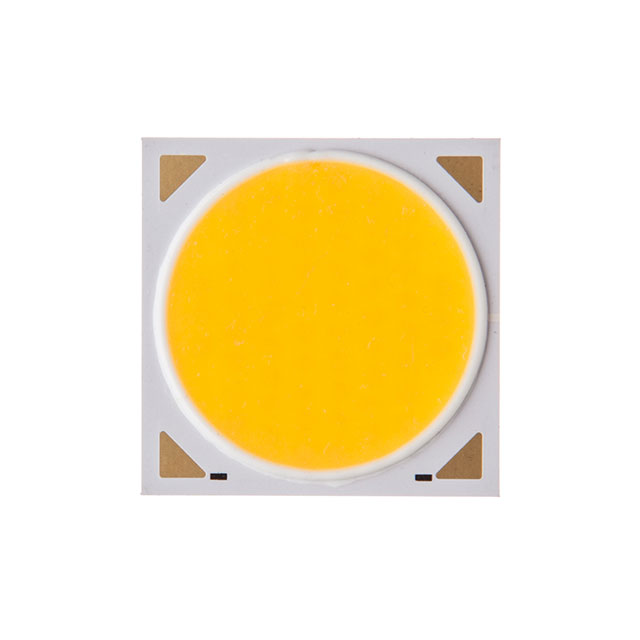

BXRE-35E0800-B-23

Obsolete

BRIDGELUX

LED COB V8 ARRAY WM WHT SQ 3500K

Deep-Dive with AI

Search across all available documentation for this part.

BXRE-35E0800-B-23

Obsolete

BRIDGELUX

LED COB V8 ARRAY WM WHT SQ 3500K

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

BXRE-35 Series

LED Lighting COBs Engines Modules Chip On Board (COB) V8 Array White, Warm Square

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXRE-35E0800-B-23	BXRE-35 Series

CCT (K)	3500 K	3500 K
Color	White, Warm	White, Warm
Configuration	Square	Square
CRI (Color Rendering Index)	80	80 - 98
Current - Max [Max]	700 mA	1 - 950 mA
Current - Test	350 mA	1.05 - 900 mA
Features	-	Dimming
Height [z]	1.7 mm	1.65 - 1.7 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	8.1 mm	6.1 - 23.3 mm
Lumens/Watt @ Current - Test	119 lm/W	98 - 190 lm/W
Luminous Flux @ Current/Temperature	723 lm	344 - 21445 lm
Size / Dimension [x]	12.5 mm	12.5 - 28 mm
Size / Dimension [y]	12.5 mm	12.5 - 28 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	17.4 V	8.4 - 57 V

BXRE-35 Series

LED COB V8 ARRAY WM WHT SQ 3500K

...

Part	Temperature - Test	Lumens/Watt @ Current - Test	Lens Type	Viewing Angle	Configuration	Type	CRI (Color Rendering Index)	Height [z]	CCT (K)	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	Color	Current - Test	Size / Dimension [x]	Size / Dimension [y]	Light Emitting Surface (LES) [diameter]	Features
BRIDGELUX BXRE-35E0800-A-23	85 °C	119 lm/W	Flat	120 °	Square	Chip On Board (COB)	80	1.7 mm	3500 K	350 mA	34.6 V	723 lm	Warm, White	175 mA	12.5 mm	12.5 mm	8.1 mm
BRIDGELUX BXRE-35G4000-C-73	85 °C	122 lm/W	Flat		Square	Chip On Board (COB)	90	1.7 mm	3500 K	2.34 A	34 V	4868 lm	Warm, White		24 mm	24 mm	19.2 mm
BRIDGELUX BXRE-35E0800-E-73		169 lm/W	Flat	120 °	Square	Chip On Board (COB)	80	1.7 mm	3500 K	350 mA	34.7 V	1026 lm	Warm, White	175 mA	12.5 mm	12.5 mm	9 mm
BRIDGELUX BXRE-35G6500-B-72	85 °C	123 lm/W	Flat	120 °	Square	Chip On Board (COB)	90	1.7 mm	3500 K	2.34 A	50.7 V	7313 lm	Warm, White		28 mm	28 mm	22.6 mm
BRIDGELUX BXRE-35S1001-C-73	85 °C	111 lm/W	Flat	120 °	Square	Chip On Board (COB)	95	1.7 mm	3500 K	720 mA	33.7 V	1349 lm	Warm, White	360 mA			10.2 mm
BRIDGELUX BXRE-35G4000-C-83		151 lm/W	Flat	120 °	Square	Chip On Board (COB)	90	1.65 mm	3500 K	3 A	33.9 V	5384 lm	Warm, White	1.05 A	24 mm	24 mm	19.6 mm
BRIDGELUX BXRE-35E0800-B-23	85 °C	119 lm/W	Flat	120 °	Square	Chip On Board (COB)	80	1.7 mm	3500 K	700 mA	17.4 V	723 lm	Warm, White	350 mA	12.5 mm	12.5 mm	8.1 mm
BRIDGELUX BXRE-35E6500-B-72	85 °C	148 lm/W	Flat	120 °	Square	Chip On Board (COB)	80	1.7 mm	3500 K	2.34 A	50.7 V	8759 lm	Warm, White		28 mm	28 mm	22.6 mm
BRIDGELUX BXRE-35G40F0-B-83	85 °C	139 lm/W	Flat	120 °	Square	Chip On Board (COB)	90	1.65 mm	3500 K	1.62 A	38 V	8537 lm	Warm, White		24 mm	24 mm	19.6 mm	Dimming
BRIDGELUX BXRE-35G08F0-E-82		184 lm/W	Flat	120 °	Square	Chip On Board (COB)	90	1.65 mm	3500 K	150 mA	34.5 V	951 lm	Warm, White		12.5 mm	12.5 mm	8.5 mm	Dimming
