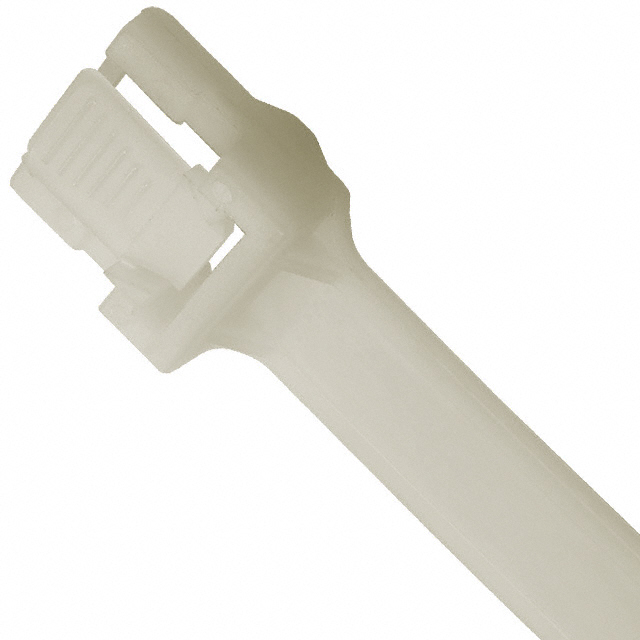

CTR006A
ActiveEssentra Access Solutions
CBL TIE RELEASABL NAT 40LB 3.93"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CTR006A
ActiveEssentra Access Solutions
CBL TIE RELEASABL NAT 40LB 3.93"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CTR006A |
|---|---|
| Bundle Diameter [diameter] | 25 mm |
| Bundle Diameter [diameter] | 0.98 in |
| Color | Natural |
| Length - Actual | 0.328 ft |
| Length - Actual | 3.93 in |
| Length - Actual | 100 mm |
| Length - Approximate | 4 in |
| Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Tensile Strength | 40 lbs |
| Tensile Strength | 18.14 kg |
| Width [x] | 3.58 mm |
| Width [x] | 0.141 in |
| Wire/Cable Tie Type | Standard, Releasable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 0.10 | |
| 200 | $ 0.09 | |||
| 300 | $ 0.09 | |||
| 500 | $ 0.08 | |||
| 700 | $ 0.08 | |||
| 1000 | $ 0.08 | |||
| 2500 | $ 0.07 | |||
| 5000 | $ 0.07 | |||
| 10000 | $ 0.06 | |||
Description
General part information
CTR006 Series
Standard, Releasable Natural 0.98" (25.00mm) 0.141" (3.58mm) 40 lbs (18.14 kg)
Documents
Technical documentation and resources
