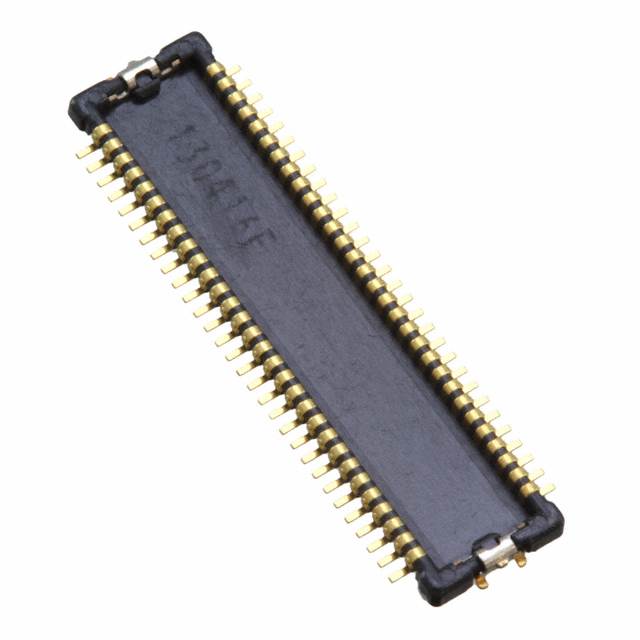

AXK8L60124BG

Obsolete

Panasonic Electric Works

CONN HDR 60POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN HDR 60POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK8L60124BG

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.63 mm
Height Above Board	0.025 in
Mated Stacking Heights	0.9 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Number of Rows	Contact Finish	Mated Stacking Heights	Connector Type	Pitch [x]	Pitch [x]	Mounting Type	Number of Positions	Height Above Board	Height Above Board	Features
Panasonic Electric Works AXK8L60124BG	2	Gold	0.9 mm	Header Outer Shroud Contacts	0.016 in	0.4 mm	Surface Mount	60	0.63 mm	0.025 in	Solder Retention

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

60 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
