342-050-500-103

Active

EDAC Inc.

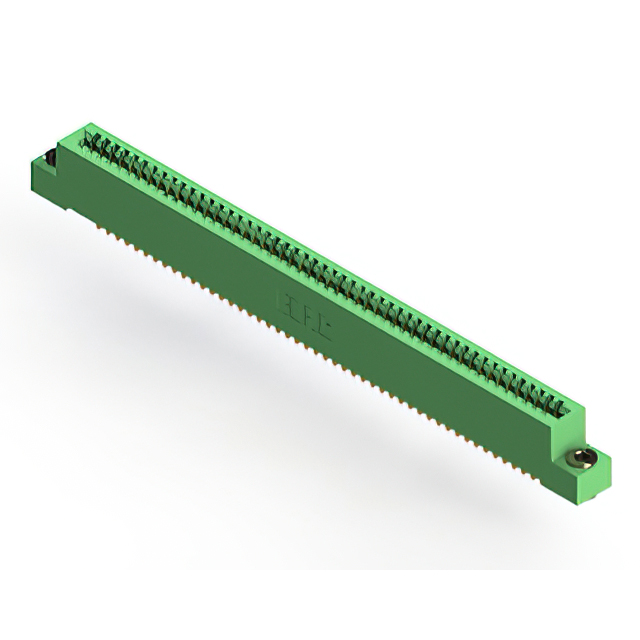

2.54MM STRAIGHT 50P -40℃~+105℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

342-050-500-103

Active

EDAC Inc.

2.54MM STRAIGHT 50P -40℃~+105℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	342-050-500-103

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	50
Number of Positions/Bay/Row [custom]	50
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder Eyelet(s)
Termination Rows	1

342-050 Series

...

Part	Card Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Mounting Type	Contact Type	Number of Positions	Number of Positions/Bay/Row [custom]	Termination	Termination Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Contact Finish	Read Out	Pitch [x]	Pitch [x]	Gender	Material - Insulation	Color	Contact Material	Features
EDAC Inc. 342-050-559-104	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Through Hole Right Angle	Cantilever	50	50	Solder Wire Wrap	1	-40 °C	105 ░C	10 Áin	0.25 Ám	1	Gold	Single	2.54 mm	0.1 in	Female	Polyester Thermoplastic	Green	Copper Alloy
EDAC Inc. 342-050-542-101	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in				Through Hole	Cantilever	50	50	Wire Wrap	1	-40 °C	105 ░C	10 Áin	0.25 Ám	1	Gold	Single	2.54 mm	0.1 in	Female	Polyester Thermoplastic	Green	Copper Alloy
EDAC Inc. 342-050-555-203	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Board Edge Straddle Mount	Cantilever	50	25	Solder Eyelet(s)	2	-40 °C	105 ░C	10 Áin	0.25 Ám	2	Gold	Dual	2.54 mm	0.1 in	Female	Polyester Thermoplastic	Green	Copper Alloy	Card Extender
EDAC Inc. 342-050-556-208	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in		4-40 Flush Mount Threaded Insert Top Opening		Board Edge Straddle Mount	Cantilever	50	25	Solder	2	-40 °C	105 ░C	10 Áin	0.25 Ám	2	Gold	Dual	2.54 mm	0.1 in	Female	Polyester Thermoplastic	Green	Copper Alloy	Card Extender
EDAC Inc. 342-050-521-108	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in		4-40 Flush Mount Threaded Insert Top Opening		Through Hole	Cantilever	50	50	Solder	1	-40 °C	105 ░C	10 Áin	0.25 Ám	1	Gold	Single	2.54 mm	0.1 in	Female	Polyester Thermoplastic	Green	Copper Alloy
EDAC Inc. 342-050-500-103	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Through Hole	Cantilever	50	50	Solder Eyelet(s)	1	-40 °C	105 ░C	10 Áin	0.25 Ám	1	Gold	Single	2.54 mm	0.1 in	Female	Polyester Thermoplastic	Green	Copper Alloy
EDAC Inc. 342-050-559-212	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Through Hole Right Angle	Cantilever	50	25	Solder Wire Wrap	2	-40 °C	105 ░C	10 Áin	0.25 Ám	2	Gold	Dual	2.54 mm	0.1 in	Female	Polyester Thermoplastic	Green	Copper Alloy
EDAC Inc. 342-050-540-207	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in		Flush Mount M3 Threaded Insert Top Opening		Through Hole	Cantilever	50	25	Wire Wrap	2	-40 °C	105 ░C	10 Áin	0.25 Ám	2	Gold	Dual	2.54 mm	0.1 in	Female	Polyester Thermoplastic	Green	Copper Alloy
EDAC Inc. 342-050-523-203	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Through Hole	Cantilever	50	25	Solder	2	-40 °C	105 ░C	10 Áin	0.25 Ám	2	Gold	Dual	2.54 mm	0.1 in	Female	Polyester Thermoplastic	Green	Copper Alloy
EDAC Inc. 342-050-521-101	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in				Through Hole	Cantilever	50	50	Solder	1	-40 °C	105 ░C	10 Áin	0.25 Ám	1	Gold	Single	2.54 mm	0.1 in	Female	Polyester Thermoplastic	Green	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 35.97
LCSC	Piece	1	$ 23.93
		200	$ 9.26
		500	$ 8.93
		1000	$ 8.77

Description

General part information

342-050 Series

50 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
