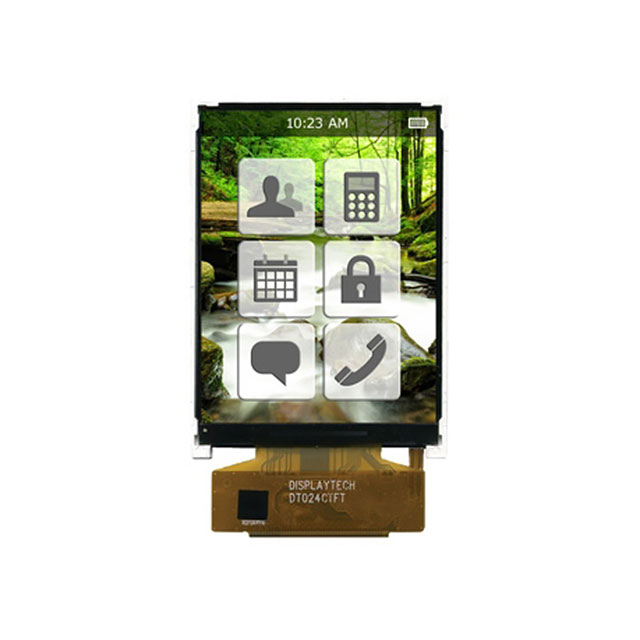

DT024CTFT-TS

Active

Displaytech

LCD DISP TFT 2.4" 240X320

Search across all available documentation for this part.

Active

Displaytech

LCD DISP TFT 2.4" 240X320

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DT024CTFT-TS	DT024 Series

Backlight	LED	LED
Diagonal Screen Size	60.96 mm	60.96 mm
Diagonal Screen Size [custom]	2.4 in	2.4 in
Display Mode	Transmissive	Transmissive
Display Type	TFT - Color	TFT - Color, IPS (In-Plane Switching), TFT - Color
Dot Pixels [x]	240 pixels	240 pixels
Dot Pixels [y]	320	320
Graphics Color	Green, Red, Blue	Green, Red, Blue
Interface	Parallel	Parallel
Touchscreen	Resistive	Resistive
Viewing Area [custom]	36.72 mm	36.72 mm
Viewing Area [custom]	48.96 mm	48.96 mm

LCD DISP TFT 2.4" 240X320

Part	Graphics Color	Dot Pixels [y]	Dot Pixels [x]	Interface	Display Mode	Display Type	Backlight	Viewing Area [custom]	Viewing Area [custom]	Diagonal Screen Size	Diagonal Screen Size [custom]	Touchscreen
Displaytech DT024DTFT	Blue, Green, Red	320	240 pixels	Parallel	Transmissive	TFT - Color, IPS (In-Plane Switching)	LED	36.72 mm	48.96 mm	60.96 mm	2.4 in
Displaytech DT024CTFT-TS	Blue, Green, Red	320	240 pixels	Parallel	Transmissive	TFT - Color	LED	36.72 mm	48.96 mm	60.96 mm	2.4 in	Resistive
Displaytech DT024CTFT	Blue, Green, Red	320	240 pixels	Parallel	Transmissive	TFT - Color	LED	36.72 mm	48.96 mm	60.96 mm	2.4 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Resistive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel 2.4" (60.96mm) 240 x 320
