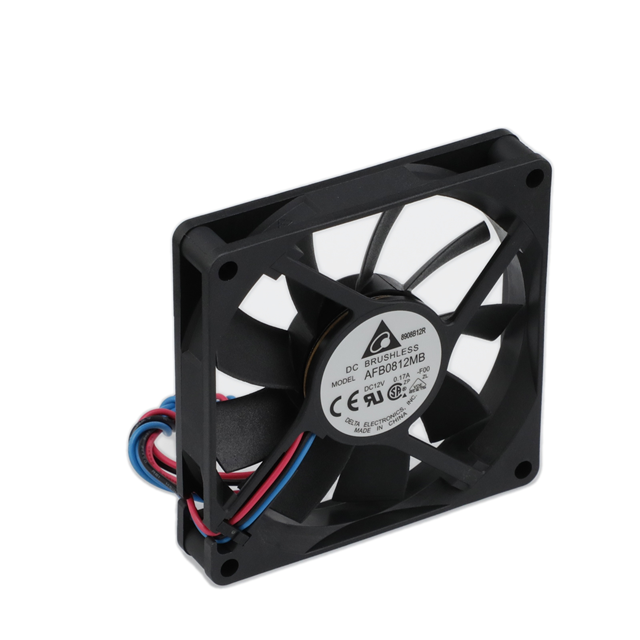

AFB0812MB-F00

Obsolete

Delta Electronics

FAN AXIAL 80X15MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AFB0812MB-F00

Obsolete

Delta Electronics

FAN AXIAL 80X15MM 12VDC WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AFB0812MB-F00

Air Flow	28.3 CFM
Air Flow	0.792 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	110 mA
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	30.5 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.32 W
RPM	2700 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	0.107 in H2O
Static Pressure	26.6 Pa
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	7 V
Weight	0.128 lb
Weight	58.06 g
Width [x]	15 mm

AFB0812 Series

Part	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Frame	Approval Agency	Voltage Range [Min]	Voltage Range [Max]	Fan Type	Current Rating (Amps)	Voltage - Rated	Weight	Weight	Lifetime @ Temp.	Bearing Type	Noise	Air Flow	Air Flow	Termination	Power (Watts)	Width [y]	Features	Static Pressure	Static Pressure	RPM	Material - Blade	Size / Dimension [y]	Size / Dimension [x]	Width [x]
Delta Electronics AFB0812M-F00	70 °C	70 °C	-10 °C	-10 °C	Plastic	CE CSA UL VDE	7 V	13.8 VDC	Tubeaxial	120 mA	12 VDC	80 g	0.176 lb	70000 Hrs	Ball	28 dB	0.879 m³/min	31.4 CFM	3 Wire Leads	1.44 W	25.4 mm	Locked Rotor Protection Speed Sensor (Tach)	32.1 Pa	0.129 in H2O	2700 RPM	Plastic	80 mm	80 mm
Delta Electronics AFB0812SH-R00	70 °C	70 °C	-10 °C	-10 °C	Plastic	CE CSA UL VDE	7 V	13 VDC	Tubeaxial	0.34 A	12 VDC	80 g	0.176 lb	70000 Hrs	Ball	40 dB(A)	1.3 m³/min	46.6 CFM	3 Wire Leads		25.4 mm	Locked Rotor Sensor	66.5 Pa	0.267 in H2O	4000 RPM	Plastic	80 mm	80 mm
Delta Electronics AFB0812SHE	70 °C	70 °C	-10 °C	-10 °C	Plastic	CE CSA UL VDE	6 VDC	13.8 VDC	Tubeaxial	0.68 A	12 VDC	156.04 g	0.344 lb	70000 Hrs	Ball	46 dB(A)	2.04 m³/min	72.8 CFM	2 Wire Leads	8.16 W	38 mm		136.3 Pa	0.547 in H2O	5000 RPM	Plastic	80 mm	80 mm
Delta Electronics AFB0812HHB	70 °C	70 °C	-10 °C	-10 °C	Plastic	CE CSA UL VDE	7 V	13.8 VDC	Tubeaxial		12 VDC	58.06 g	0.128 lb	70000 Hrs	Ball	37 dB	1 m³/min	35.7 CFM	2 Wire Leads	1.92 W			39.6 Pa	0.159 in H2O	3400 RPM	Plastic	80 mm	80 mm	15 mm
Delta Electronics AFB0812GHE-F00	70 °C	70 °C	-10 °C	-10 °C	Plastic	CE CSA UL VDE	6 VDC	13.8 VDC	Tubeaxial	1.4 A	12 VDC	156.04 g	0.344 lb	70000 Hrs	Ball	54 dB			3 Wire Leads	16.8 W	38 mm	Locked Rotor Protection Speed Sensor (Tach)	250.6 Pa	1.006 in H2O	6800 RPM	Plastic	80 mm	80 mm
Delta Electronics AFB0812SH	70 °C	70 °C	-10 °C	-10 °C	Plastic	CE CSA UL VDE	7 V	13 VDC	Tubeaxial	0.34 A	12 VDC	80 g	0.176 lb	70000 Hrs	Ball	40 dB(A)	1.3 m³/min	46.6 CFM	2 Wire Leads		25.4 mm		66.5 Pa	0.267 in H2O	4000 RPM	Plastic	80 mm	80 mm
Delta Electronics AFB0812VHB-F00	70 °C	70 °C	-10 °C	-10 °C	Plastic	CE CSA UL VDE	7 V	13.8 VDC	Tubeaxial	0.19 A	12 VDC	58.06 g	0.128 lb	70000 Hrs	Ball	39.5 dB	1.1 m³/min	39.2 CFM	3 Wire Leads	2.28 W		Locked Rotor Protection Speed Sensor (Tach)	46.8 Pa	0.188 in H2O	3700 RPM	Plastic	80 mm	80 mm	15 mm
Delta Electronics AFB0812SH-F00	70 °C	70 °C	-10 °C	-10 °C	Plastic	CE CSA UL VDE	7 V	13 VDC	Tubeaxial	0.34 A	12 VDC	80 g	0.176 lb	70000 Hrs	Ball	40 dB(A)	1.3 m³/min	46.6 CFM	3 Wire Leads		25.4 mm	Locked Rotor Protection Speed Sensor (Tach)	66.5 Pa	0.267 in H2O	4000 RPM	Plastic	80 mm	80 mm
Delta Electronics AFB0812MB-F00	70 °C	70 °C	-10 °C	-10 °C	Plastic	CE CSA UL VDE	7 V	13.8 VDC	Tubeaxial	110 mA	12 VDC	58.06 g	0.128 lb	70000 Hrs	Ball	30.5 dB	0.792 m³/min	28.3 CFM	3 Wire Leads	1.32 W		Locked Rotor Protection Speed Sensor (Tach)	26.6 Pa	0.107 in H2O	2700 RPM	Plastic	80 mm	80 mm	15 mm
Delta Electronics AFB0812MD-A	70 °C	70 °C	-10 °C	-10 °C	Plastic	CE CSA UL VDE	5 VDC	13.8 VDC	Tubeaxial		12 VDC	73.03 g	0.161 lb	70000 Hrs	Ball	36 dB	1.17 m³/min	41.7 CFM	2 Wire Leads	1.92 W	20 mm		45.3 Pa	0.182 in H2O	3600 RPM	Plastic	80 mm	80 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AFB0812 Series

Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 28.3 CFM (0.792m³/min) 3 Wire Leads
