346-032-559-112

Active

EDAC Inc.

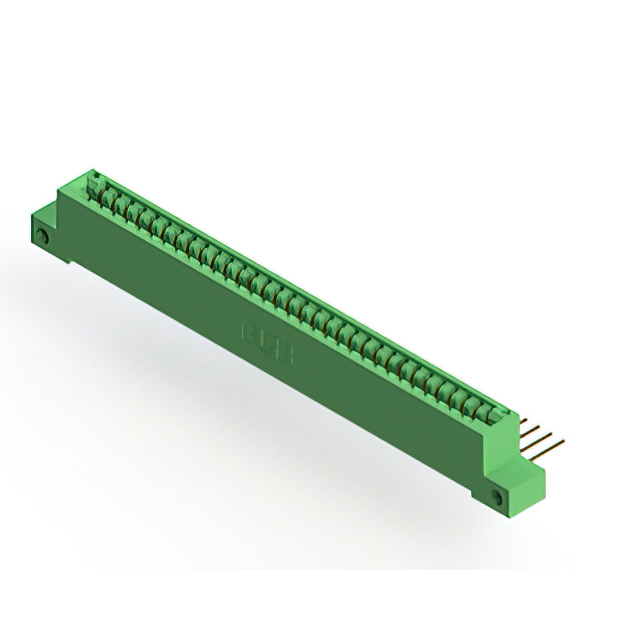

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 32 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Enhanced Product Overview EN

346-032-559-112

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 32 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet Enhanced Product Overview EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	346-032-559-112

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Unthreaded, Flush Mount, Side Opening
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions/Bay/Row [custom]	32
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Single
Termination	Wire Wrap, Solder
Termination Rows	1

346-032 Series

...

Part	Card Type	Material - Insulation	Number of Rows	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Pitch [x]	Pitch [x]	Mounting Type	Gender	Contact Finish	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row [custom]	Color	Termination Rows	Features	Termination	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Material	Read Out	Flange Feature	Flange Feature
EDAC Inc. 346-032-560-203	Non Specified - Dual Edge	Polyester Thermoplastic	2	0.116 in	Floating Bobbin Flush Mount	2.95 mm	0.125 in	3.18 mm	Board Edge Straddle Mount	Female	Gold	Cantilever	-40 °C	105 ░C	10 Áin	0.25 Ám	16	Green	2	Card Extender	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Dual
EDAC Inc. 346-032-521-212	Non Specified - Dual Edge	Polyester Thermoplastic	2	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	0.125 in	3.18 mm	Through Hole	Female	Gold	Cantilever	-40 °C	105 ░C	10 Áin	0.25 Ám	16	Green	2		Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Dual
EDAC Inc. 346-032-559-112	Non Specified - Single Edge	Polyester Thermoplastic	1	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	0.125 in	3.18 mm	Through Hole Right Angle	Female	Gold	Cantilever	-40 °C	105 ░C	10 Áin	0.25 Ám	32	Green	1		Solder Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Single
EDAC Inc. 346-032-522-103	Non Specified - Single Edge	Polyester Thermoplastic	1	0.116 in	Floating Bobbin Flush Mount	2.95 mm	0.125 in	3.18 mm	Through Hole	Female	Gold	Cantilever	-40 °C	105 ░C	10 Áin	0.25 Ám	32	Green	1		Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Single
EDAC Inc. 346-032-559-208	Non Specified - Dual Edge	Polyester Thermoplastic	2		4-40 Flush Mount Threaded Insert Top Opening		0.125 in	3.18 mm	Through Hole Right Angle	Female	Gold	Cantilever	-40 °C	105 ░C	10 Áin	0.25 Ám	16	Green	2		Solder Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Dual
EDAC Inc. 346-032-541-802	Non Specified - Dual Edge	Polyester Thermoplastic	2				0.125 in	3.18 mm	Through Hole	Female	Gold	Cantilever	-40 °C	105 ░C	10 Áin	0.25 Ám	16	Green	2		Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Dual	3.25 mm	0.128 in
EDAC Inc. 346-032-522-658	Non Specified - Single Edge	Polyester Thermoplastic	1		4-40 Threaded Insert Top Mount Opening		0.125 in	3.18 mm	Through Hole	Female	Gold	Cantilever	-40 °C	105 ░C	10 Áin	0.25 Ám	32	Green	1	Card Guides	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Single
EDAC Inc. 346-032-560-804	Non Specified - Dual Edge	Polyester Thermoplastic	2	0.156 in	Top Mount Opening Unthreaded	3.96 mm	0.125 in	3.18 mm	Board Edge Straddle Mount	Female	Gold	Cantilever	-40 °C	105 ░C	10 Áin	0.25 Ám	16	Green	2	Card Extender	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Dual
EDAC Inc. 346-032-520-207	Non Specified - Dual Edge	Polyester Thermoplastic	2		Flush Mount M3 Threaded Insert Top Opening		0.125 in	3.18 mm	Through Hole	Female	Gold	Cantilever	-40 °C	105 ░C	10 Áin	0.25 Ám	16	Green	2		Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Dual
EDAC Inc. 346-032-556-858	Non Specified - Dual Edge	Polyester Thermoplastic	2		4-40 Threaded Insert Top Mount Opening		0.125 in	3.18 mm	Board Edge Straddle Mount	Female	Gold	Cantilever	-40 °C	105 ░C	10 Áin	0.25 Ám	16	Green	2		Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Dual

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 12.06
Newark	Each	25	$ 12.43
		50	$ 11.79
		100	$ 11.15
		250	$ 10.51

Description

General part information

346-032 Series

32 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
