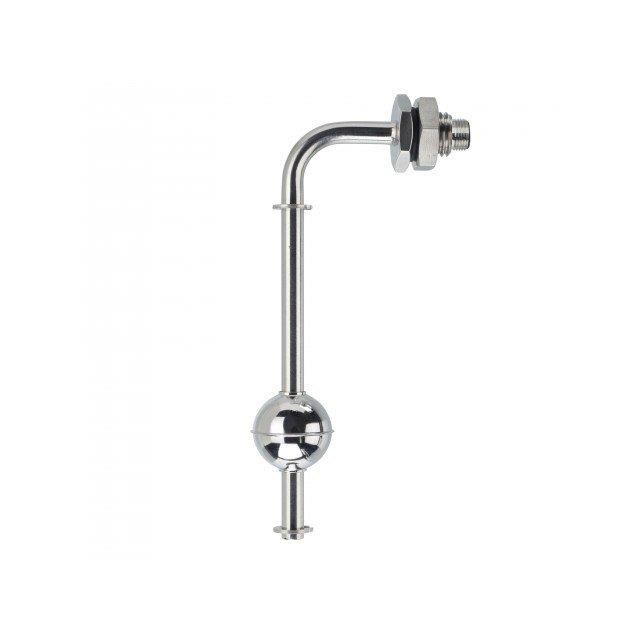

SSV66A35B160SPM12

Active

Sensata Technologies

SD MNT DUAL SW PNT FLTSW M12

Search across all available documentation for this part.

Active

Sensata Technologies

SD MNT DUAL SW PNT FLTSW M12

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSV66A35B160SPM12	SSV66A35 Series

Current	500 mA	500 mA
Material - Housing & Prism	316 Stainless Steel	316 Stainless Steel
Minimum Liquid Specific Gravity [Min]	0.75	0.75
Mounting Type	Panel Mount, M16 Thread	Panel Mount, M16 Thread
Operating Temperature	120 °C	120 °C
Output Configuration	SPST-NC, SPST-NO	SPST-NC, SPST-NO
Output Type	Switch (2) (Single Float)	Switch (2) (Single Float)
Switch Actuation Level	160 mm, 35 mm, 6.299 in, 1.378 in	1.378 - 160 in
Switch Actuation Level	-	3.346 in
Switch Actuation Level	-	35 - 85 mm
Type	Liquid	Liquid
Voltage Rating	300 VDC, 300 VAC	300 VDC

SD MNT DUAL SW PNT FLTSW M12

Part	Output Configuration	Voltage Rating	Current	Operating Temperature	Type	Material - Housing & Prism	Switch Actuation Level	Switch Actuation Level	Switch Actuation Level	Minimum Liquid Specific Gravity [Min]	Output Type	Mounting Type
Sensata Technologies SSV66A35B85SPM12	SPST-NC, SPST-NO	300 VDC, 300 VAC	500 mA	120 °C	Liquid	316 Stainless Steel	1.378 in	3.346 in	35 mm, 85 mm	0.75	Switch (2) (Single Float)	Panel Mount, M16 Thread
Sensata Technologies SSV66A35B160SPM12	SPST-NC, SPST-NO	300 VDC, 300 VAC	500 mA	120 °C	Liquid	316 Stainless Steel	1.378 in, 6.299 in, 35 mm, 160 mm			0.75	Switch (2) (Single Float)	Panel Mount, M16 Thread

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 293.43

General part information

SD MNT DUAL SW PNT FLTSW M12

Technical documentation and resources
