2908044
ActivePhoenix Contact

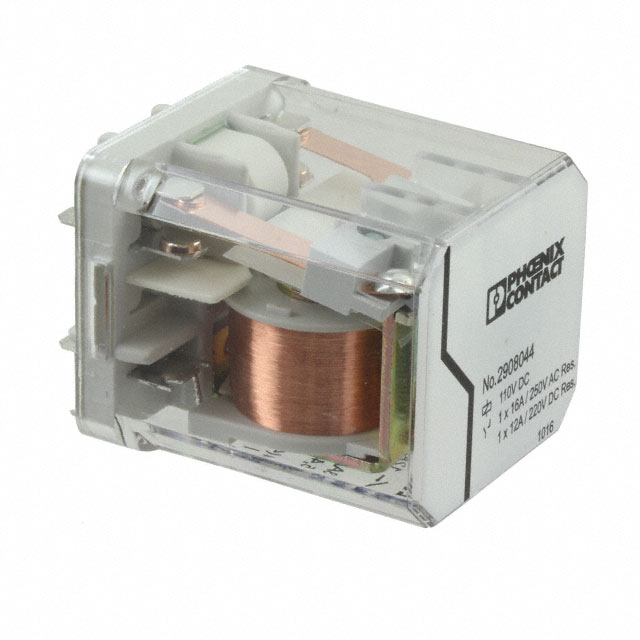

RELAY GEN PURPOSE SPST 16A 110V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2908044
ActivePhoenix Contact
RELAY GEN PURPOSE SPST 16A 110V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2908044 | 29080 Series |
|---|---|---|
| Approval Agency | EAC, EX | EAC, EX |
| Coil Current | 15 mA | 12 - 70 mA |
| Coil Resistance | 7.3 kOhms | 7.3 - 342.9 Ohms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 110 VDC | 24 - 230 VDC |
| Contact Form | SPST-NO (1 Form A) | SPST-NO (1 Form A) |
| Contact Material | Silver Nickel (AgNi) | Silver Nickel (AgNi) |
| Contact Rating (Current) | 16 A | 16 A |
| Features | Magnetic Blowout | Magnetic Blowout |
| Load - Max Switching | 5600 W, 7040 VA | 5600 - 7040 W |
| Mounting Type | Socketable | Socketable |
| Operate Time | 20 ms | 20 - 25 ms |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 15 ms | 15 - 18 ms |
| Switching Voltage | 440 VAC, 350 VDC | 350 - 440 VAC |
| Termination Style | Plug In | Plug In |
29080 Series
POWER RELAY 24VDC 16A SPST-NO(38.6X36.1X45.5)MM SOCKET
| Part | Contact Rating (Current) | Switching Voltage | Release Time | Contact Form | Coil Current | Coil Voltage | Contact Material | Mounting Type | Coil Type | Relay Type | Approval Agency | Coil Resistance | Operate Time | Features | Load - Max Switching | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2908040 | 16 A | 350 VDC, 440 VAC | 15 ms | SPST-NO (1 Form A) | 70 mA | 24 VDC | Silver Nickel (AgNi) | Socketable | Non Latching | General Purpose | EAC, EX | 342.9 Ohms | 20 ms | Magnetic Blowout | 5600 W, 7040 VA | Plug In | -40 °C | 70 °C |
Phoenix Contact 2908047 | 16 A | 350 VDC, 440 VAC | 18 ms | SPST-NO (1 Form A) | 12 mA | 230 VAC | Silver Nickel (AgNi) | Socketable | Non Latching | General Purpose | EAC, EX | 19.17 kOhms | 25 ms | Magnetic Blowout | 5600 W, 7040 VA | Plug In | -40 °C | 70 °C |
Phoenix Contact 2908044 | 16 A | 350 VDC, 440 VAC | 15 ms | SPST-NO (1 Form A) | 15 mA | 110 VDC | Silver Nickel (AgNi) | Socketable | Non Latching | General Purpose | EAC, EX | 7.3 kOhms | 20 ms | Magnetic Blowout | 5600 W, 7040 VA | Plug In | -40 °C | 70 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.15 | |
| 10 | $ 13.94 | |||
| 50 | $ 12.88 | |||
| 100 | $ 12.27 | |||
| 250 | $ 11.51 | |||
| 500 | $ 10.54 | |||
Description
General part information
29080 Series
General Purpose Relay SPST-NO (1 Form A) 110VDC Coil Socketable
