03K710-K22S3

Active

Rosenberger

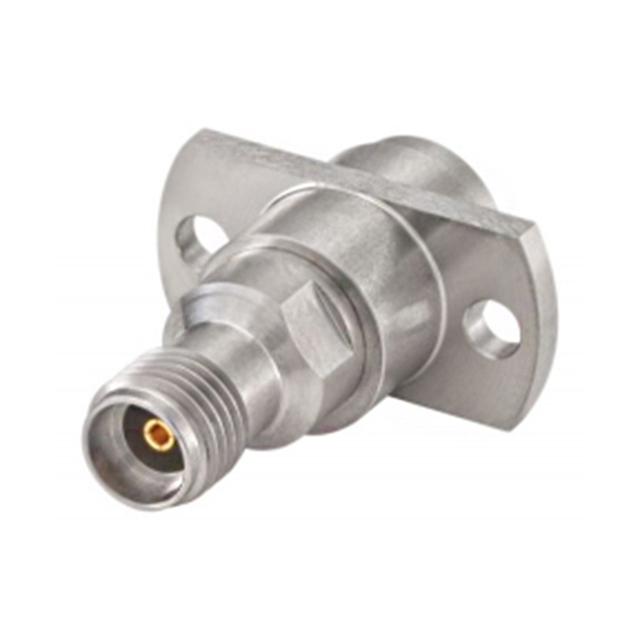

PRECISION 3.5 ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

PRECISION 3.5 ADAPTER

Technical Specifications

Parameters and characteristics for this part

PRECISION 3.5 ADAPTER

Part	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Center Gender	Mating Cycles	Body Finish	Adapter Series [Min]	Adapter Series [Max]	Center Contact Plating	Convert From (Adapter End)	Conversion Type	Insertion Loss	Style	Frequency - Max [Max]	Impedance	Center Contact Material	Body Material	Dielectric Material	Adapter Type	Convert To (Adapter End)
Rosenberger 03K710-K22S3	Snap-On, Threaded	85 °C	-40 °C	Flange	Female to Female	1000	White Bronze	RPC-3.50	RPC-SP	Gold	3.5mm Jack, Female Socket	Between Series	0.24 dB	Straight	22 GHz	50 Ohms	Beryllium Copper	Stainless Steel	Polystyrene (PS)	Jack to Jack	Female Socket, SP Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 429.94

General part information

Adapter Coaxial Connector 3.5mm Jack, Female Socket To SP Jack, Female Socket 50 Ohms
