BT14-E1V14CL000000

Active

Sifam Tinsley Instrumentation Inc

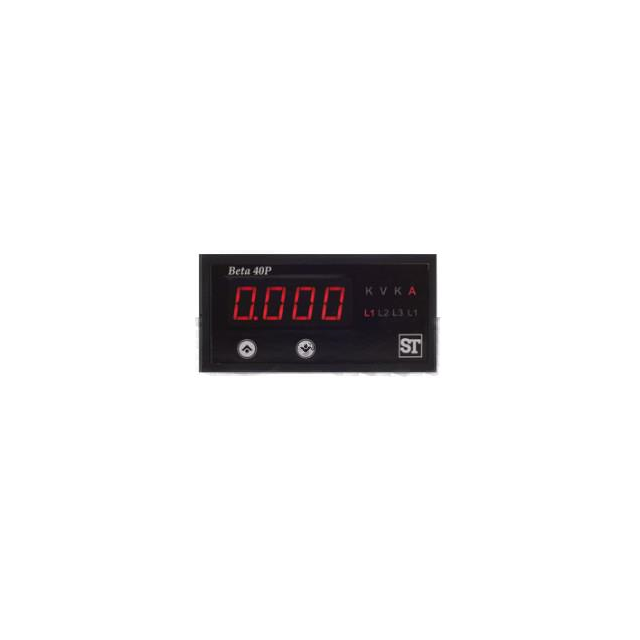

VOLTMETER 120-500V LED PANEL MT

Search across all available documentation for this part.

Active

Sifam Tinsley Instrumentation Inc

VOLTMETER 120-500V LED PANEL MT

Technical Specifications

Parameters and characteristics commom to parts in this series

AMMETER 1A 5A LED PANEL MOUNT

Part	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Display Type	Measuring Type	Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Display Characters - Height [z]	Display Characters - Height [z]	Measuring Range	Number of Characters Per Row	Ingress Protection	Measuring Range [Min]	Measuring Range [Max]
Sifam Tinsley Instrumentation Inc BT14-E1K181L000000	92.8 mm	44.1 mm	LED - Red Characters	Current	Ammeter	40 VAC/DC	300 VAC/DC	Screw Terminal	14 mm	0.551 in	1 A, 5 A	4	IP50
Sifam Tinsley Instrumentation Inc BT14-E1V14CL000000	92.8 mm	44.1 mm	LED - Red Characters	Voltage	Voltmeter	40 VAC/DC	300 VAC/DC	Screw Terminal	14 mm	0.551 in		4	IP50	120 V	500 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Retail Package	1	$ 75.00

General part information

Voltmeter LED - Red Characters Display Panel Mount
