031,AL

Active

Serpac

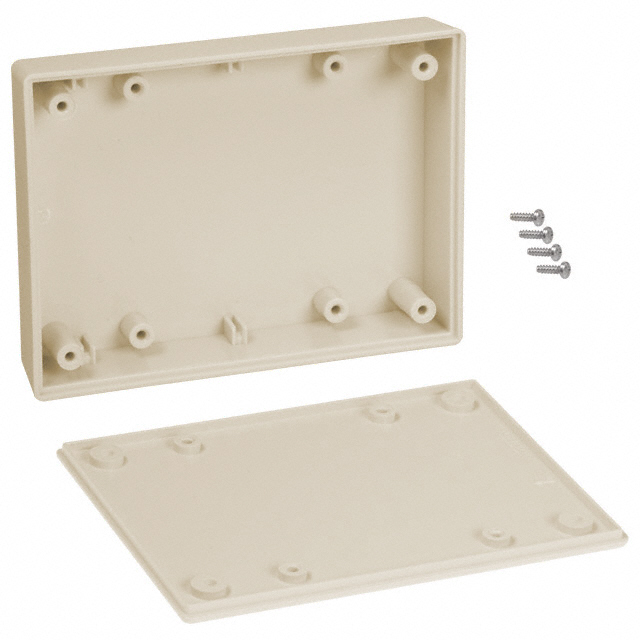

BOX ABS ALMOND 4.38"L X 3.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS ALMOND 4.38"L X 3.25"W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Almond 4.380" L x 3.250" W (111.25mm x 82.55mm) X 0.900" (22.86mm)

Technical documentation and resources

Specification	031,AL	031 Series

Area (L x W)	14.2 in²	14.2 in²
Area (L x W)	92 cm˛	92 cm˛
Color	Almond	Gray, Black, Almond
Container Type	Box	Box
Features	PCB Supports	PCB Supports
Height [z]	22.86 mm	22.86 mm
Height [z]	0.9 in	0.9 in
Material	Plastic, ABS	Plastic, ABS
Material Flammability Rating	UL94 HB	UL94 HB
Ratings	IP40, NEMA 1	IP40, NEMA 1
Thickness	2.54 mm	2.54 mm
Thickness	0.1 in	0.1 in
Weight	0.15 lbs	0.15 lbs
Weight	68.04 g	68.04 g

Part	Color	Material	Material Flammability Rating	Features	Weight	Weight	Height [z]	Height [z]	Ratings	Container Type	Thickness	Thickness	Area (L x W)	Area (L x W)
Serpac 031,GY	Gray	Plastic, ABS	UL94 HB	PCB Supports	0.15 lbs	68.04 g	22.86 mm	0.9 in	IP40, NEMA 1	Box	2.54 mm	0.1 in	14.2 in²	92 cm˛
Serpac 031,BK	Black	Plastic, ABS	UL94 HB	PCB Supports	0.15 lbs	68.04 g	22.86 mm	0.9 in	IP40, NEMA 1	Box	2.54 mm	0.1 in	14.2 in²	92 cm˛
Serpac 031,AL	Almond	Plastic, ABS	UL94 HB	PCB Supports	0.15 lbs	68.04 g	22.86 mm	0.9 in	IP40, NEMA 1	Box	2.54 mm	0.1 in	14.2 in²	92 cm˛
Serpac 031,BK-BULK	Black	Plastic, ABS	UL94 HB	PCB Supports	0.15 lbs	68.04 g	22.86 mm	0.9 in	IP40, NEMA 1	Box	2.54 mm	0.1 in	14.2 in²	92 cm˛
