EN3C2MKX

Active

Switchcraft Inc.

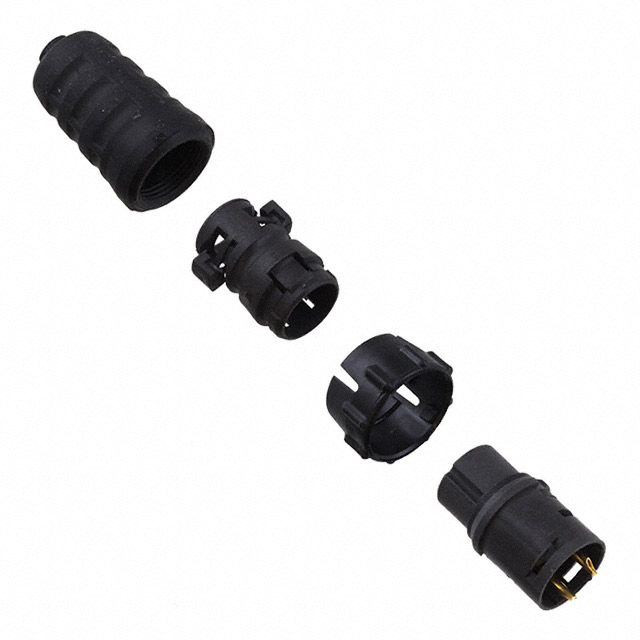

CONN PLUG MALE 2P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN3C2MKX

Active

Switchcraft Inc.

CONN PLUG MALE 2P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

EN3C2M Series

2 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3C2MKX	EN3C2M Series

	-	-
Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening [diameter]	6.73 mm, 4.06 mm	4.06 - 6.73 mm
Cable Opening [diameter]	0.265 in, 0.16 in	0.16 - 0.265 in
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	7.5 A	7.5 - 13 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Coupling Nut, Backshell	Cable Clamp, Coupling Nut, Backshell
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	2	2
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	-	Crimp
Voltage Rating	250 VAC	250 VAC

EN3C2M Series

CONN PLUG MALE 2POS GOLD CRIMP

Part	Termination	Cable Opening [diameter]	Cable Opening [diameter]	Insert Material	Current Rating (Amps)	Contact Finish - Mating	Features	Contact Material	Primary Material	Shielding	Voltage Rating	Ingress Protection	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Orientation	Color	Material Flammability Rating	Number of Positions	Fastening Type	Backshell Material, Plating	Connector Type
Switchcraft Inc. EN3C2M16CX	Crimp	4.06 mm, 6.73 mm	0.16 in, 0.265 in	Elastomer	13 A	Gold	Backshell, Cable Clamp, Coupling Nut	Copper Alloy	Plastic	Unshielded	250 VAC	IP66/IP68	General Purpose, Instrumentation, Marine, Medical	65 °C	-40 °C	Free Hanging (In-Line)	Keyed	Black	UL94 V-0	2	Bayonet Lock	Thermoplastic	Male Pins, Plug
Switchcraft Inc. EN3C2M16LX
Switchcraft Inc. EN3C2MCKX	Crimp	4.06 mm, 6.73 mm	0.16 in, 0.265 in	Elastomer	7.5 A	Gold	Backshell, Cable Clamp, Coupling Nut	Copper Alloy	Plastic	Unshielded	250 VAC	IP66/IP68	General Purpose, Instrumentation, Marine, Medical	65 °C	-40 °C	Free Hanging (In-Line)	Keyed	Black	UL94 V-0	2	Bayonet Lock	Thermoplastic	Male Pins, Plug
Switchcraft Inc. EN3C2MKX		4.06 mm, 6.73 mm	0.16 in, 0.265 in	Elastomer	7.5 A	Gold	Backshell, Cable Clamp, Coupling Nut	Copper Alloy	Plastic	Unshielded	250 VAC	IP66/IP68	General Purpose, Instrumentation, Marine, Medical	65 °C	-40 °C	Free Hanging (In-Line)	Keyed	Black	UL94 V-0	2	Bayonet Lock	Thermoplastic	Male Pins, Plug
Switchcraft Inc. EN3C2MCX	Crimp	4.06 mm, 6.73 mm	0.16 in, 0.265 in	Elastomer	7.5 A	Gold	Backshell, Cable Clamp, Coupling Nut	Copper Alloy	Plastic	Unshielded	250 VAC	IP66/IP68	General Purpose, Instrumentation, Marine, Medical	65 °C	-40 °C	Free Hanging (In-Line)	Keyed	Black	UL94 V-0	2	Bayonet Lock	Thermoplastic	Male Pins, Plug
Switchcraft Inc. EN3C2MX		4.06 mm, 6.73 mm	0.16 in, 0.265 in	Elastomer	7.5 A	Gold	Backshell, Cable Clamp, Coupling Nut	Copper Alloy	Plastic	Unshielded	250 VAC	IP66/IP68	General Purpose, Instrumentation, Marine, Medical	65 °C	-40 °C	Free Hanging (In-Line)	Keyed	Black	UL94 V-0	2	Bayonet Lock	Thermoplastic	Male Pins, Plug
