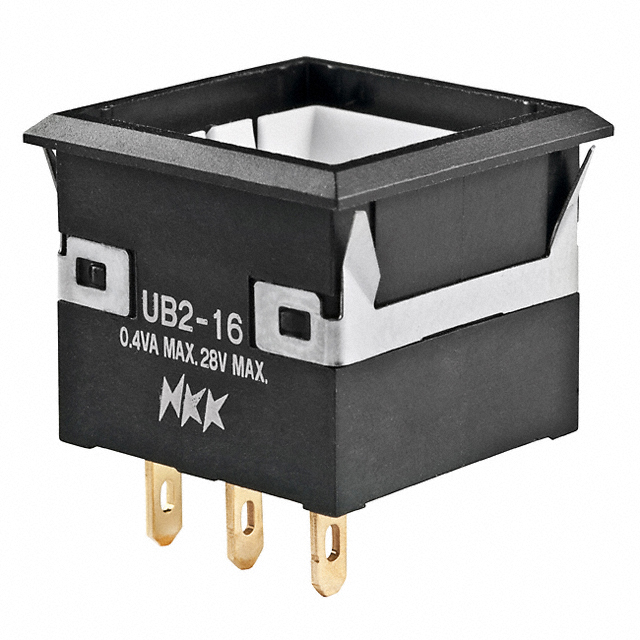

UB216KKG01N

Active

NKK Switches

SWITCH PUSH SPDT 0.4VA 28V

Deep-Dive with AI

DocumentsUB2 Indicators Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UB216KKG01N

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	200000 Cycles
Features	Sealed - Fully
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	17.4 mm
Panel Cutout Dimensions [y]	17.4 mm
Switch Function	On-On
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

UB216KK Series

Part	Termination Style	Switch Function	Actuator Type	Electrical Life	Current Rating (Amps)	Illumination Voltage (Nominal)	Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Color - Actuator/Cap	Circuit	Voltage Rating - AC	Illumination Type, Color	Voltage Rating - DC	Mechanical Life	Actuator Marking	Mounting Type
NKK Switches UB216KKW015D-1JB	Solder Lug	On-On	Button Square	10000 Cycles	5 A	2 VDC	Illuminated Standard	Sealed - Fully	50 °C	-25 °C	17.4 mm	17.4 mm	Clear	SPDT	125 V	Amber LED	30 V	200000 Cycles	No Marking	Panel Mount Snap-In
NKK Switches UB216KKG01N-5C	Solder Lug	On-On	Button Square	200000 Cycles	0.4 VA		Standard	Sealed - Fully	70 °C	-25 °C	17.4 mm	17.4 mm	Red	SPDT	28 V		28 V	200000 Cycles	No Marking	Panel Mount Snap-In
NKK Switches UB216KKG015C	Solder Lug	On-On	Plunger for Cap	200000 Cycles	0.4 VA	1.85 VDC	Illuminated Standard	Sealed - Fully	50 °C	-25 °C	17.4 mm	17.4 mm		SPDT	28 V	LED Red	28 V	200000 Cycles	No Marking	Panel Mount Snap-In
NKK Switches UB216KKG016G-1JB	Solder Lug	On-On	Button Square	200000 Cycles	0.4 VA	2.9 VDC	Illuminated Standard	Sealed - Fully	50 °C	-25 °C	17.4 mm	17.4 mm	Clear	SPDT	28 V	Blue LED	28 V	200000 Cycles	No Marking	Panel Mount Snap-In
NKK Switches UB216KKW016B-2B	Solder Lug	On-On	Button Square	10000 Cycles	5 A	3.3 VDC	Illuminated Standard	Sealed - Fully	50 °C	-25 °C	17.4 mm	17.4 mm	White	SPDT	125 V	LED White	30 V	200000 Cycles	No Marking	Panel Mount Snap-In
NKK Switches UB216KKG015C-1JB	Solder Lug	On-On	Button Square	200000 Cycles	0.4 VA	1.85 VDC	Illuminated Standard	Sealed - Fully	50 °C	-25 °C	17.4 mm	17.4 mm	Clear	SPDT	28 V	LED Red	28 V	200000 Cycles	No Marking	Panel Mount Snap-In
NKK Switches UB216KKW016CF-1JB	Solder Lug	On-On	Button Square	10000 Cycles	5 A	2.1 VDC 3.5 VDC	Illuminated Standard	Sealed - Fully	50 °C	-25 °C	17.4 mm	17.4 mm	Clear	SPDT	125 V	Green/Red LED	30 V	200000 Cycles	No Marking	Panel Mount Snap-In
NKK Switches UB216KKG015C-3JC	Solder Lug	On-On	Button Square	200000 Cycles	0.4 VA	1.85 VDC	Illuminated Standard	Sealed - Fully	50 °C	-25 °C	17.4 mm	17.4 mm	Clear (Red Filter/Diffuser)	SPDT	28 V	LED Red	28 V	200000 Cycles	No Marking	Panel Mount Snap-In
NKK Switches UB216KKW015F-2F	Solder Lug	On-On	Button Square	10000 Cycles	5 A	2.1 VDC	Illuminated Standard	Sealed - Fully	50 °C	-25 °C	17.4 mm	17.4 mm	Green	SPDT	125 V	Green LED	30 V	200000 Cycles	No Marking	Panel Mount Snap-In
NKK Switches UB216KKG01N	Solder Lug	On-On	Plunger for Cap	200000 Cycles	0.4 VA		Standard	Sealed - Fully	70 °C	-25 °C	17.4 mm	17.4 mm		SPDT	28 V		28 V	200000 Cycles	No Marking	Panel Mount Snap-In
