FEG.1B.310.CLAD52Z

Active

LEMO

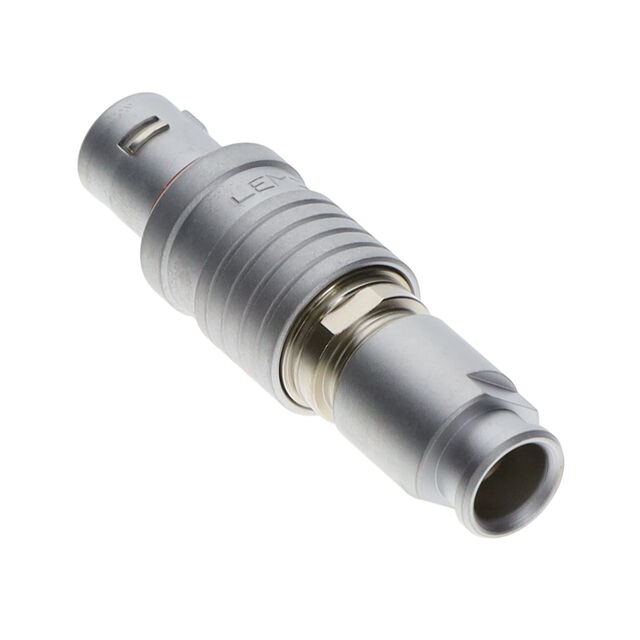

CONN PLUG MALE 10P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FEG.1B.310.CLAD52Z

Active

LEMO

CONN PLUG MALE 10P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 63.44
		10	$ 58.22
		25	$ 55.98
		50	$ 54.11
		100	$ 51.13

Description

General part information

FEG.1B Series

10 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FEG.1B.310.CLAD52Z	FEG.1B Series

Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Cable Opening	-	6.2 mm
Cable Opening	-	5.2 - 7.2 mm
Cable Opening	-	0.205 - 0.283 in
Cable Opening	-	0.244 - 0.299 in
Cable Opening	-	7.6 mm
Cable Opening	-	0.244 - 0.283 in
Cable Opening	-	6.2 - 7.2 mm
Cable Opening	-	0.122 - 0.165 in
Cable Opening [diameter]	0.205 in, 0.165 in	0.165 - 0.205 in
Cable Opening [diameter]	4.2 mm	3.1 - 4.2 mm
Cable Opening [diameter]	5.2 mm	5.2 mm
Color	Silver	Silver
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	2.5 A	2 - 15 A
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP54 - Dust Protected, Water Resistant	IP54 - Dust Protected, Water Resistant
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	10	2 - 14
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	310	302 - 314
Shielding	Shielded	Shielded
Termination	-	Crimp

FEG.1B Series

CONN PLUG MALE 8P GOLD SLDR CUP

Part	Contact Finish - Mating	Number of Positions	Shell Finish	Backshell Material, Plating	Ingress Protection	Shell Size - Insert	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Material Flammability Rating	Mounting Type	Fastening Type	Orientation	Shell Material	Current Rating (Amps)	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shielding	Insert Material	Primary Material	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Color	Cable Opening [Max] [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [diameter]	Termination
LEMO FEG.1B.308.CLAD62Z	Gold	8	Chrome	Brass, Chrome	IP54 - Dust Protected, Water Resistant	308	Male Pins, Plug	-55 °C	250 °C	Backshell	UL94 V-0	Free Hanging (In-Line)	Push-Pull	G	Brass	5 A	Brass	1 µm	39.4 µin	Shielded	Polyetheretherketone (PEEK)	Metal	6.2 mm	5.2 mm	0.205 in	0.244 in	Silver
LEMO FEG.1B.308.CLAD76	Gold	8	Chrome	Brass, Chrome	IP54 - Dust Protected, Water Resistant	308	Male Pins, Plug	-55 °C	250 °C	Backshell	UL94 V-0	Free Hanging (In-Line)	Push-Pull	G	Brass	5 A	Brass	1 µm	39.4 µin	Shielded	Polyetheretherketone (PEEK)	Metal		7.2 mm	0.283 in	0.299 in	Silver	7.6 mm
LEMO FEG.1B.302.CLAD52Z	Gold	2	Chrome	Brass, Chrome	IP54 - Dust Protected, Water Resistant	302	Male Pins, Plug	-55 °C	250 °C	Backshell	UL94 V-0	Free Hanging (In-Line)	Push-Pull	G	Brass	15 A	Brass	1 µm	39.4 µin	Shielded	Polyetheretherketone (PEEK)	Metal					Silver		0.165 in, 0.205 in	4.2 mm	5.2 mm
LEMO FEG.1B.304.CLAD52Z	Gold	4	Chrome	Brass, Chrome	IP54 - Dust Protected, Water Resistant	304	Male Pins, Plug	-55 °C	250 °C	Backshell	UL94 V-0	Free Hanging (In-Line)	Push-Pull	G	Brass	10 A	Brass	1 µm	39.4 µin	Shielded	Polyetheretherketone (PEEK)	Metal					Silver		0.165 in, 0.205 in	4.2 mm	5.2 mm
LEMO FEG.1B.305.CLAD52Z	Gold		Chrome	Brass, Chrome	IP54 - Dust Protected, Water Resistant	305	Male Pins, Plug	-55 °C	250 °C	Backshell	UL94 V-0	Free Hanging (In-Line)	Push-Pull	G	Brass	9 A	Brass	1 µm	39.4 µin	Shielded	Polyetheretherketone (PEEK)	Metal					Silver		0.165 in, 0.205 in	4.2 mm	5.2 mm
LEMO FEG.1B.310.CLAD52Z	Gold	10	Chrome	Brass, Chrome	IP54 - Dust Protected, Water Resistant	310	Male Pins, Plug	-55 °C	250 °C	Backshell	UL94 V-0	Free Hanging (In-Line)	Push-Pull	G	Brass	2.5 A	Brass	1 µm	39.4 µin	Shielded	Polyetheretherketone (PEEK)	Metal					Silver		0.165 in, 0.205 in	4.2 mm	5.2 mm
LEMO FEG.1B.314.CLAD62	Gold	14	Chrome	Brass, Chrome	IP54 - Dust Protected, Water Resistant	314	Male Pins, Plug	-55 °C	250 °C	Backshell	UL94 V-0	Free Hanging (In-Line)	Push-Pull	G	Brass	2 A	Brass	1 µm	39.4 µin	Shielded	Polyetheretherketone (PEEK)	Metal	6.2 mm	5.2 mm	0.205 in	0.244 in	Silver
LEMO FEG.1B.310.CLAD76	Gold	10	Chrome	Brass, Chrome	IP54 - Dust Protected, Water Resistant	310	Male Pins, Plug	-55 °C	250 °C	Backshell	UL94 V-0	Free Hanging (In-Line)	Push-Pull	G	Brass	2.5 A	Brass	1 µm	39.4 µin	Shielded	Polyetheretherketone (PEEK)	Metal		7.2 mm	0.283 in	0.299 in	Silver	7.6 mm
LEMO FEG.1B.314.CLAD72	Gold	14	Chrome	Brass, Chrome	IP54 - Dust Protected, Water Resistant	314	Male Pins, Plug	-55 °C	250 °C	Backshell	UL94 V-0	Free Hanging (In-Line)	Push-Pull	G	Brass	2 A	Brass	1 µm	39.4 µin	Shielded	Polyetheretherketone (PEEK)	Metal					Silver					0.244 in, 0.283 in	6.2 mm, 7.2 mm
LEMO FEG.1B.307.CYCD42	Gold	7	Chrome	Brass, Chrome	IP54 - Dust Protected, Water Resistant	307	Male Pins, Plug	-55 °C	250 °C	Backshell	UL94 V-0	Free Hanging (In-Line)	Push-Pull	G	Brass	7 A	Brass	1 µm	39.4 µin	Shielded	Polyetheretherketone (PEEK)	Metal					Silver			3.1 mm, 4.2 mm				0.122 in, 0.165 in	Crimp
