26161-100-03

Active

Orion Fans

CRD 16AWG NEMA5-15P - 320C13 10'

Search across all available documentation for this part.

Active

Orion Fans

CRD 16AWG NEMA5-15P - 320C13 10'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	26161-100-03	26161 Series

1st Connector	NEMA 5-15P	NEMA 5-15P
Approval Agency Marking	CSA, KEMA, BSI Kitemark, OVE, NEMKO, SEMKO, IMQ, CEBEC, DEMKO, NF, ESTI, T, UL, ASTA, VDE Registered, FIMKO, SAA	CSA, KEMA, BSI Kitemark, OVE, NEMKO, SEMKO, IMQ, CEBEC, DEMKO, NF, ESTI, T, UL, ASTA, VDE Registered, FIMKO, SAA
Approved Countries	Netherlands, Japan, Norway, New Zealand, United States, Sweden, Finland, Australia, Canada, United Kingdom, Europe	Netherlands, Japan, Norway, New Zealand, United States, Sweden, Finland, Australia, Canada, United Kingdom, Europe
Color	Gray	Gray
Cord Type	SJT	SJT
Current Rating (Amps)	13 A	13 A
Length	10 ft	10 - 168 in
Length	3.05 m	3.05 - 4.27 m
Number of Conductors	3	3
Operating Temperature	60 °C	60 °C
Shielding	Unshielded	Unshielded
Style	Male Pins, Female Sockets	Male Pins, Female Sockets
Voltage Rating	125 VAC	125 VAC
Wire Gauge	16 AWG	16 AWG

CRD 16AWG NEMA5-15P - 320C13 14'

Part	Approved Countries	Wire Gauge	Style	Length	Length	Color	Current Rating (Amps)	Cord Type	Shielding	Approval Agency Marking	Number of Conductors	Operating Temperature	Voltage Rating	1st Connector
Orion Fans 26161-140-03	Australia, Canada, Europe, Finland, Japan, Netherlands, New Zealand, Norway, Sweden, United Kingdom, United States	16 AWG	Female Sockets, Male Pins	168 in	4.27 m	Gray	13 A	SJT	Unshielded	ASTA, BSI Kitemark, CEBEC, CSA, DEMKO, ESTI, FIMKO, IMQ, KEMA, NEMKO, NF, OVE, SAA, SEMKO, T, UL, VDE Registered	3	60 °C	125 VAC	NEMA 5-15P
Orion Fans 26161-100-03	Australia, Canada, Europe, Finland, Japan, Netherlands, New Zealand, Norway, Sweden, United Kingdom, United States	16 AWG	Female Sockets, Male Pins	10 ft	3.05 m	Gray	13 A	SJT	Unshielded	ASTA, BSI Kitemark, CEBEC, CSA, DEMKO, ESTI, FIMKO, IMQ, KEMA, NEMKO, NF, OVE, SAA, SEMKO, T, UL, VDE Registered	3	60 °C	125 VAC	NEMA 5-15P

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

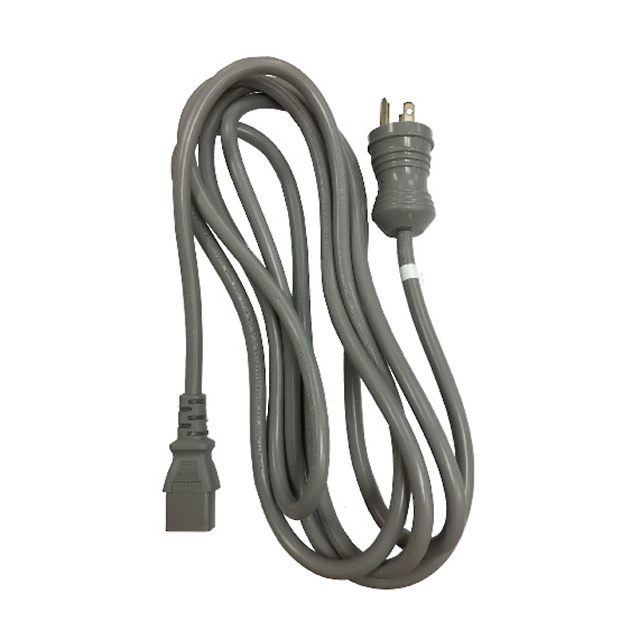

10.00' (3.05m) Power Cord Gray NEMA 5-15P To IEC 320-C13 SJT
