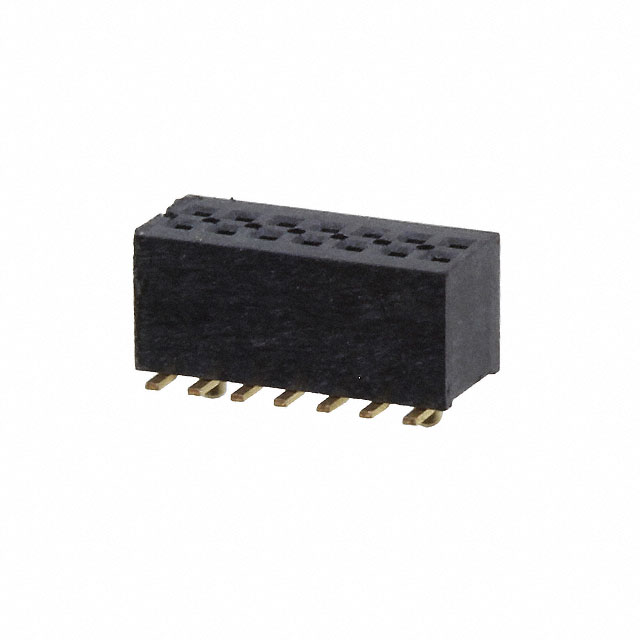

MLE-107-01-G-DV-A-K

Active

Samtec Inc.

1MM MICRO STRIPS

Deep-Dive with AI

Search across all available documentation for this part.

MLE-107-01-G-DV-A-K

Active

Samtec Inc.

1MM MICRO STRIPS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MLE-107-01-G-DV-A-K

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Beryllium Copper
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	2.9 A
Fastening Type	Push-Pull
Features	Pick and Place, Board Guide
Insulation Color	Black
Insulation Height	0.13 in
Insulation Height	3.3 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating	0.039 "
Row Spacing - Mating	1 mm
Termination	Solder
Voltage Rating	310 VAC

MLE-107 Series

Part	Voltage Rating	Connector Type	Insulation Material	Insulation Color	Fastening Type	Contact Material	Contact Shape	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Features	Termination	Number of Positions	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Contact Type	Current Rating (Amps)	Mounting Type
Samtec Inc. MLE-107-01-G-DV-A-P-TR	310 VAC	Receptacle	Liquid Crystal Polymer (LCP)	Black	Push-Pull	Beryllium Copper	Square	Gold	-55 °C	125 °C	0.039 "	1 mm	2	Board Guide Pick and Place	Solder	14	All	10 çin	0.25 çm	0.13 in	3.3 mm	0.039 in	1 mm	Female Socket	2.9 A	Surface Mount
Samtec Inc. MLE-107-01-G-DV-P	310 VAC	Receptacle	Liquid Crystal Polymer (LCP)	Black	Push-Pull	Beryllium Copper	Square	Gold	-55 °C	125 °C	0.039 "	1 mm	2	Pick and Place	Solder	14	All	10 çin	0.25 çm	0.13 in	3.3 mm	0.039 in	1 mm	Female Socket	2.9 A	Surface Mount
Samtec Inc. MLE-107-01-G-DV-A-TR	310 VAC	Receptacle	Liquid Crystal Polymer (LCP)	Black	Push-Pull	Beryllium Copper	Square	Gold	-55 °C	125 °C	0.039 "	1 mm	2	Board Guide	Solder	14	All	10 çin	0.25 çm	0.13 in	3.3 mm	0.039 in	1 mm	Female Socket	2.9 A	Surface Mount
Samtec Inc. MLE-107-01-G-DV-A-K	310 VAC	Receptacle	Liquid Crystal Polymer (LCP)	Black	Push-Pull	Beryllium Copper	Square	Gold	-55 °C	125 °C	0.039 "	1 mm	2	Board Guide Pick and Place	Solder	14	All	10 çin	0.25 çm	0.13 in	3.3 mm	0.039 in	1 mm	Female Socket	2.9 A	Surface Mount
Samtec Inc. MLE-107-01-G-DV-A-K-TR	310 VAC	Receptacle	Liquid Crystal Polymer (LCP)	Black	Push-Pull	Beryllium Copper	Square	Gold	-55 °C	125 °C	0.039 "	1 mm	2	Board Guide Pick and Place	Solder	14	All	10 çin	0.25 çm	0.13 in	3.3 mm	0.039 in	1 mm	Female Socket	2.9 A	Surface Mount
Samtec Inc. MLE-107-01-G-DV	310 VAC	Receptacle	Liquid Crystal Polymer (LCP)	Black	Push-Pull	Beryllium Copper	Square	Gold	-55 °C	125 °C	0.039 "	1 mm	2		Solder	14	All	10 çin	0.25 çm	0.13 in	3.3 mm	0.039 in	1 mm	Female Socket	2.9 A	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.26

Description

General part information

MLE-107 Series

14 Position Receptacle Connector 0.039" (1.00mm) Surface Mount Gold
