Technical Specifications
Parameters and characteristics for this part
| Specification | PI6LC58S1101ZDIEX |
|---|---|
| Differential - Input:Output [custom] | True |
| Differential - Input:Output [custom] | True |
| Divider/Multiplier | False |
| Frequency - Max [Max] | 312.5 MHz |
| Input | LVPECL, LVDS |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Crystal, CMOS |

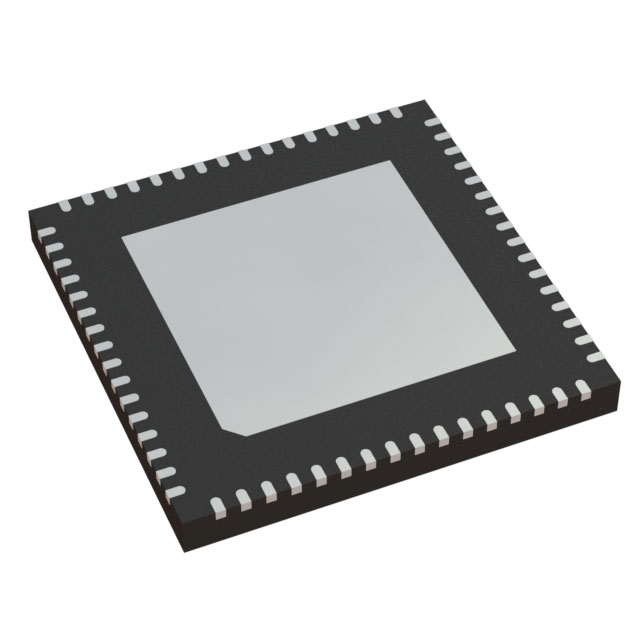

| Package / Case | 64-VFQFN Exposed Pad |
| PLL | True |
| Ratio - Input:Output [custom] | 1:11 |
| Supplier Device Package | 64-TQFN (9x9) |
| Type | Clock Generator |
| Voltage - Supply [Max] | 3.465 V |
| Voltage - Supply [Min] | 3.135 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 16.38 | |
| Digi-Reel® | 1 | $ 16.38 | ||
| Tape & Reel (TR) | 3000 | $ 8.13 | ||
Description
General part information
PI6LC58S1101 Series
The PI6LC58S1101 is very low jitter clock generator target for applications that demand extremely low phase noise, such as 10GbE, 40GbE, 100GbE, and 400GbE. It uses Diodes' proprietary LC VCO-based PLL design to achieve an optimum combination of those popular networking clock frequencies and low phase noise performance along with high power supply noise rejection.
