Q-0202H0001003M

Active

Amphenol Custom Cable

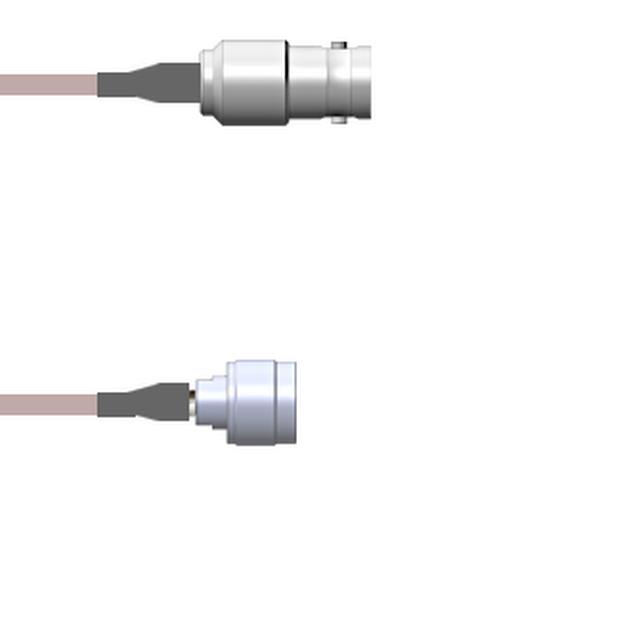

CBL ASSY BNC-NTYPE JACK-PLG 9.8'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0202H0001003M

Active

Amphenol Custom Cable

CBL ASSY BNC-NTYPE JACK-PLG 9.8'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 88.47
		25	$ 82.49
		50	$ 76.52
		100	$ 71.39
		250	$ 67.12

Description

General part information

Q-0202H0 Series

Cable Assembly Coaxial BNC to N-Type RG-178 118.1" (3.0m) 9.8'

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	Q-0202H0001003M	Q-0202H0 Series

1st Connector	BNC Jack	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Contact Gender	Female	Female
2nd Connector	N-Type Plug	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Male	Male
Cable Type	RG-178	RG-178
Color	Copper	Copper
Features	Shielded	Shielded
Frequency - Max [Max]	4 GHz	4 GHz
Length	3 m	1.5 - 1200 m
Length	118.1 in	5 - 118.1 in
Length	9.8 '	4 - 9.8 ft
Length	-	457.2 mm
Length	-	457.2 mm
Overall Impedance	50 Ohms	50 Ohms
Style	BNC to N-Type	BNC to N-Type

Q-0202H0 Series

CBL ASSY BNC-NTYPE JACK-PLUG 6'

Part	2nd Contact Gender	1st Contact Gender	Overall Impedance	1st Connector Mounting Type	Length	Length	Length	2nd Connector	Style	2nd Connector Mounting Type	Frequency - Max [Max]	Cable Type	1st Connector	Color	Features	Length [x]	Length [x]
Amphenol Custom Cable Q-0202H0001072i	Male	Female	50 Ohms	Free Hanging (In-Line)	6 ft	72 in	1.8 m	N-Type Plug	BNC to N-Type	Free Hanging (In-Line)	4 GHz	RG-178	BNC Jack	Copper	Shielded
Amphenol Custom Cable Q-0202H0001006i	Male	Female	50 Ohms	Free Hanging (In-Line)		6 in	152.4 mm	N-Type Plug	BNC to N-Type	Free Hanging (In-Line)	4 GHz	RG-178	BNC Jack	Copper	Shielded
Amphenol Custom Cable Q-0202H0001108i	Male	Female	50 Ohms	Free Hanging (In-Line)	9 ft	108 in	2.7 m	N-Type Plug	BNC to N-Type	Free Hanging (In-Line)	4 GHz	RG-178	BNC Jack	Copper	Shielded
Amphenol Custom Cable Q-0202H00011.5M	Male	Female	50 Ohms	Free Hanging (In-Line)	4.9 ft	59.1 in	1.5 m	N-Type Plug	BNC to N-Type	Free Hanging (In-Line)	4 GHz	RG-178	BNC Jack	Copper	Shielded
Amphenol Custom Cable Q-0202H0001003M	Male	Female	50 Ohms	Free Hanging (In-Line)	9.8 '	118.1 in	3 m	N-Type Plug	BNC to N-Type	Free Hanging (In-Line)	4 GHz	RG-178	BNC Jack	Copper	Shielded
Amphenol Custom Cable Q-0202H0001060i	Male	Female	50 Ohms	Free Hanging (In-Line)	5 ft	5 '	1.5 m	N-Type Plug	BNC to N-Type	Free Hanging (In-Line)	4 GHz	RG-178	BNC Jack	Copper	Shielded
Amphenol Custom Cable Q-0202H0001084i	Male	Female	50 Ohms	Free Hanging (In-Line)	7 ft	84 in	2.1 m	N-Type Plug	BNC to N-Type	Free Hanging (In-Line)	4 GHz	RG-178	BNC Jack	Copper	Shielded
Amphenol Custom Cable Q-0202H0001048i	Male	Female	50 Ohms	Free Hanging (In-Line)	4 ft	48 in	1200 mm	N-Type Plug	BNC to N-Type	Free Hanging (In-Line)	4 GHz	RG-178	BNC Jack	Copper	Shielded
Amphenol Custom Cable Q-0202H0001012i	Male	Female	50 Ohms	Free Hanging (In-Line)		12 "	304.8 mm	N-Type Plug	BNC to N-Type	Free Hanging (In-Line)	4 GHz	RG-178	BNC Jack	Copper	Shielded
Amphenol Custom Cable Q-0202H0001018i	Male	Female	50 Ohms	Free Hanging (In-Line)				N-Type Plug	BNC to N-Type	Free Hanging (In-Line)	4 GHz	RG-178	BNC Jack	Copper	Shielded	457.2 mm	457.2 mm
