2046-09-C2FLF

Active

Bourns Inc.

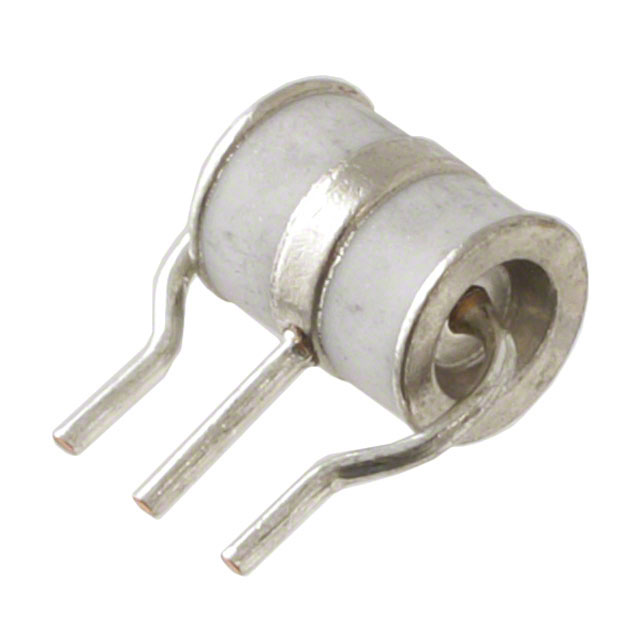

GDT 90V 10KA 3 POLE THROUGH HOLE

Search across all available documentation for this part.

Active

Bourns Inc.

GDT 90V 10KA 3 POLE THROUGH HOLE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1000	$ 1.16

General part information

Gas Discharge Tube 90 V 10000A (10kA) ±20% 3 Pole Through Hole

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	2046-09-C2FLF	2046 Series

Fail Short	True	False, True
Impulse Discharge Current (8/20µs)	10000 A	10000 A
Impulse Discharge Current (8/20µs)	10 kA	10 kA
Mounting Type	Through Hole	Through Hole, User Defined
Number of Poles	3	3
Package / Case	Axial Cylinder, 3 Lead (Radial Bend)	Axial Cylinder, 3 Lead (Radial Bend), Cylinder No Lead, 3 Terminal
Tolerance	20 %	20 %
Voltage - DC Spark Over (Nom)	90 V	90 - 600 V

GDT 600V 10KA 3 POLE TH

Part	Tolerance	Voltage - DC Spark Over (Nom)	Mounting Type	Number of Poles	Impulse Discharge Current (8/20µs)	Impulse Discharge Current (8/20µs)	Package / Case
Bourns Inc. 2046-60-C2LF	20 %	600 V	Through Hole	3	10000 A	10 kA	Axial Cylinder, 3 Lead (Radial Bend)
Bourns Inc. 2046-47-C2FLF	20 %	470 V	Through Hole	3	10000 A	10 kA	Axial Cylinder, 3 Lead (Radial Bend)
Bourns Inc. 2046-09-ALF	20 %	90 V	User Defined	3	10000 A	10 kA	Cylinder No Lead, 3 Terminal
Bourns Inc. 2046-23-ALF	20 %	230 V	User Defined	3	10000 A	10 kA	Cylinder No Lead, 3 Terminal
Bourns Inc. 2046-14-C2LF	20 %	145 V	Through Hole	3	10000 A	10 kA	Axial Cylinder, 3 Lead (Radial Bend)
Bourns Inc. 2046-42-C2FLF	20 %	420 V	Through Hole	3	10000 A	10 kA	Axial Cylinder, 3 Lead (Radial Bend)
Bourns Inc. 2046-40-ALF	20 %	400 V	User Defined	3	10000 A	10 kA	Cylinder No Lead, 3 Terminal
Bourns Inc. 2046-09-C2FLF	20 %	90 V	Through Hole	3	10000 A	10 kA	Axial Cylinder, 3 Lead (Radial Bend)
Bourns Inc. 2046-25-C2FLF	20 %	250 V	Through Hole	3	10000 A	10 kA	Axial Cylinder, 3 Lead (Radial Bend)
Bourns Inc. 2046-60-ALF	20 %	600 V	User Defined	3	10000 A	10 kA	Cylinder No Lead, 3 Terminal
