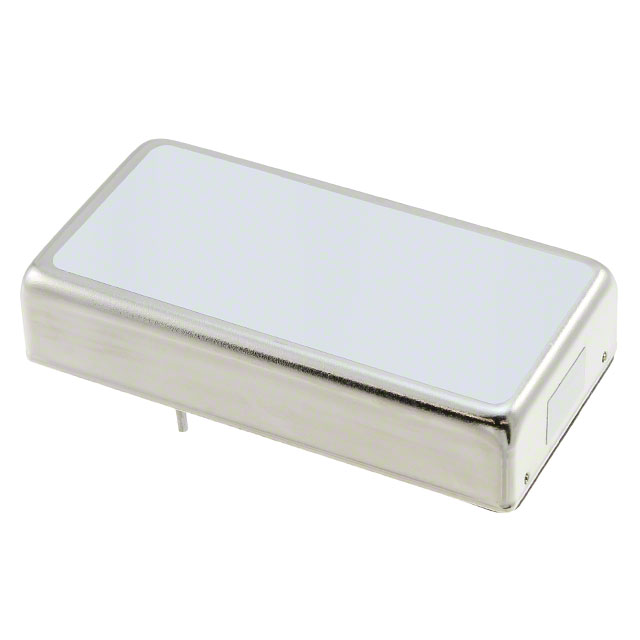

AEE01AA36-LS

Active

ARTESYN / Advanced Energy

DC DC CONVERTER +/-5V 15W

Search across all available documentation for this part.

Active

ARTESYN / Advanced Energy

DC DC CONVERTER +/-5V 15W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER +/-5V 15W

Part	Voltage - Input (Min) [Min]	Efficiency	Applications	Voltage - Output 2	Voltage - Input (Max) [Max]	Voltage - Output 1	Number of Outputs	Package / Case	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Features	Voltage - Isolation	Type	Mounting Type	Current - Output (Max)	Current - Output (Max)
ARTESYN / Advanced Energy AEE01AA18-LS	9 V	84 %	ITE (Commercial)	-5 V	36 V	5 V	2	5-DIP Module	11.3 mm	25.4 mm	25.4 mm	0.44 "	50.8 mm	2 in	-40 °C	71 °C	15 W	SCP	1.5 kV	Isolated Module	Through Hole	1.5 A	1.5 A
ARTESYN / Advanced Energy AEE01AA36-LS	18 V	84 %	ITE (Commercial)	-5 V	75 V	5 V	2	5-DIP Module	11.3 mm	25.4 mm	25.4 mm	0.44 "	50.8 mm	2 in	-40 °C	71 °C	15 W	SCP	1.5 kV	Isolated Module	Through Hole	1.5 A	1.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	130	$ 37.35

General part information

Isolated Module DC DC Converter 2 Output 5V -5V 1.5A, 1.5A 18V - 75V Input
