82020-6000-RB

Obsolete

3M (TC)

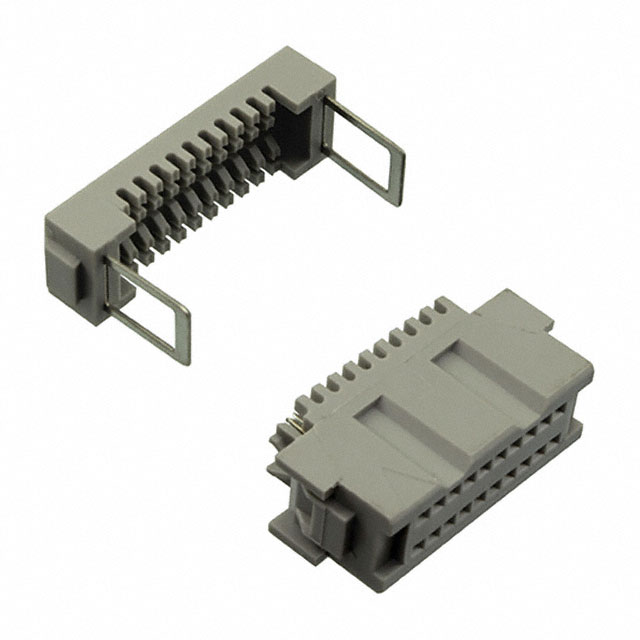

3M TRIPOLARIZED WIREMOUNT SOCKET, 820 SERIES, 82020-6000-RB

Search across all available documentation for this part.

Obsolete

3M (TC)

3M TRIPOLARIZED WIREMOUNT SOCKET, 820 SERIES, 82020-6000-RB

Technical Specifications

Parameters and characteristics for this part

Part	Cable Termination	Features	Contact Finish Thickness	Contact Finish Thickness	Color	Wire Gauge	Mounting Type	Number of Positions	Fastening Type	Row Spacing [x]	Row Spacing	Contact Type	Pitch [x]	Pitch [x]	Contact Finish	Wire Type	Connector Type	Number of Rows
3M (TC) 82020-6006RB	IDC	Feed Through Strain Relief	0.76 Ám	30 Áin	Gray	30 AWG	Free Hanging (In-Line)	20	Push-Pull	0.1 in	2.54 mm	Female Socket	0.05 in	1.27 mm	Gold	Ribbon Cable	Receptacle	2
3M (TC) 82020-6000-RB	IDC	Feed Through	0.76 Ám	30 Áin	Gray	30 AWG	Free Hanging (In-Line)	20		0.1 in	2.54 mm	Female Socket	0.05 in	1.27 mm	Gold	Ribbon Cable	Receptacle	2
3M (TC) 82020-6006	IDC	Feed Through Strain Relief	0.76 Ám	30 Áin	Gray	30 AWG	Free Hanging (In-Line)	20		0.1 in	2.54 mm	Female Socket	0.05 in	1.27 mm	Gold	Ribbon Cable	Receptacle	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Rectangular Receptacle Connector IDC Gold 30 AWG
