Z0603C101APMST

Obsolete

KEMET

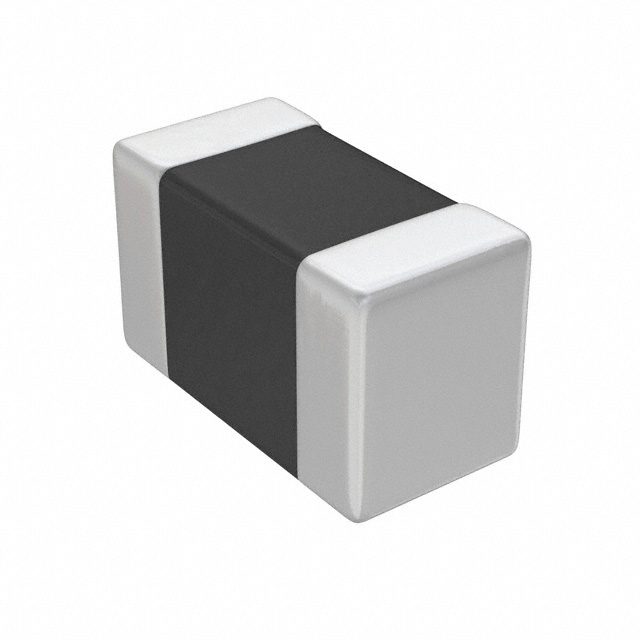

FERRITE BEAD 100 OHM 0603 1LN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Z0603C101APMST

Obsolete

KEMET

FERRITE BEAD 100 OHM 0603 1LN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.10
		10	$ 0.03

Description

General part information

Z0603C Series

100 Ohms @ 100 MHz 1 Power Line Ferrite Bead 0603 (1608 Metric) 1.7A 50mOhm

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	Z0603C101APMST	Z0603C Series

Current Rating (Max)	-	1.8 - 900 mA
DC Resistance (DCR) (Max) [Max]	50 mOhm	7 - 750 mOhm
Filter Type	Power Line	Power Line
Height (Max)	0.95 mm	0.95 mm
Height (Max)	-	0.9 mm
Height (Max)	-	1 mm
Height (Max)	-	0.039 in
Height (Max) [Max]	0.037 in	0.035 - 0.037 in
Impedance @ Frequency	100 Ohms	1 - 600 Ohms
Mounting Type	Surface Mount	Surface Mount
Number of Lines	1	1
Operating Temperature [Max]	85 °C	85 - 125 °C
Operating Temperature [Min]	-55 °C	-55 - -40 °C
Package / Case	0603 (1608 Metric)	0603 (1608 Metric)
Size / Dimension [x]	1.6 mm	1.6 mm
Size / Dimension [x]	0.063 in	0.063 in
Size / Dimension [y]	0.032 in	0.031 - 0.032 in
Size / Dimension [y]	0.8 mm	0.8 mm

Z0603C Series

FERRITE BEAD 100 OHM 0603 1LN

Part	Height (Max)	Height (Max) [Max]	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	DC Resistance (DCR) (Max) [Max]	Mounting Type	Filter Type	Number of Lines	Impedance @ Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Max) [Max]	Height (Max) [Max]	Height (Max) [Max] [z]	Height (Max) [Max] [z]
KEMET Z0603C101APMST	0.95 mm	0.037 in	0603 (1608 Metric)	1.6 mm	0.032 in	0.063 in	0.8 mm	50 mOhm	Surface Mount	Power Line	1	100 Ohms	85 °C	-55 °C
KEMET Z0603C152DSMST	0.95 mm	0.037 in	0603 (1608 Metric)	1.6 mm	0.031 in	0.063 in	0.8 mm	750 mOhm	Surface Mount		1	1.5 kOhms	125 °C	-55 °C	250 mA
KEMET Z0603C221GPWZT		0.035 in	0603 (1608 Metric)	1.6 mm	0.031 in	0.063 in	0.8 mm	170 mOhm	Surface Mount	Power Line	1	220 Ohms	125 °C	-40 °C	700 mA	0.9 mm
KEMET Z0603C601ASMST	0.95 mm	0.037 in	0603 (1608 Metric)	1.6 mm	0.031 in	0.063 in	0.8 mm	450 mOhm	Surface Mount		1	600 Ohms	125 °C	-55 °C	350 mA
KEMET Z0603C230BPWST			0603 (1608 Metric)	1.6 mm	0.031 in	0.063 in	0.8 mm	7 mOhm	Surface Mount	Power Line	1	23 Ohms	125 °C	-40 °C	4 A		1 mm	0.039 in
KEMET Z0603C102ASMST	0.95 mm	0.037 in	0603 (1608 Metric)	1.6 mm	0.032 in	0.063 in	0.8 mm	600 mOhm	Surface Mount		1	1 kOhms	125 °C	-55 °C	300 mA
KEMET Z0603C600GPWZT		0.035 in	0603 (1608 Metric)	1.6 mm	0.031 in	0.063 in	0.8 mm	45 mOhm	Surface Mount	Power Line	1	60 Ohms	125 °C	-40 °C	1.8 A	0.9 mm
KEMET Z0603C280APWST			0603 (1608 Metric)	1.6 mm	0.031 in	0.063 in	0.8 mm	7 mOhm	Surface Mount	Power Line	1	28 Ohms	125 °C	-40 °C	4 A		1 mm	0.039 in
KEMET Z0603C102BSMST	0.95 mm	0.037 in	0603 (1608 Metric)	1.6 mm	0.032 in	0.063 in	0.8 mm	700 mOhm	Surface Mount		1	1 kOhms	125 °C	-55 °C	200 mA
KEMET Z0603C181CSMST	0.95 mm	0.037 in	0603 (1608 Metric)	1.6 mm	0.031 in	0.063 in	0.8 mm	650 mOhm	Surface Mount		1	180 Ohms	125 °C	-55 °C	250 mA
