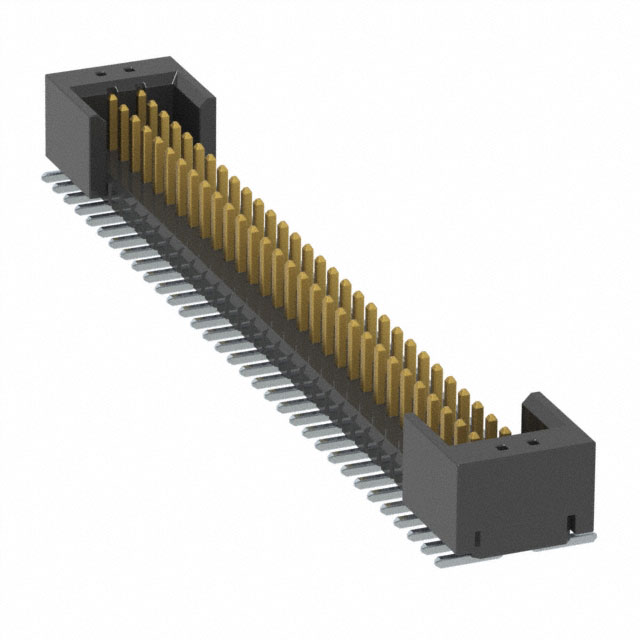

FTM-129-02-F-DV-S

Active

Samtec Inc.

CONN HEADER SMD 58POS 1MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FTM-129-02-F-DV-S

Active

Samtec Inc.

CONN HEADER SMD 58POS 1MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FTM-129-02-F-DV-S

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Mating [x]	1.9 mm
Contact Length - Mating [x]	0.075 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.8 A per Contact
Fastening Type	Push-Pull
Features	End Shrouds
Insulation Color	Black
Insulation Height	0.038 in
Insulation Height	0.97 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	58
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating	0.039 "
Row Spacing - Mating	1 mm
Shrouding	Unshrouded
Termination	Solder

FTM-129 Series

Part	Number of Positions Loaded	Contact Finish - Post	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Shrouding	Insulation Color	Contact Type	Fastening Type	Insulation Material	Features	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Number of Positions	Termination	Contact Material	Number of Rows	Contact Length - Mating [x]	Contact Length - Mating [x]
Samtec Inc. FTM-129-03-F-DV-P	All	Tin	Surface Mount	0.039 "	1 mm	Square	-55 °C	125 °C	2.8 A per Contact	Gold	0.065 in	1.65 mm	3 µin	0.076 µm	Cuttable Header	Unshrouded	Black	Male Pin	Push-Pull	Liquid Crystal Polymer (LCP)	Pick and Place	0.039 in	1 mm	0.038 in	0.97 mm	58	Solder	Phosphor Bronze	2
Samtec Inc. FTM-129-02-F-DV-S	All	Tin	Surface Mount	0.039 "	1 mm	Square	-55 °C	125 °C	2.8 A per Contact	Gold			3 µin	0.076 µm	Cuttable Header	Unshrouded	Black	Male Pin	Push-Pull	Liquid Crystal Polymer (LCP)	End Shrouds	0.039 in	1 mm	0.038 in	0.97 mm	58	Solder	Phosphor Bronze	2	1.9 mm	0.075 in
Samtec Inc. FTM-129-02-L-DV	All	Tin	Surface Mount	0.039 "	1 mm	Square	-55 °C	125 °C	2.8 A per Contact	Gold			10 çin	0.25 çm	Cuttable Header	Unshrouded	Black	Male Pin	Push-Pull	Liquid Crystal Polymer (LCP)		0.039 in	1 mm	0.038 in	0.97 mm	58	Solder	Phosphor Bronze	2	1.9 mm	0.075 in
Samtec Inc. FTM-129-03-L-DV	All	Tin	Surface Mount	0.039 "	1 mm	Square	-55 °C	125 °C	2.8 A per Contact	Gold	0.065 in	1.65 mm	10 çin	0.25 çm	Cuttable Header	Unshrouded	Black	Male Pin	Push-Pull	Liquid Crystal Polymer (LCP)		0.039 in	1 mm	0.038 in	0.97 mm	58	Solder	Phosphor Bronze	2
Samtec Inc. FTM-129-03-L-DV-S	All	Tin	Surface Mount	0.039 "	1 mm	Square	-55 °C	125 °C	2.8 A per Contact	Gold	0.065 in	1.65 mm	10 çin	0.25 çm	Cuttable Header	Unshrouded	Black	Male Pin	Push-Pull	Liquid Crystal Polymer (LCP)	End Shrouds	0.039 in	1 mm	0.038 in	0.97 mm	58	Solder	Phosphor Bronze	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	17	$ 8.79

Description

General part information

FTM-129 Series

Connector Header Surface Mount 58 position 0.039" (1.00mm)
