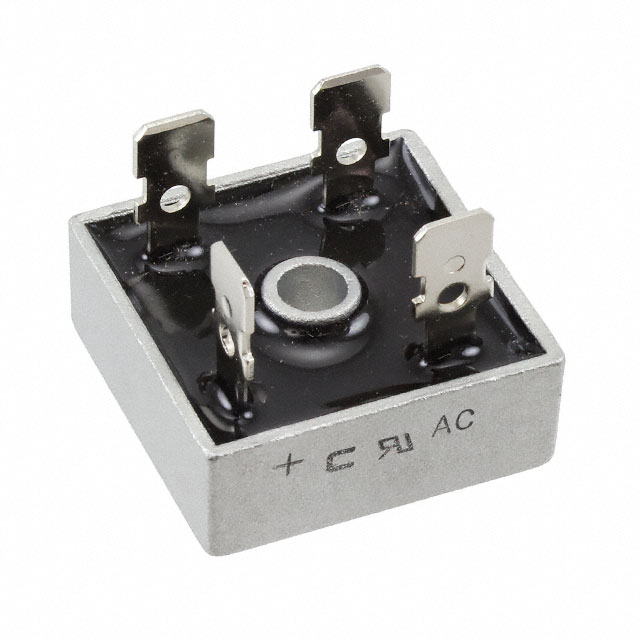

KBPC5010-G

Active

Comchip Technology

BRIDGE RECT 1PHASE 1KV 50A KBPC

Search across all available documentation for this part.

Active

Comchip Technology

BRIDGE RECT 1PHASE 1KV 50A KBPC

Technical Specifications

Parameters and characteristics for this part

Specification	KBPC5010-G

Current - Average Rectified (Io)	50 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	QC Terminal
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-Square, KBPC
Supplier Device Package	KBPC
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	1000 V

BRIDGE RECT 1PHASE 1KV 50A KBPC

Part	Technology	Mounting Type	Diode Type	Voltage - Peak Reverse (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package
Comchip Technology KBPC5010-G	Standard	QC Terminal	Single Phase	1000 V	1.1 V	50 A	5 µA	4-Square, KBPC	-55 °C	150 °C	KBPC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 1 kV QC Terminal KBPC
