1394522-3

Active

TE Connectivity Raychem Cable Protection

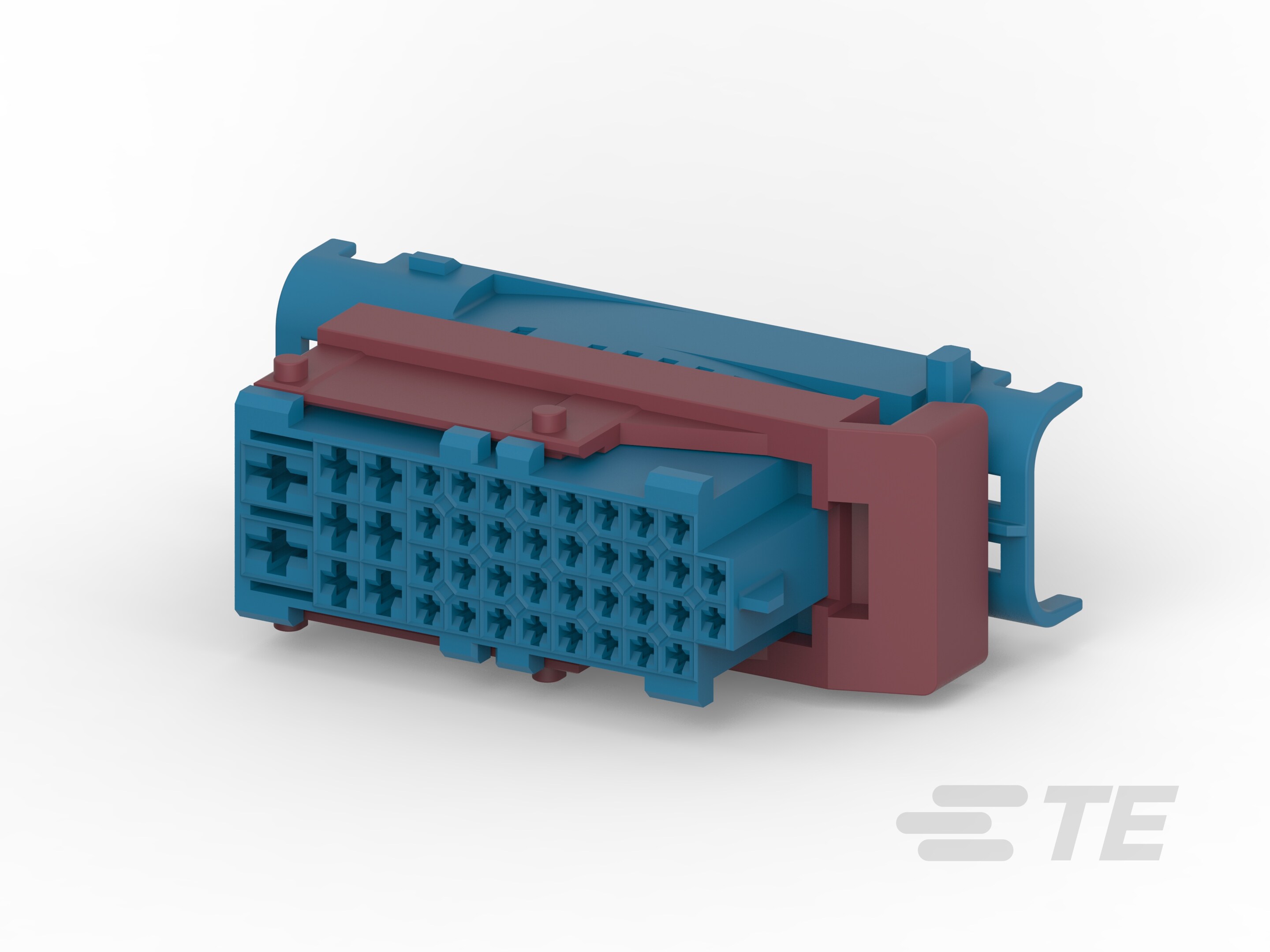

MIXED SOCKET HOUSING, 42POS. , ASSY

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

MIXED SOCKET HOUSING, 42POS. , ASSY

Technical Specifications

Parameters and characteristics for this part

Specification	1394522-3

Color	Blue
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	42
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

Part	Mounting Type	Connector Type	Number of Positions	Contact Termination	Note	Insulation Material	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Color
TE Connectivity Raychem Cable Protection 1394522-3	Free Hanging (In-Line)	Receptacle	42	Crimp	Contacts Not Included	Polybutylene Terephthalate (PBT) Glass Filled	Female Socket	85 °C	-40 °C	Blue

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

42 Rectangular Connectors - Housings Receptacle Blue
