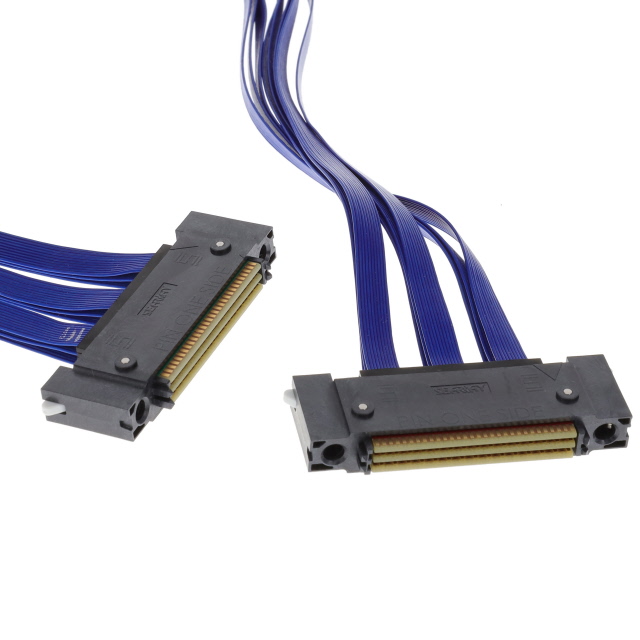

SEAC-030-06-24.0-TU-TU

Active

Samtec Inc.

CBL ASSM HDR M-M 180POS 24"

Search across all available documentation for this part.

Active

Samtec Inc.

CBL ASSM HDR M-M 180POS 24"

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Length [x]	Length [x]	Pitch - Cable [x]	Pitch - Cable	Shielding	Contact Finish	Connector Type	Number of Rows	Cable Termination	Pitch - Connector	Pitch - Connector	Color	Length	Length	Length	Length
Samtec Inc. SEAC-030-06-40.0-TU-TU	180	1.02 m	3.33 '	0.025 in	0.64 mm	Unshielded	Gold	Plug to Plug	6	IDC	0.05 in	1.27 mm	Blue Ribbon
Samtec Inc. SEAC-030-04-06.0-TU-TU-N	120			0.025 in	0.64 mm	Unshielded	Gold	Plug to Plug		IDC	0.05 in	1.27 mm	Blue Ribbon	152.4 mm	6 "	0.5 '
Samtec Inc. SEAC-030-04-40.0-TU-TU-N	120	1.02 m	3.33 '	0.025 in	0.64 mm	Unshielded	Gold	Plug to Plug		IDC	0.05 in	1.27 mm	Blue Ribbon
Samtec Inc. SEAC-030-06-40.0-TU-TU-N	180	1.02 m	3.33 '	0.025 in	0.64 mm	Unshielded	Gold	Plug to Plug	6	IDC	0.05 in	1.27 mm	Blue Ribbon
Samtec Inc. SEAC-030-08-12.0-TU-TU	240			0.025 in	0.64 mm	Unshielded	Gold	Plug to Plug	8	IDC	0.05 in	1.27 mm	Blue Ribbon	304.8 mm			1 ft
Samtec Inc. SEAC-030-06-12.0-TU-TU-N	180			0.025 in	0.64 mm	Unshielded	Gold	Plug to Plug	6	IDC	0.05 in	1.27 mm	Blue Ribbon	304.8 mm			1 ft
Samtec Inc. SEAC-030-10-40.0-TU-TU-N	300	1.02 m	3.33 '	0.025 in	0.64 mm	Unshielded	Gold	Plug to Plug	10	IDC	0.05 in	1.27 mm	Blue Ribbon
Samtec Inc. SEAC-030-06-24.0-TU-TU	180	609.6 mm	2 '	0.025 in	0.64 mm	Unshielded	Gold	Plug to Plug	6	IDC	0.05 in	1.27 mm	Blue Ribbon
Samtec Inc. SEAC-030-04-18.0-TU-TU	120	457.2 mm	1.5 ft	0.025 in	0.64 mm	Unshielded	Gold	Plug to Plug		IDC	0.05 in	1.27 mm	Blue Ribbon
Samtec Inc. SEAC-030-06-18.0-TU-TU	180	457.2 mm	1.5 ft	0.025 in	0.64 mm	Unshielded	Gold	Plug to Plug	6	IDC	0.05 in	1.27 mm	Blue Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

180 Position Cable Assembly Rectangular Plug to Plug 2.00' (609.60mm)
