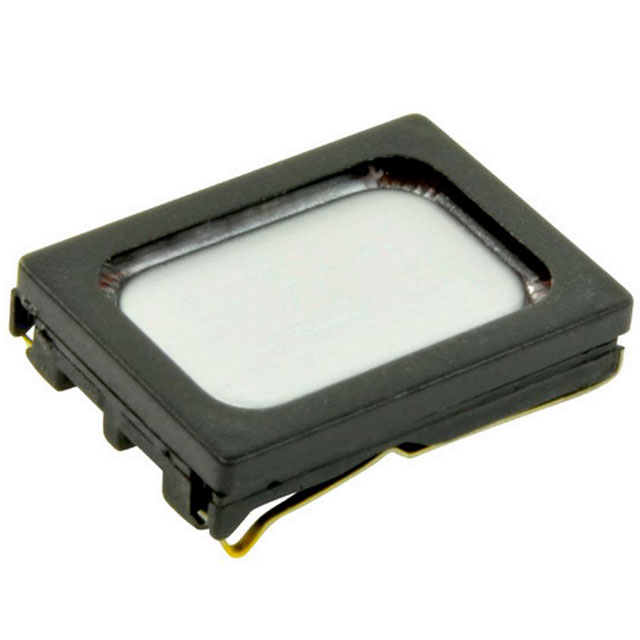

CMS-151135-078L100B-67
ActiveCUI Devices
SPEAKER 8OHM 700MW TOP PORT 91DB
Deep-Dive with AI
Search across all available documentation for this part.
CMS-151135-078L100B-67
ActiveCUI Devices
SPEAKER 8OHM 700MW TOP PORT 91DB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CMS-151135-078L100B-67 |
|---|---|
| Efficiency - dBA | 91 dBA |
| Efficiency - Testing | 700 mW, 100 mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 550 Hz |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 100 Hz |
| Height - Seated (Max) [Max] [z] | 3.5 mm |
| Height - Seated (Max) [Max] [z] | 0.138 in |
| Impedance | 8 Ohms |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Port Location | Top |
| Power - Max [Max] | 1 W |
| Power - Rated | 700 mW |
| Shape | Rectangular |
| Size / Dimension [x] | 15 mm |
| Size / Dimension [x] | 0.591 in |
| Size / Dimension [y] | 11 mm |
| Size / Dimension [y] | 0.433 in |
| Technology | Magnetic |
| Termination | Wire Leads with Connector |
| Type | General Purpose |
CMS-151 Series
| Part | Material - Magnet | Efficiency - Type | Power - Max [Max] | Port Location | Termination | Type | Material - Cone | Efficiency - Testing | Power - Rated | Operating Temperature [Min] | Operating Temperature [Max] | Shape | Frequency - Self Resonant | Efficiency - dBA | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Impedance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Technology | Frequency Range [Max] | Frequency Range [Min] | Ingress Protection | Efficiency - Testing | Height - Seated (Max) | Height - Seated (Max) [Max] | Distortion Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CUI Devices | Nd-Fe-B | Sound Pressure Level (SPL) | 1 W | Top | Wire Leads with Connector | General Purpose | Polyester Polyethylene Terephthalate (PET) | 100 mm 700 mW | 700 mW | -20 C | 70 °C | Rectangular | 700 Hz | 91 dBA | 11 mm | 0.433 in | 15 mm | 0.591 in | 8 Ohms | 2.5 mm | 0.098 in | Magnetic | 20 kHz | 100 Hz | |||||
CUI Devices | Nd-Fe-B | Sound Pressure Level (SPL) | 1 W | Top | Spring Type | General Purpose | Polyester Polyethylene Terephthalate (PET) | 100 mm 700 mW | 700 mW | Rectangular | 600 Hz | 92 dBA | 11 mm | 0.433 in | 15 mm | 0.591 in | 6 Ohms | 3.5 mm | 0.138 in | Magnetic | 20 kHz | 100 Hz | IP67 - Dust Tight Waterproof | ||||||
CUI Devices | Nd-Fe-B | Sound Pressure Level (SPL) | 1 W | Top | Spring Type | Low Profile | Polyester Polyethylene Terephthalate (PET) | 0.8 W | Rectangular | 550 Hz | 90.5 dBA | 11 mm | 0.433 in | 15 mm | 0.591 in | 8 Ohms | 2.5 mm | 0.098 in | Magnetic | 10 kHz | 440 Hz | 800mW/100mm | |||||||
CUI Devices | Nd-Fe-B | Sound Pressure Level (SPL) | 1 W | Top | Spring Type | General Purpose | Polyester Polyethylene Terephthalate (PET) | 100 mm 700 mW | 700 mW | Rectangular | 700 Hz | 91 dBA | 11 mm | 0.433 in | 15 mm | 0.591 in | 8 Ohms | Magnetic | 20 kHz | 100 Hz | 3 mm | 0.118 in | |||||||
CUI Devices | Nd-Fe-B | Sound Pressure Level (SPL) | 1 W | Top | Solder Pads | General Purpose | Polyetheretherketone (PEEK) | 100 mm 700 mW | 700 mW | -20 C | 70 °C | Rectangular | 600 Hz | 93 dBA | 11 mm | 0.433 in | 15 mm | 0.591 in | 6 Ohms | Magnetic | 20 kHz | 100 Hz | 3 mm | 0.118 in | 10 % 15 % | ||||
CUI Devices | Nd-Fe-B | Sound Pressure Level (SPL) | 1 W | Top | Wire Leads with Connector | General Purpose | Polyester Polyethylene Terephthalate (PET) | 100 mm 700 mW | 700 mW | -20 C | 70 °C | Rectangular | 550 Hz | 92.5 dBA | 11 mm | 0.433 in | 15 mm | 0.591 in | 6 Ohms | 2.5 mm | 0.098 in | Magnetic | 20 kHz | 100 Hz | |||||
CUI Devices | Nd-Fe-B | Sound Pressure Level (SPL) | 1 W | Top | Wire Leads with Connector | General Purpose | Polyester Polyethylene Terephthalate (PET) | 100 mm 700 mW | 700 mW | -20 C | 70 °C | Rectangular | 700 Hz | 92 dBA | 11 mm | 0.433 in | 15 mm | 0.591 in | 6 Ohms | Magnetic | 20 kHz | 100 Hz | 3 mm | 0.118 in | |||||
CUI Devices | Nd-Fe-B | Sound Pressure Level (SPL) | 1 W | Top | Wire Leads with Connector | General Purpose | Polyester Polyethylene Terephthalate (PET) | 100 mm 700 mW | 700 mW | -20 C | 70 °C | Rectangular | 550 Hz | 91 dBA | 11 mm | 0.433 in | 15 mm | 0.591 in | 8 Ohms | 3.5 mm | 0.138 in | Magnetic | 20 kHz | 100 Hz | |||||
CUI Devices | Nd-Fe-B | Sound Pressure Level (SPL) | 1 W | Top | Wire Leads with Connector | General Purpose | Polyester Polyethylene Terephthalate (PET) | 100 mm 700 mW | 700 mW | -20 C | 70 °C | Rectangular | 550 Hz | 92.5 dBA | 11 mm | 0.433 in | 15 mm | 0.591 in | 6 Ohms | 2.5 mm | 0.098 in | Magnetic | 20 kHz | 100 Hz | |||||
CUI Devices | Nd-Fe-B | Sound Pressure Level (SPL) | 1 W | Top | Wire Leads with Connector | General Purpose | Polyester Polyethylene Terephthalate (PET) | 100 mm 700 mW | 700 mW | -20 C | 70 °C | Rectangular | 550 Hz | 91 dBA | 11 mm | 0.433 in | 15 mm | 0.591 in | 8 Ohms | 3.5 mm | 0.138 in | Magnetic | 20 kHz | 100 Hz | IP67 - Dust Tight Waterproof |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.67 | |
| 10 | $ 1.38 | |||
| 25 | $ 1.28 | |||
| 40 | $ 1.27 | |||
Description
General part information
CMS-151 Series
8 Ohms General Purpose Speaker 700 mW 100 Hz ~ 20 kHz Top Rectangular
