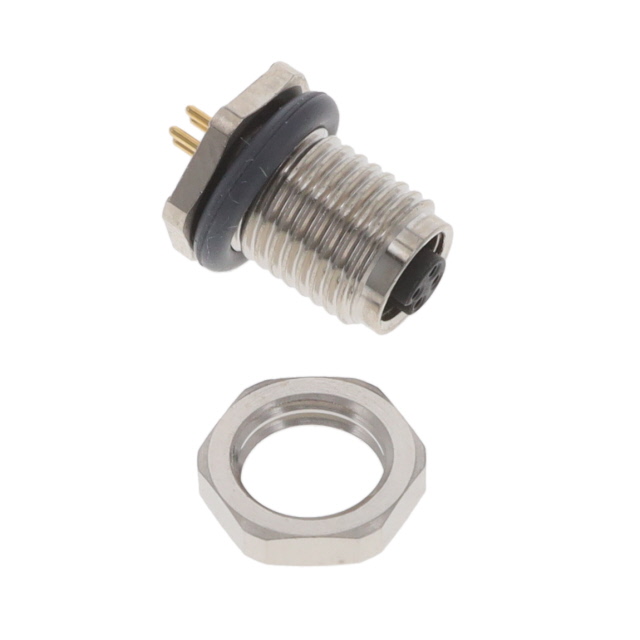

M5-04PFFP-SF7001
ActiveAmphenol LTW
M5 PANEL CONN 4P FF SCREW PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M5-04PFFP-SF7001
ActiveAmphenol LTW
M5 PANEL CONN 4P FF SCREW PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M5-04PFFP-SF7001 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Ingress Protection | IPX7 - Waterproof |
| Insert Material | Thermoplastic |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 4 |
| Orientation | Keyed |
| Shell Material | Metal |
| Shell Size - Insert | M5-4 |
| Shielding | Shielded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 17.43 | |
| 10 | $ 15.11 | |||
| 25 | $ 14.32 | |||
| 50 | $ 14.11 | |||
| 100 | $ 12.45 | |||
| 250 | $ 11.62 | |||
| 500 | $ 11.37 | |||
Description
General part information
M5-04PFFP Series
4 Position Circular Connector Receptacle, Female Sockets Solder
