QS725420A-30TF
ActiveQuality Semiconductor

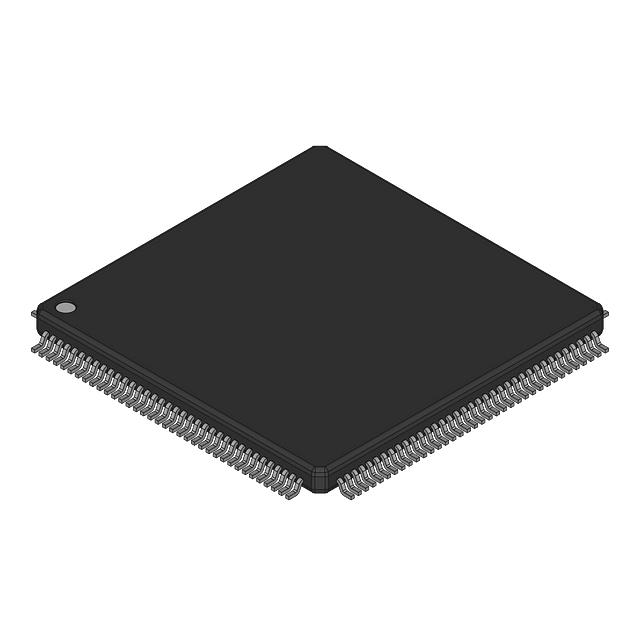

IC FIFO SYNC 512X36 20NS 144QFP
Deep-Dive with AI
Search across all available documentation for this part.
QS725420A-30TF
ActiveQuality Semiconductor
IC FIFO SYNC 512X36 20NS 144QFP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | QS725420A-30TF | QS725420A Series |
|---|---|---|
| Access Time | 20 ns | 12.8 - 20 ns |
| Bus Directional | Bi-Directional | Bi-Directional |
| Function | Synchronous | Synchronous |
| FWFT Support | False | False |
| Memory Size | 18 K | 18 K |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Package / Case | 144-QFP | 144-QFP, 132-QFP |
| Programmable Flags Support | True | True |
| Retransmit Capability | True | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 8 | $ 38.13 | |
| 9 | $ 36.04 | |||
QS725420A Series
IC FIFO SYNC 512X36 144QFP
| Part | Retransmit Capability | Mounting Type | Function | Access Time | FWFT Support | Programmable Flags Support | Bus Directional | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Memory Size |
|---|---|---|---|---|---|---|---|---|---|---|---|
Quality Semiconductor QS725420A-20TF | Surface Mount | Synchronous | 12.8 ns | Bi-Directional | 144-QFP | 70 °C | 0 °C | 18 K | |||
Quality Semiconductor QS725420A-25PF | Surface Mount | Synchronous | 16 ns | Bi-Directional | 132-QFP | 70 °C | 0 °C | 18 K | |||
Quality Semiconductor QS725420A-25TF | Surface Mount | Synchronous | 16 ns | Bi-Directional | 144-QFP | 70 °C | 0 °C | 18 K | |||
Quality Semiconductor QS725420A-30TF | Surface Mount | Synchronous | 20 ns | Bi-Directional | 144-QFP | 70 °C | 0 °C | 18 K | |||
Quality Semiconductor QS725420A-20PF | Surface Mount | Synchronous | 12.8 ns | Bi-Directional | 132-QFP | 70 °C | 0 °C | 18 K | |||
Quality Semiconductor QS725420A-30PF | Surface Mount | Synchronous | 20 ns | Bi-Directional | 132-QFP | 70 °C | 0 °C | 18 K |
Description
General part information
QS725420A Series
Synchronous FIFO 18K (512 x 36) Bi-Directional 20ns
Documents
Technical documentation and resources
No documents available
