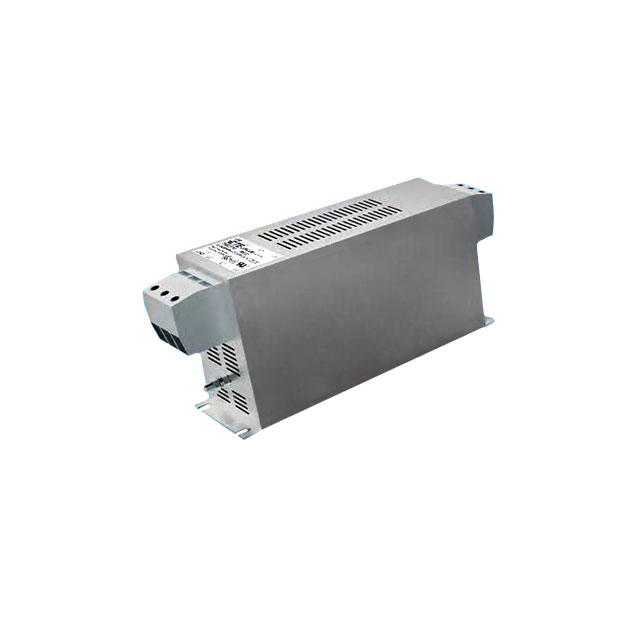

100BCF10R

Active

TE Connectivity Corcom Filters

LINE FILTER 100A CHASSIS MOUNT

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

LINE FILTER 100A CHASSIS MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	100BCF10R

Applications	General Purpose
Approval Agency	VDE, CSA, UR
Configuration	Two Stage
Current	100 A
Filter Type	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Inductance	800 µH
Mounting Type	Chassis Mount
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Termination Style	Terminal Block
Voltage - Rated AC (Phase to Phase)	480 V

LINE FILTER 100A CHASSIS MOUNT

Part	Applications	Termination Style	Current	Voltage - Rated AC (Phase to Phase)	Mounting Type	Filter Type	Approval Agency	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Frequency - Operating [Max]	Frequency - Operating [Min]	Inductance	Configuration
TE Connectivity Corcom Filters 100BCF10R	General Purpose	Terminal Block	100 A	480 V	Chassis Mount	Three Phase (Delta)	CSA, UR, VDE	-10 °C	50 °C	60 Hz	50 Hz	800 µH	Two Stage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Three Phase (Delta) EMC/EMI Line Filter 100 A 50/60Hz Two Stage Terminal Block
