LTM4675EY#PBF
ActiveDUAL 9A OR SINGLE 18A ΜMODULE REGULATOR WITH DIGITAL POWER SYSTEM MANAGEMENT
Deep-Dive with AI
Search across all available documentation for this part.
LTM4675EY#PBF
ActiveDUAL 9A OR SINGLE 18A ΜMODULE REGULATOR WITH DIGITAL POWER SYSTEM MANAGEMENT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LTM4675EY#PBF |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 9 A |
| Current - Output (Max) | 9 A |
| Features | OVP, UVLO, SCP, OCP, OTP |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |

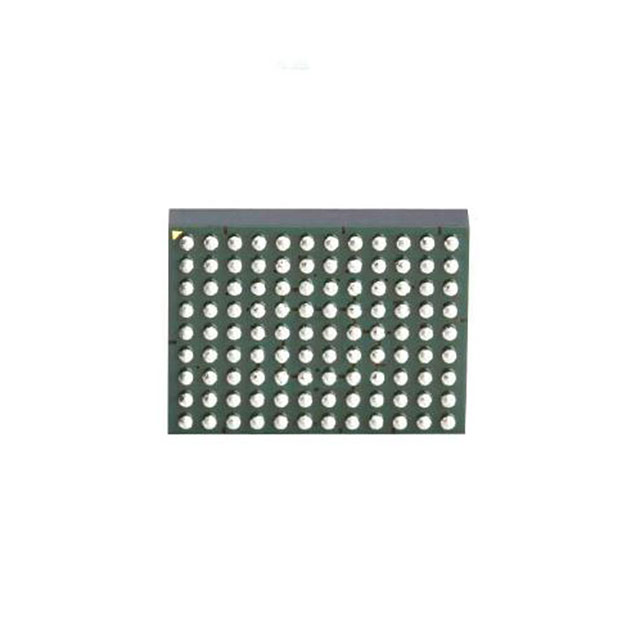

| Package / Case | 108-BBGA Module |
| Size / Dimension [x] | 0.63 " |
| Size / Dimension [x] | 16 mm |
| Size / Dimension [y] | 0.47 " |
| Size / Dimension [y] | 12 mm |
| Size / Dimension [z] | 0.14 " |
| Size / Dimension [z] | 3.5 mm |
| Supplier Device Package | 108-BGA (16x11.9) |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 17 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output 1 [Max] | 5.5 V |
| Voltage - Output 1 [Min] | 0.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 47.77 | |
| 5 | $ 46.00 | |||
| 10 | $ 45.25 | |||
| 25 | $ 44.28 | |||
| 50 | $ 43.56 | |||
| 112 | $ 42.73 | |||
Description
General part information
LTM4675 Series
The LTM4675 is a dual 9A or single 18A step-down μModule®(micromodule) DC/DC regulator with 40ms turn-on time. It features remote configurability and telemetry-monitoring of power management parameters over PMBus—an open standard I2C-based digital interface protocol. The LTM4675 is comprised of fast analog control loops, precision mixed-signal circuitry, EEPROM, power MOSFETs, inductors and supporting components.The LTM4675’s 2-wire serial interface allows outputs to be margined, tuned and ramped up and down at programmable slew rates with sequencing delay times. Input and output currents and voltages, output power, temperatures, uptime and peak values are readable. Custom configuration of the EEPROM contents is not required. At start-up, output voltages, switching frequency, and channel phase angle assignments can be set by pin-strapping resistors. The LTpowerPlay®GUI and DC1613 USB-to-PMBus converter and demo kits are available.The LTM4675 is offered in a 16mm × 11.9mm × 3.51mm BGA package available with SnPb or RoHS compliant terminal finish.APPLICATIONSSystem Optimization in Prototype and Production
