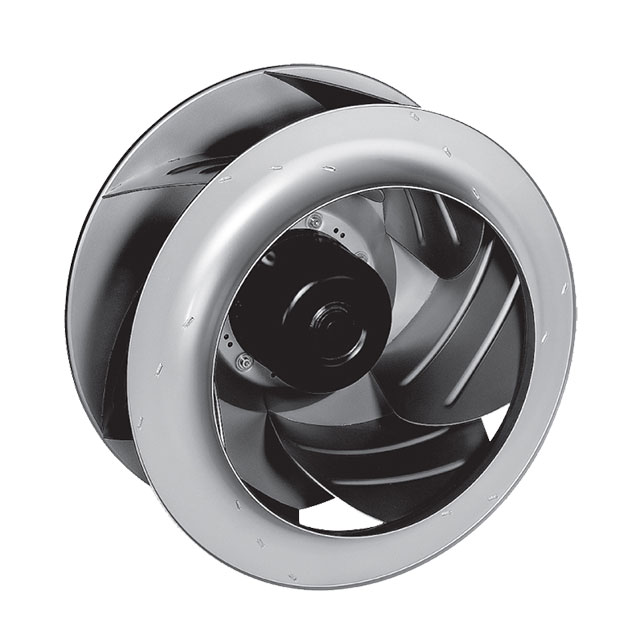

R3G630-AC05-61F

Active

ebm-papst Inc.

FAN BLOWER CENTRIFUGAL

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN BLOWER CENTRIFUGAL

Technical Specifications

Parameters and characteristics for this part

Specification	R3G630-AC05-61F

Air Flow	312.2 m³/min
Air Flow	11150 CFM
Approval Agency	UL
Current Rating (Amps)	5.4 A
Fan Type	Motorized Impellers
Features	Electronic Commutation (EC)
Ingress Protection	IP54 - Dust Protected, Water Resistant
Material - Blade	Aluminum
Material - Frame	Aluminum
Operating Temperature [Max]	50 °C
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	4000 W
RPM	1370 RPM
Size / Dimension	Round
Size / Dimension [diameter]	635 mm
Voltage - Rated	480 VAC
Voltage Range [Max]	480 VAC
Voltage Range [Min]	380 VAC
Weight	85 lbs
Weight	38.6 kg
Width [x]	424 mm

Part	Power (Watts)	Approval Agency	Features	Size / Dimension [diameter]	Size / Dimension	Voltage Range [Max]	Voltage Range [Min]	Width [x]	Material - Blade	Fan Type	Air Flow	Air Flow	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Frame	Voltage - Rated	RPM	Weight	Weight	Current Rating (Amps)
ebm-papst Inc. R3G630-AC05-61F	4000 W	UL	Electronic Commutation (EC)	635 mm	Round	480 VAC	380 VAC	424 mm	Aluminum	Motorized Impellers	312.2 m³/min	11150 CFM	IP54 - Dust Protected Water Resistant	50 °C	-25 °C	-25 °C	50 °C	Aluminum	480 VAC	1370 RPM	85 lbs	38.6 kg	5.4 A
