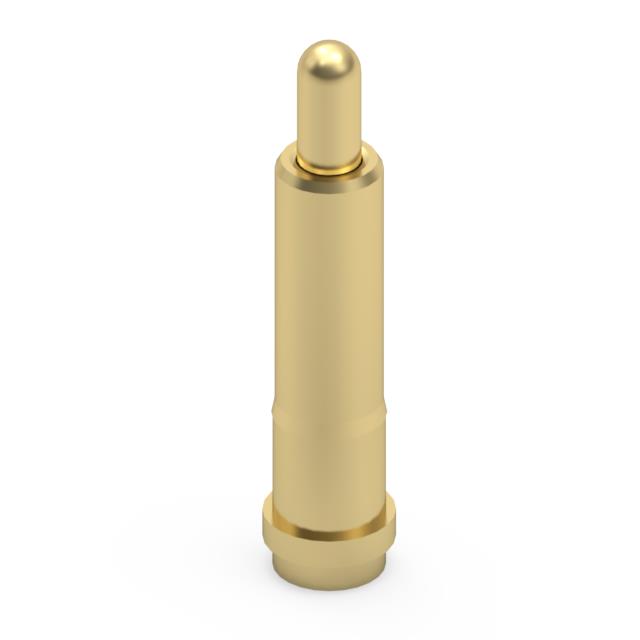

0911-0-15-20-86-14-11-0
ActiveMill-Max Manufacturing Corp.
CONTACT SPRING LOADED SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0911-0-15-20-86-14-11-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Current Rating (Amps) | 5.2 A |
| Mating Cycles | 1000000 |
| Maximum Working Height [Max] | 7.49 mm |
| Maximum Working Height [Max] | 0.295 in |
| Minimum Working Height [Min] | 6.1 mm |
| Minimum Working Height [Min] | 0.24 in |
| Mounting Type | Surface Mount |
| Operating Force - Initial | 25 gf |
| Operating Force - Mid Compression | 100 gf |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pad Layout Dimension [diameter] | 0.066 in |
| Pad Layout Dimension [diameter] | 1.68 mm |
| Plunger Size [diameter] | 0.81 mm |
| Plunger Size [diameter] | 0.032 in |
| Recommended Working Height | 6.8 mm |
| Recommended Working Height | 0.268 in |
