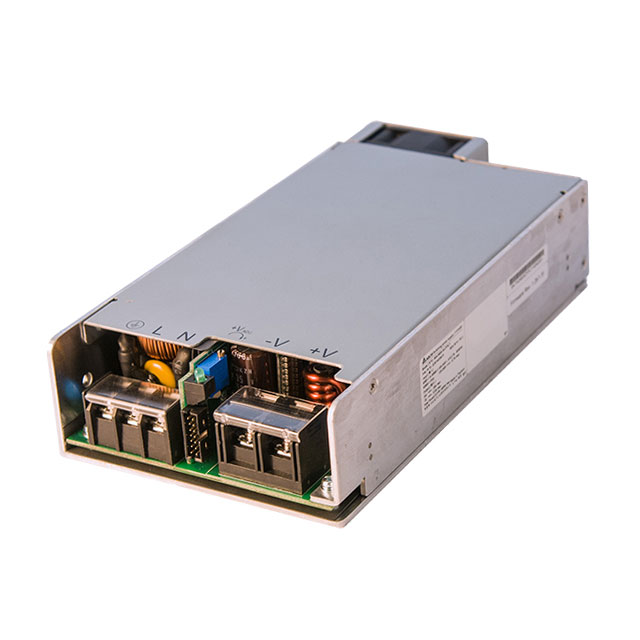

IMA-S600-48-ZYPLI
ActiveDelta Electronics
AC/DC CONVERTER 48V 600W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IMA-S600-48-ZYPLI
ActiveDelta Electronics
AC/DC CONVERTER 48V 600W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IMA-S600-48-ZYPLI |
|---|---|
| Applications | ITE (Commercial), Medical |
| Current - Output 1 | 12.5 A |
| Efficiency | 94 % |
| Features | Standby Output, Remote On/Off, Remote Sense, DC Input Capable, Load Sharing, Universal Input, Adjustable Output, PFC, PMBus™ |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 600 W |
| Size / Dimension [x] | 177.8 mm |
| Size / Dimension [x] | 7 " |
| Size / Dimension [y] | 101.6 mm |
| Size / Dimension [y] | 4 " |
| Size / Dimension [z] | 1.6 " |
| Size / Dimension [z] | 40.6 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 300 VDC, 275 VAC |
| Voltage - Input [Min] | 80 VAC, 120 VDC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 206.02 | |
| 5 | $ 194.09 | |||
| 10 | $ 189.17 | |||
| 25 | $ 182.85 | |||
| 50 | $ 178.21 | |||
Description
General part information
IMA-S600 Series
Enclosed AC DC Converters 1 Output 48V 80 ~ 275 VAC, 120 ~ 300 VDC Input
