RA1-1A-DC-2-B

Active

Switch Components

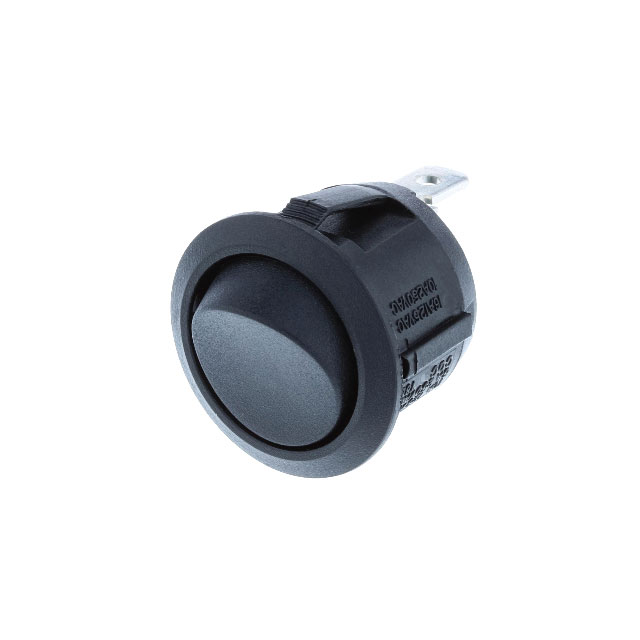

SWITCH ROCKER SPST 10A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RA1-1A-DC-2-B

Active

Switch Components

SWITCH ROCKER SPST 10A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.49
		10	$ 1.42
		25	$ 1.39
		50	$ 1.36
		100	$ 1.28
		250	$ 1.17
		500	$ 0.89
		1000	$ 0.81

Description

General part information

RA1-1A Series

Rocker Switch SPST 16 (AC), 20 (DC) 125 V Panel Mount, Snap-In

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RA1-1A-DC-2-B	RA1-1A Series

Actuator Marking	No Marking	Vertical, ON OFF, No Marking, Dot, O -
Actuator Type	Round	Round, Round - Illuminated
Approval Agency	cURus, ENEC	cURus, ENEC
Circuit	SPST	SPST
Color - Actuator/Cap	Black	Black, Green, Amber, Red, White
Current Rating (Amps)	20 A, 16 A	10 - 20 A
Electrical Life	6000 Cycles	6000 Cycles
Illumination Type, Color	-	LED, Green, Amber
Illumination Voltage (Nominal)	-	14 VDC
Ingress Protection	-	IP40
Mechanical Life	10000 Steps	10000 Steps
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	20.2 mm	20.2 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	14 V	14 V

RA1-1A Series

SWITCH ROCKER SPST 10A 125V

Part	Current Rating (Amps)	Mounting Type	Voltage Rating - AC	Circuit	Termination Style	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Switch Function	Color - Actuator/Cap	Actuator Marking	Approval Agency	Mechanical Life	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Illumination Type, Color	Illumination Voltage (Nominal)	Ingress Protection
Switch Components RA1-1A-DC-2-B-2	16 A, 20 A	Panel Mount, Snap-In	125 V	SPST	Quick Connect - 0.187" (4.7mm)	Round	-25 °C	85 °C	6000 Cycles	On-Off	Black	ON OFF, Vertical	cURus, ENEC	10000 Steps	14 V	20.2 mm
Switch Components RA1-1A-DC-2-GL	20 A	Panel Mount, Snap-In		SPST	Quick Connect - 0.187" (4.7mm)	Round - Illuminated	-25 °C	85 °C	6000 Cycles	On-Off	Green	No Marking	cURus, ENEC	10000 Steps	14 V	20.2 mm	Green, LED	14 VDC
Switch Components RA1-1A-AC-2-B-2	10 A	Panel Mount, Snap-In		SPST	Quick Connect - 0.187" (4.7mm)	Round	-25 °C	85 °C		On-Off	Black	ON OFF, Vertical	cURus, ENEC			20.2 mm			IP40
Switch Components RA1-1A-DC-2-AL	20 A	Panel Mount, Snap-In		SPST	Quick Connect - 0.187" (4.7mm)	Round - Illuminated	-25 °C	85 °C	6000 Cycles	On-Off	Amber	No Marking	cURus, ENEC	10000 Steps	14 V	20.2 mm	Amber, LED	14 VDC
Switch Components RA1-1A-DC-2-B-3	16 A, 20 A	Panel Mount, Snap-In	125 V	SPST	Quick Connect - 0.187" (4.7mm)	Round	-25 °C	85 °C	6000 Cycles	On-Off	Black	Dot	cURus, ENEC	10000 Steps	14 V	20.2 mm
Switch Components RA1-1A-DC-2-R	16 A, 20 A	Panel Mount, Snap-In	125 V	SPST	Quick Connect - 0.187" (4.7mm)	Round	-25 °C	85 °C	6000 Cycles	On-Off	Black, Red	No Marking	cURus, ENEC	10000 Steps	14 V	20.2 mm
Switch Components RA1-1A-DC-2-B	16 A, 20 A	Panel Mount, Snap-In	125 V	SPST	Quick Connect - 0.187" (4.7mm)	Round	-25 °C	85 °C	6000 Cycles	On-Off	Black	No Marking	cURus, ENEC	10000 Steps	14 V	20.2 mm
Switch Components RA1-1A-AC-2-H	10 A	Panel Mount, Snap-In		SPST	Quick Connect - 0.187" (4.7mm)	Round	-25 °C	85 °C		On-Off	White	No Marking	cURus, ENEC			20.2 mm			IP40
Switch Components RA1-1A-AC-2-B	10 A	Panel Mount, Snap-In		SPST	Quick Connect - 0.187" (4.7mm)	Round	-25 °C	85 °C		On-Off	Black	No Marking	cURus, ENEC			20.2 mm			IP40
Switch Components RA1-1A-AC-2-B-1	10 A	Panel Mount, Snap-In		SPST	Quick Connect - 0.187" (4.7mm)	Round	-25 °C	85 °C		On-Off	Black	O -	cURus, ENEC			20.2 mm			IP40
