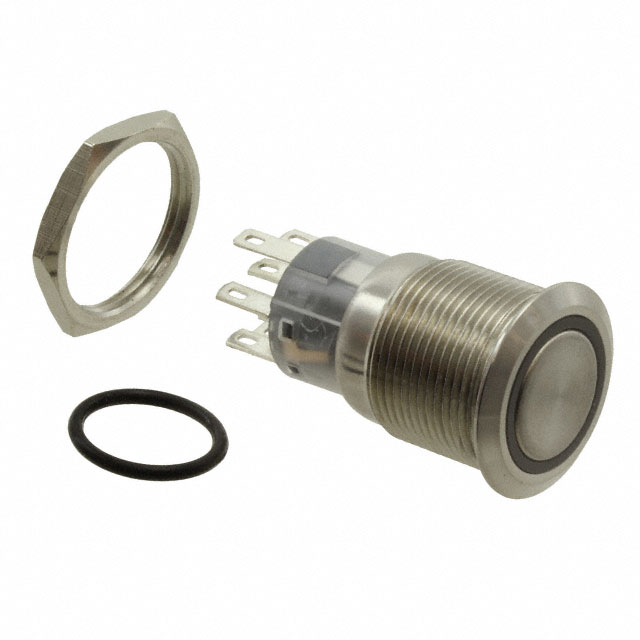

PV4F2G0SS-311

Active

E-Switch

SWITCH: VANDAL RESISTANT; POS: 2; DPDT; 2A/24VDC; IP65; ON-ON; RED

Deep-Dive with AI

Search across all available documentation for this part.

PV4F2G0SS-311

Active

E-Switch

SWITCH: VANDAL RESISTANT; POS: 2; DPDT; 2A/24VDC; IP65; ON-ON; RED

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PV4F2G0SS-311

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	DPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A
Electrical Life	50000 Cycles
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	1.8 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	19 mm
Switch Function	On-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Anti-Vandal, Illuminated
Voltage Rating - DC	24 V

PV4F2 Series

Part	Actuator Type	Electrical Life	Actuator Marking	Mounting Type	Current Rating (Amps)	Ingress Protection	Panel Cutout Dimensions [diameter]	Termination Style	Termination Style	Termination Style	Circuit	Mechanical Life	Switch Function	Illumination Voltage (Nominal)	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Type, Color	Type	Color - Actuator/Cap	Voltage Rating - DC	Features
E-Switch PV4F2G0SS-311	Button Flush Round	50000 Cycles	No Marking	Panel Mount Front	2 A	IP65 - Dust Tight Water Resistant	19 mm	0.11 in	Quick Connect Solder	2.8 mm	DPDT	1000000 Cycles	On-On	1.8 VDC	55 °C	-20 C	LED Red	Anti-Vandal Illuminated	Silver	24 V
E-Switch PV4F2Y0SS-315	Button Flush Round	50000 Cycles	No Marking	Panel Mount Front	2 A	IP65 - Dust Tight Water Resistant	19 mm	0.11 in	Quick Connect Solder	2.8 mm	DPST-NO/NC	1000000 Cycles	Off-Mom On-Mom	24 V	55 °C	-20 C	LED Red	Anti-Vandal Illuminated	Silver	24 V
E-Switch PV4F2Y0SS-331	Button Flush Round	50000 Cycles	No Marking	Panel Mount Front	2 A	IP65 - Dust Tight Water Resistant	19 mm	0.11 in	Quick Connect Solder	2.8 mm	DPST-NO/NC	1000000 Cycles	Off-Mom On-Mom	2.8 VDC	55 °C	-20 C	Green LED	Anti-Vandal Illuminated	Silver	24 V
E-Switch PV4F2B0SS-341-M01	Button Flush Round	50000 Cycles	Power Symbol	Panel Mount Front	2 A	IP65 - Dust Tight Water Resistant	19 mm	0.11 in	Quick Connect Solder	2.8 mm	SPDT		On-Mom	2.8 VDC	55 °C	-20 C	Blue LED	Anti-Vandal Illuminated	Silver	24 V	Fixed LED Ring
E-Switch PV4F2Y011-331	Button Flush Round	50000 Cycles	No Marking	Panel Mount Front	2 A	IP65 - Dust Tight Water Resistant	19 mm	0.11 in	Quick Connect Solder	2.8 mm	DPST-NO/NC	1000000 Cycles	Off-Mom On-Mom	2.8 VDC	55 °C	-20 C	Green LED	Anti-Vandal Illuminated	Black	24 V
E-Switch PV4F2B011-324	Button Flush Round	50000 Cycles	No Marking	Panel Mount Front	2 A	IP65 - Dust Tight Water Resistant	19 mm	0.11 in	Quick Connect Solder	2.8 mm	SPDT	1000000 Cycles	On-Mom	12 VDC	55 °C	-20 C	LED Orange	Anti-Vandal Illuminated	Black	24 V
E-Switch PV4F230SS-341	Button Flush Round	50000 Cycles	No Marking	Panel Mount Front	2 A	IP65 - Dust Tight Water Resistant	19 mm	0.11 in	Quick Connect Solder	2.8 mm	SPDT	1000000 Cycles	On-On	2.8 VDC	55 °C	-20 C	Blue LED	Anti-Vandal Illuminated	Silver	24 V
E-Switch PV4F2G0SS-325	Button Flush Round	50000 Cycles	No Marking	Panel Mount Front	2 A	IP65 - Dust Tight Water Resistant	19 mm	0.11 in	Quick Connect Solder	2.8 mm	DPDT	1000000 Cycles	On-On	24 V	55 °C	-20 C	LED Orange	Anti-Vandal Illuminated	Silver	24 V
E-Switch PV4F2Y0SS-304	Button Flush Round	50000 Cycles	No Marking	Panel Mount Front	2 A	IP65 - Dust Tight Water Resistant	19 mm	0.11 in	Quick Connect Solder	2.8 mm	DPST-NO/NC	1000000 Cycles	Off-Mom On-Mom	12 VDC	55 °C	-20 C	LED White	Anti-Vandal Illuminated	Silver	24 V
E-Switch PV4F2H0SS-344	Button Flush Round	50000 Cycles	No Marking	Panel Mount Front	2 A	IP65 - Dust Tight Water Resistant	19 mm	0.11 in	Quick Connect Solder	2.8 mm	DPDT	1000000 Cycles	On-Mom	12 VDC	55 °C	-20 C	Blue LED	Anti-Vandal Illuminated	Silver	24 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.12
		40	$ 22.27
		120	$ 21.44
TME	N/A	1	$ 32.20
		10	$ 30.40
		50	$ 28.62

Description

General part information

PV4F2 Series

Pushbutton Switch DPDT Anti-Vandal, Illuminated Panel Mount, Front

Documents

Technical documentation and resources

No documents available
