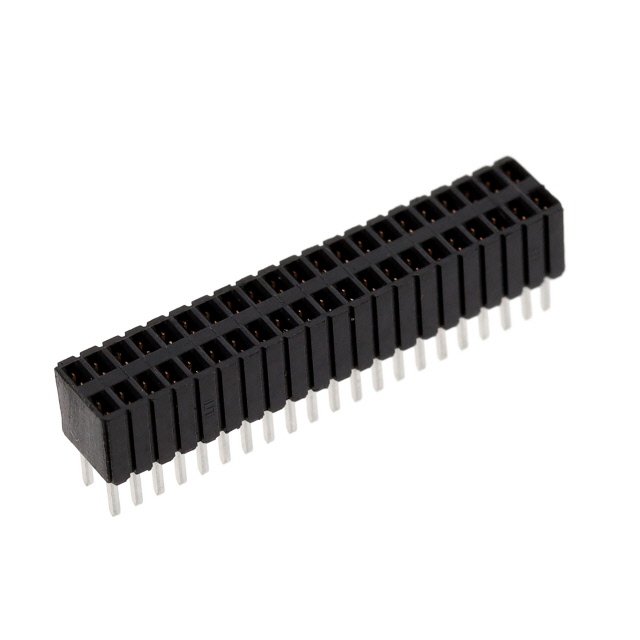

SLM-121-01-S-D

Active

Samtec Inc.

FEMALE HEADERS ROHS

Search across all available documentation for this part.

Active

Samtec Inc.

FEMALE HEADERS ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	SLM-121-01-S-D

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Post	2.92 mm
Contact Length - Post	0.115 in
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.57 mm
Insulation Height	0.18 "
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	42
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

Part	Termination	Fastening Type	Contact Shape	Connector Type	Contact Type	Number of Positions	Insulation Color	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Number of Rows	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Contact Material	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. SLM-121-01-S-D	Solder	Push-Pull	Rectangular	Receptacle	Forked	42	Black	Tin	30 Áin	0.76 Ám	Through Hole	2	All	4.57 mm	0.18 "	2.92 mm	0.115 in	-55 °C	125 °C	2.54 mm	0.1 in	Gold	Phosphor Bronze	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm
Samtec Inc. SLM-121-01-G-S	Solder	Push-Pull	Rectangular	Receptacle	Forked	21	Black	Gold	20 µin	0.51 µm	Through Hole	1	All	4.57 mm	0.18 "	2.92 mm	0.115 in	-55 °C	125 °C			Gold	Phosphor Bronze	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	3 µin	0.076 µm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

42 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
