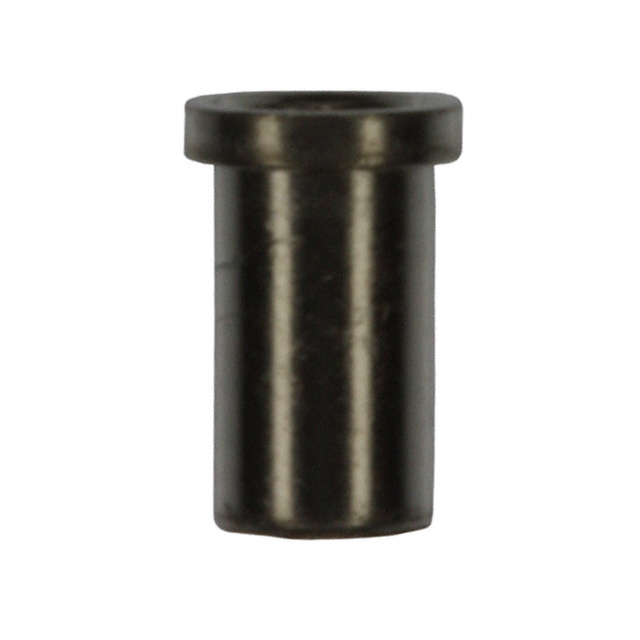

0479-0-67-80-34-27-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .032-.046 SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

0479-0-67-80-34-27-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .032-.046 SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0479-0-67-80-34-27-10-0

Accepts Pin Diameter	0.81 mm, 1.17 mm
Accepts Pin Diameter [Max]	0.046 in
Accepts Pin Diameter [Min]	0.032 "
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Features	Knockout Bottom (Organic Fiber Plug®)
Flange Diameter [diameter]	2.29 mm
Flange Diameter [diameter]	0.09 in
Length - Overall [x]	0.14 "
Length - Overall [x]	3.56 mm
Mounting Hole Diameter [diameter]	0.077 in
Mounting Hole Diameter [diameter]	1.96 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	1.63 mm
Pin Hole Diameter [diameter]	0.064 in
Socket Depth	0.14 in
Socket Depth	3.56 mm
Tail Type	No Tail
Termination	Solder

0479-0 Series

Part	Socket Depth	Socket Depth	Tail Type	Termination	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Accepts Pin Diameter	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Finish Thickness	Contact Finish Thickness	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Features
Mill-Max Manufacturing Corp. 0479-0-15-80-34-27-10-0	0.14 in	3.56 mm	No Tail	Solder	0.14 "	3.56 mm	0.077 in	1.96 mm	2.29 mm	0.09 in	Gold	-55 °C	125 °C	Beryllium Copper	0.81 mm 1.17 mm	0.046 in	0.032 "	0.76 Ám	30 Áin
Mill-Max Manufacturing Corp. 0479-0-15-01-34-14-10-0	0.14 in	3.56 mm	No Tail	Solder	0.14 "	3.56 mm	0.077 in	1.96 mm	2.29 mm	0.09 in	Gold	-55 °C	125 °C	Beryllium Copper	0.81 mm 1.17 mm	0.046 in	0.032 "	0.25 Ám	10 Áin
Mill-Max Manufacturing Corp. 0479-0-15-80-34-14-10-0	0.14 in	3.56 mm	No Tail	Solder	0.14 "	3.56 mm	0.077 in	1.96 mm	2.29 mm	0.09 in	Gold	-55 °C	125 °C	Beryllium Copper	0.81 mm 1.17 mm	0.046 in	0.032 "	0.25 Ám	10 Áin
Mill-Max Manufacturing Corp. 0479-0-15-01-34-27-10-0	0.14 in	3.56 mm	No Tail	Solder	0.14 "	3.56 mm	0.077 in	1.96 mm	2.29 mm	0.09 in	Gold	-55 °C	125 °C	Beryllium Copper	0.81 mm 1.17 mm	0.046 in	0.032 "	0.76 Ám	30 Áin
Mill-Max Manufacturing Corp. 0479-0-15-15-34-14-10-0	0.14 in	3.56 mm	No Tail	Solder	0.14 "	3.56 mm	0.077 in	1.96 mm	2.29 mm	0.09 in	Gold	-55 °C	125 °C	Beryllium Copper	0.81 mm 1.17 mm	0.046 in	0.032 "	0.25 Ám	10 Áin
Mill-Max Manufacturing Corp. 0479-0-67-80-34-27-10-0	0.14 in	3.56 mm	No Tail	Solder	0.14 "	3.56 mm	0.077 in	1.96 mm	2.29 mm	0.09 in	Gold	-55 °C	125 °C	Beryllium Copper	0.81 mm 1.17 mm	0.046 in	0.032 "	0.76 Ám	30 Áin	1.63 mm	0.064 in	Knockout Bottom (Organic Fiber Plug®)
Mill-Max Manufacturing Corp. 0479-0-15-01-34-01-10-0	0.14 in	3.56 mm	No Tail	Solder	0.14 "	3.56 mm	0.077 in	1.96 mm	2.29 mm	0.09 in		-55 °C	125 °C	Beryllium Copper	0.81 mm 1.17 mm	0.046 in	0.032 "	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.42
		10	$ 1.08
		25	$ 0.97
		50	$ 0.90
		100	$ 0.83
		250	$ 0.75
		500	$ 0.70
		1000	$ 0.65
	Digi-Reel®	1	$ 1.42
		10	$ 1.08
		25	$ 0.97
		50	$ 0.90
		100	$ 0.83
		250	$ 0.75
		500	$ 0.70
		1000	$ 0.65
	Tape & Reel (TR)	2200	$ 0.60
		4400	$ 0.56
		6600	$ 0.54
		11000	$ 0.51
		15400	$ 0.50

Description

General part information

0479-0 Series

Pin Receptacle Connector 0.032" ~ 0.046" (0.81mm ~ 1.17mm) No Tail Solder

Documents

Technical documentation and resources

No documents available
