R180153007

Active

Radiall USA, Inc.

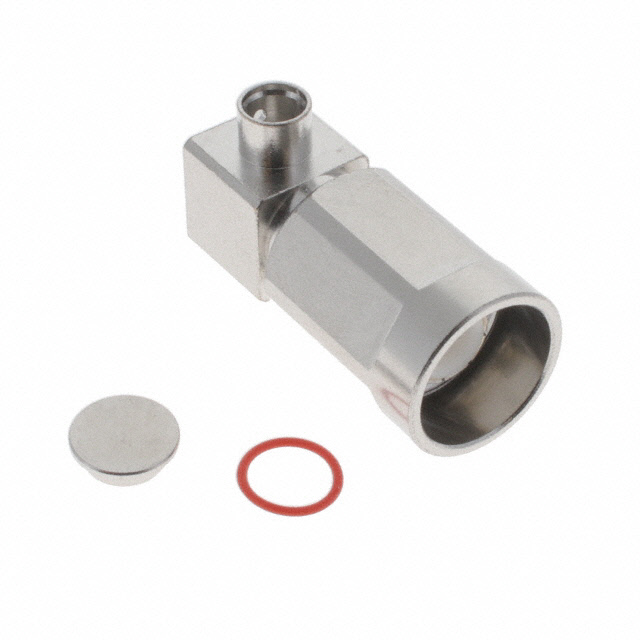

RF CONNECTOR, MALE, CABLE MOUNT, SOLDER TERMINAL, PLUG,

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RF CONNECTOR, MALE, CABLE MOUNT, SOLDER TERMINAL, PLUG,

Technical Specifications

Parameters and characteristics for this part

Specification	R180153007

Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	NEX10
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	20 GHz
Impedance	50 Ohms
Includes	1 End Cap, 1 Connector
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	335 V

Part	Dielectric Material	Number of Ports	Center Contact Plating	Connector Type	Connector Style	Shield Termination	Center Contact Material	Body Finish	Ingress Protection	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Contact Termination	Frequency - Max [Max]	Voltage Rating	Body Material	Mounting Type	Fastening Type	Includes
Radiall USA, Inc. R180153007W	Polytetrafluoroethylene (PTFE)	1	Silver	Male Pin Plug	NEX10	Solder	Brass	White Bronze	IP68 - Dust Tight Waterproof	50 Ohms	-55 °C	125 °C	Silver	Solder	20 GHz	335 V	Brass	Free Hanging (In-Line) Right Angle
Radiall USA, Inc. R180153007	Polytetrafluoroethylene (PTFE)	1	Silver	Male Pin Plug	NEX10	Solder	Brass			50 Ohms	-55 °C	125 °C		Solder	20 GHz	335 V	Brass	Free Hanging (In-Line) Right Angle	Snap-On	1 Connector 1 End Cap

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 12.26

General part information

NEX10 Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
