AXK750347G

Active

Panasonic Electric Works

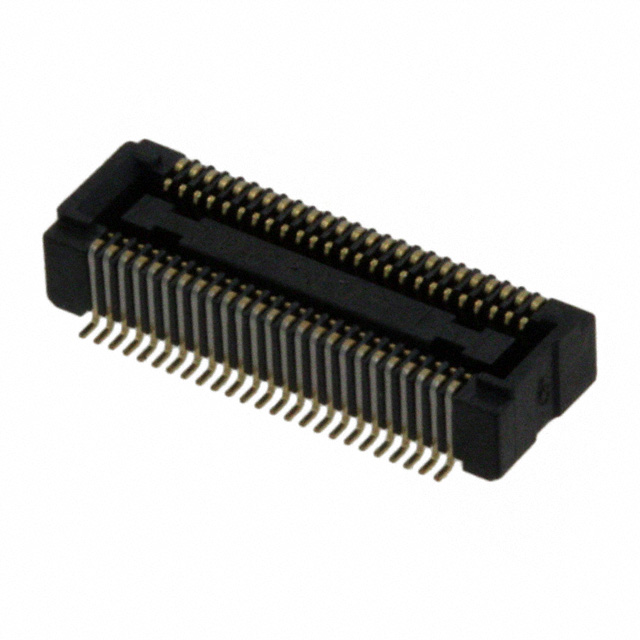

CONN SOCKET 50POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 50POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK750347G

Connector Type	Center Strip, Socket, Outer Edge Contacts
Contact Finish	Gold
Height Above Board [z]	2.41 mm
Height Above Board [z]	0.095 in
Mated Stacking Heights [z]	3 mm, 2.5 mm
Mounting Type	Surface Mount
Number of Positions	50
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Mounting Type	Number of Rows	Connector Type	Contact Finish	Height Above Board [z]	Height Above Board [z]	Number of Positions	Mated Stacking Heights [z]	Pitch [x]	Pitch [x]
Panasonic Electric Works AXK750347A	Surface Mount	2	Center Strip Outer Edge Contacts Socket	Gold	2.41 mm	0.095 in	50	2.5 mm 3 mm	0.016 in	0.4 mm
Panasonic Electric Works AXK750347G	Surface Mount	2	Center Strip Outer Edge Contacts Socket	Gold	2.41 mm	0.095 in	50	2.5 mm 3 mm	0.016 in	0.4 mm
Panasonic Electric Works AXK750347GA	Surface Mount	2	Center Strip Outer Edge Contacts Socket	Gold	2.41 mm	0.095 in	50	2.5 mm 3 mm	0.016 in	0.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position Connector Socket, Center Strip, Outer Edge Contacts Surface Mount Gold
