R164635002

Active

Radiall USA, Inc.

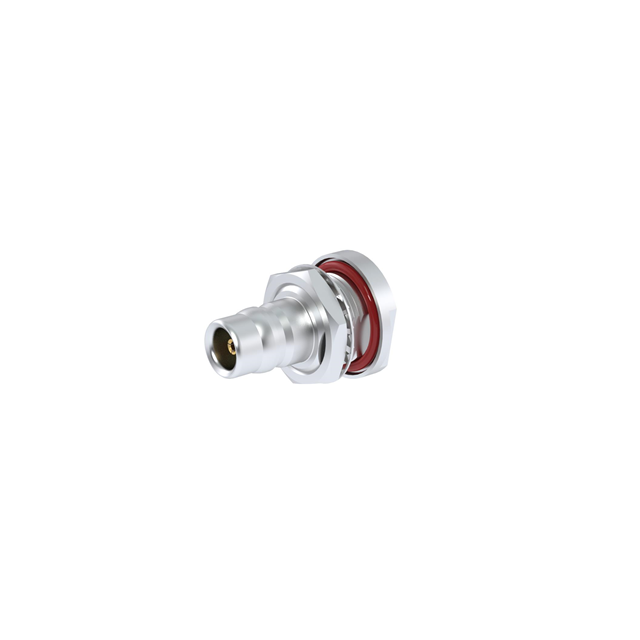

QN / STRAIGHT BULKHEAD JACK SOLD

Search across all available documentation for this part.

Active

Radiall USA, Inc.

QN / STRAIGHT BULKHEAD JACK SOLD

Technical Specifications

Parameters and characteristics for this part

Specification	R164635002

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	QN
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	350 V

Part	Dielectric Material	Body Material	Housing Color	Connector Style	Number of Ports	Frequency - Max [Max]	Contact Termination	Connector Type	Impedance	Center Contact Material	Shield Termination	Center Contact Plating	Ingress Protection	Fastening Type	Mounting Feature	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish
Radiall USA, Inc. R164635002	Polytetrafluoroethylene (PTFE)	Brass	Silver	QN	1	6000 MHz	Solder	Female Socket Jack	50 Ohms	Beryllium Copper	Solder	Gold	IP68 - Dust Tight Waterproof	Snap-On	Bulkhead - Front Side Nut	350 V	-55 °C	125 °C	White Bronze
Radiall USA, Inc. R164635002W	Polytetrafluoroethylene (PTFE)	Brass	Silver	QN	1	6000 MHz	Solder	Female Socket Jack	50 Ohms	Beryllium Copper	Solder	Gold	IP68 - Dust Tight Waterproof	Snap-On	Bulkhead - Front Side Nut	350 V	-55 °C	125 °C	White Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 25.88

General part information

QN Connector Jack, Female Socket 50 Ohms Panel Mount Solder

Technical documentation and resources

No documents available
