General part information

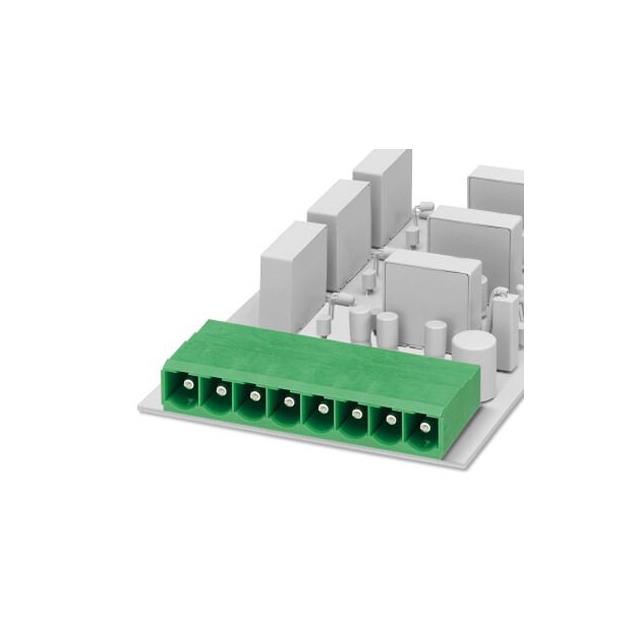

Pluggable Terminal Blocks 8 Pos 7.62mm pitch Plug 20-14 AWG Screw
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 1913691 | PC Series |
|---|---|---|
| Color | Green | Green, Black |
| Contact Mating Finish | Silver | Tin, Silver |
| Contact Tail Length | 0.157 in | 0.157 in |
| Contact Tail Length | 4 mm | 4 mm |
| Current - IEC | 41 A | 20 - 76 A |
| Current - UL | 5 A | 5 - 41 A |
| Features | - | Mating Flange, Retention Latches, Latch Lock, Strain Relief |
| Header Orientation | 90°, Right Angle | Right Angle, Under Board, 90°, Right Angle |
| Header Orientation | - | 90 ° |
| Housing Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Insulation Height | - | 0.677 - 0.776 " |
| Insulation Height | - | 17.2 - 19.7 mm |
| Insulation Height [z] | 0.539 in | 0.539 in |
| Insulation Height [z] | 13.7 mm | 13.7 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Free Hanging (In-Line), Through Hole |
| Number of Levels | 1 | 1 |
| Number of Positions | 7 | 6 - 9 |
| Pitch [x] | 10.16 mm | 7.62 - 10.16 mm |
| Pitch [x] | 0.4 in | 0.3 - 0.4 in |
| Positions Per Level | 7 | 6 - 9 |
| Screw Size | - | M3 |
| Termination Style | Solder | Screw - Rising Cage Clamp, Solder |
| Torque - Screw | - | 0.6 - 0.8 Nm |
| Torque - Screw | - | 5.3 - 7.1 Lb-In |
| Torque - Screw | - | 4.4 - 6.2 Lb-In |
| Torque - Screw | - | 0.5 - 0.7 Nm |
| Type | Header, Male Pins, Shrouded (4 Side) | Plug, Female Sockets, Plug Housing for Female Sockets, Header, Male Pins, Shrouded (4 Side) |
| Voltage - IEC | 1 kV | 1 kV |
| Wire Gauge or Range - AWG | - | 8 - 14 AWG |
| Wire Gauge or Range - AWG | - | 20 - 30 AWG |
| Wire Gauge or Range - mm˛ | - | 2.5 - 10 mm˛ |
| Wire Gauge or Range - mm˛ | - | 0.2 - 0.5 mm˛ |
| Wire Gauge or Range - mm² | - | 0.2 mm² |
| Wire Gauge or Range - mm² | - | 4 - 10 mm² |
| Wire Strip Length | - | 7 - 10 mm |
Pluggable Terminal Blocks 8 Pos 7.62mm pitch Plug 20-14 AWG Screw
| Part | Positions Per Level | Housing Material | Termination Style | Color | Insulation Height | Insulation Height | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Type | Number of Levels | Pitch [x] | Pitch [x] | Material Flammability Rating | Contact Mating Finish | Number of Positions | Voltage - IEC | Mounting Type | Torque - Screw [Max] | Torque - Screw [Max] | Torque - Screw [Min] | Torque - Screw [Min] | Wire Strip Length | Current - IEC | Screw Size | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Current - UL | Features | Wire Gauge or Range - mm˛ [Max] | Wire Gauge or Range - mm˛ [Min] | Header Orientation | Header Orientation | Contact Tail Length | Contact Tail Length | Insulation Height [z] | Insulation Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1828317 | 9 | Polyamide (PA), Nylon | Screw - Rising Cage Clamp | Green | 0.713 " | 18.1 mm | 0.2 mm² | 4 mm² | Plug, Female Sockets | 1 | 0.3 in | 7.62 mm | UL94 V-0 | Tin | 9 | 1 kV | Free Hanging (In-Line) | 0.6 Nm | 5.3 Lb-In | 4.4 Lb-In | 0.5 Nm | 7 mm | 20 A | M3 | 10 AWG | 30 AWG | 5 A | Mating Flange | ||||||||
Phoenix Contact 1840133 | 8 | Polyamide (PA), Nylon | Green | 0.677 in | 17.2 mm | Plug Housing for Female Sockets | 1 | 0.3 in | 7.62 mm | UL94 V-0 | 8 | 1 kV | Free Hanging (In-Line) | 20 A | 14 AWG | 20 AWG | 10 A | Retention Latches | 2.5 mm˛ | 0.5 mm˛ | ||||||||||||||||
Phoenix Contact 1778133 | 9 | Polyamide (PA), Nylon | Screw - Rising Cage Clamp | Green | 0.776 in | 19.7 mm | Plug, Female Sockets | 1 | 0.3 in | 7.62 mm | UL94 V-0 | Tin | 9 | 1 kV | Free Hanging (In-Line) | 0.8 Nm | 7.1 Lb-In | 4.4 Lb-In | 0.5 Nm | 10 mm | 41 A | M3 | 8 AWG | 24 AWG | 41 A | Latch Lock | 10 mm˛ | 0.2 mm˛ | ||||||||
Phoenix Contact 1763834 | 6 | Solder | Black | Header, Male Pins, Shrouded (4 Side) | 1 | 0.4 in | 10.16 mm | 6 | 1 kV | Through Hole | 76 A | Right Angle, Under Board | 90 ° | 0.157 in | 4 mm | |||||||||||||||||||||
Phoenix Contact 1777794 | 9 | Polyamide (PA), Nylon | Screw - Rising Cage Clamp | Green | 0.776 in | 19.7 mm | 0.2 mm² | 10 mm² | Plug, Female Sockets | 1 | 0.3 in | 7.62 mm | UL94 V-0 | Tin | 9 | 1 kV | Free Hanging (In-Line) | 0.8 Nm | 7.1 Lb-In | 4.4 Lb-In | 0.5 Nm | 10 mm | 41 A | M3 | 8 AWG | 24 AWG | 41 A | |||||||||
Phoenix Contact 1778201 | 7 | Polyamide (PA), Nylon | Screw - Rising Cage Clamp | Green | Plug, Female Sockets | 1 | 0.3 in | 7.62 mm | UL94 V-0 | Tin | 7 | 1 kV | Free Hanging (In-Line) | 0.8 Nm | 7.1 Lb-In | 6.2 Lb-In | 0.7 Nm | 10 mm | 41 A | M3 | 8 AWG | 24 AWG | 41 A | Mating Flange, Strain Relief | 10 mm˛ | 0.2 mm˛ | ||||||||||
Phoenix Contact 1913691 | 7 | Polyamide (PA), Nylon | Solder | Green | Header, Male Pins, Shrouded (4 Side) | 1 | 0.4 in | 10.16 mm | UL94 V-0 | Silver | 7 | 1 kV | Through Hole | 41 A | 5 A | 90°, Right Angle | 0.157 in | 4 mm | 0.539 in | 13.7 mm |
