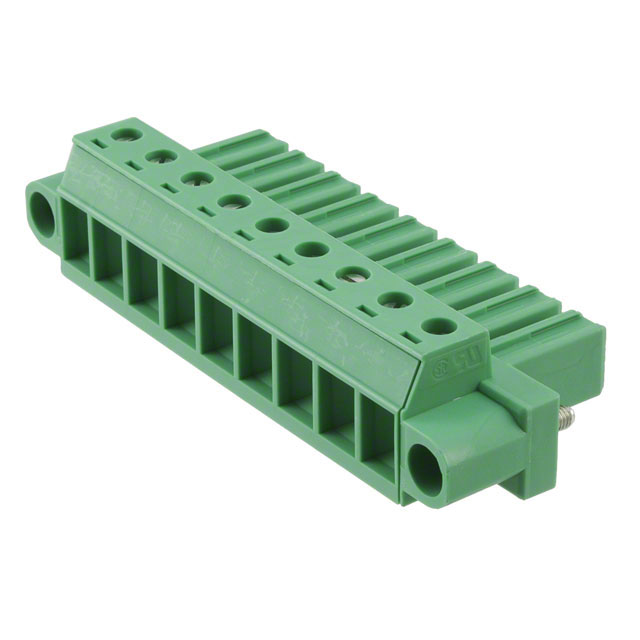

PLUGGABLE TERMINAL BLOCKS 9 POS 7.62MM PITCH PLUG 24-10 AWG SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

1828317

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 9 POS 7.62MM PITCH PLUG 24-10 AWG SCREW

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.06
		10	$ 24.37
		50	$ 22.78
		100	$ 20.96
		250	$ 19.36
		500	$ 18.45
Sager	N/A	50	$ 21.88

Description

General part information

PC Series

Pluggable Terminal Blocks 8 Pos 7.62mm pitch Plug 20-14 AWG Screw

Documents

Technical documentation and resources

Datasheet

Document

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1828317	PC Series

Color	Green	Green, Black
Contact Mating Finish	Tin	Tin, Silver
Contact Tail Length	-	0.157 in
Contact Tail Length	-	4 mm
Current - IEC	20 A	20 - 76 A
Current - UL	5 A	5 - 41 A
Features	Mating Flange	Mating Flange, Retention Latches, Latch Lock, Strain Relief
Header Orientation	-	Right Angle, Under Board, 90°, Right Angle
Header Orientation	-	90 °
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Insulation Height	0.713 "	0.677 - 0.776 "
Insulation Height	18.1 mm	17.2 - 19.7 mm
Insulation Height	-	0.539 in
Insulation Height	-	13.7 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Through Hole
Number of Levels	1	1
Number of Positions	9	6 - 9
Pitch [x]	0.3 in	0.3 - 0.4 in
Pitch [x]	7.62 mm	7.62 - 10.16 mm
Positions Per Level	9	6 - 9
Screw Size	M3	M3
Termination Style	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp, Solder
Torque - Screw [Max]	0.6 Nm	0.6 - 0.8 Nm
Torque - Screw [Max]	5.3 Lb-In	5.3 - 7.1 Lb-In
Torque - Screw [Min]	4.4 Lb-In	4.4 - 6.2 Lb-In
Torque - Screw [Min]	0.5 Nm	0.5 - 0.7 Nm
Type	Plug, Female Sockets	Plug, Female Sockets, Plug Housing for Female Sockets, Header, Male Pins, Shrouded (4 Side)
Voltage - IEC	1 kV	1 kV
Wire Gauge or Range - AWG [Max]	30 AWG	20 - 30 AWG
Wire Gauge or Range - AWG [Min]	10 AWG	8 - 14 AWG
Wire Gauge or Range - mm˛	-	2.5 - 10 mm˛
Wire Gauge or Range - mm˛	-	0.2 - 0.5 mm˛
Wire Gauge or Range - mm² [Max]	4 mm²	4 - 10 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²	0.2 mm²
Wire Strip Length	7 mm	7 - 10 mm

PC Series

Pluggable Terminal Blocks 8 Pos 7.62mm pitch Plug 20-14 AWG Screw

Part	Positions Per Level	Housing Material	Termination Style	Color	Insulation Height	Insulation Height	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Type	Number of Levels	Pitch [x]	Pitch [x]	Material Flammability Rating	Contact Mating Finish	Number of Positions	Voltage - IEC	Mounting Type	Torque - Screw [Max]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Wire Strip Length	Current - IEC	Screw Size	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Current - UL	Features	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Header Orientation	Header Orientation	Contact Tail Length	Contact Tail Length	Insulation Height [z]	Insulation Height [z]
Phoenix Contact 1828317	9	Polyamide (PA), Nylon	Screw - Rising Cage Clamp	Green	0.713 "	18.1 mm	0.2 mm²	4 mm²	Plug, Female Sockets	1	0.3 in	7.62 mm	UL94 V-0	Tin	9	1 kV	Free Hanging (In-Line)	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	7 mm	20 A	M3	10 AWG	30 AWG	5 A	Mating Flange
