Q-2005E0005012i

Active

Amphenol Custom Cable

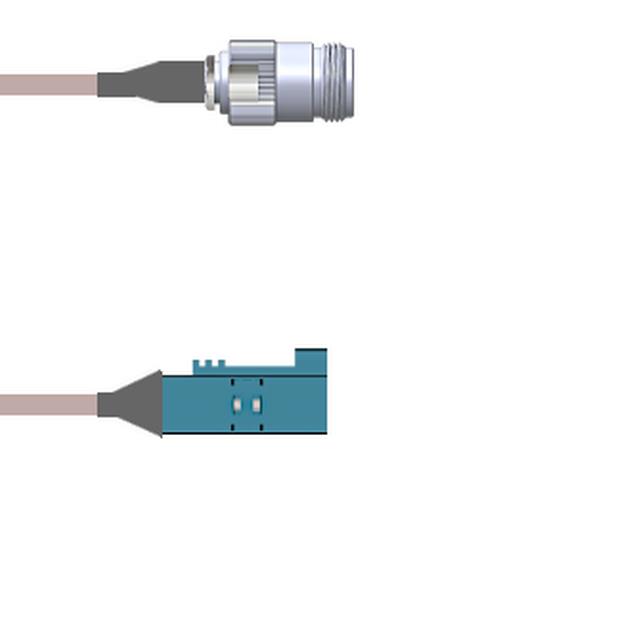

CBL ASSY NTYPE-FAKRA JCK-JCK 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2005E0005012i

Active

Amphenol Custom Cable

CBL ASSY NTYPE-FAKRA JCK-JCK 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2005E0005012i

1st Connector	N-Type Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	Fakra Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	N-Type to Fakra

Q-2005E0 Series

Part	Cable Type	1st Contact Gender	Frequency - Max [Max]	1st Connector	Color	1st Connector Mounting Type	2nd Connector Mounting Type	2nd Contact Gender	Features	2nd Connector	Style	Length	Length	Overall Impedance	Length	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-2005E0005006i	RG-316	Female	3 GHz	N-Type Jack	Copper	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Shielded	Fakra Jack	N-Type to Fakra	152.4 mm	6 in	50 Ohms
Amphenol Custom Cable Q-2005E0003084i	RG-174	Female	3 GHz	N-Type Jack	Black	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Shielded	Fakra Jack	N-Type to Fakra	2.1 m	84 in	50 Ohms	7 ft
Amphenol Custom Cable Q-2005E0003024i	RG-174	Female	3 GHz	N-Type Jack	Black	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Shielded	Fakra Jack	N-Type to Fakra	609.6 mm	24 "	50 Ohms
Amphenol Custom Cable Q-2005E0003006i	RG-174	Female	3 GHz	N-Type Jack	Black	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Shielded	Fakra Jack	N-Type to Fakra	152.4 mm	6 in	50 Ohms
Amphenol Custom Cable Q-2005E00051.5M	RG-316	Female	3 GHz	N-Type Jack	Copper	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Shielded	Fakra Jack	N-Type to Fakra	1.5 m	59.1 in	50 Ohms	4.9 ft
Amphenol Custom Cable Q-2005E0005018i	RG-316	Female	3 GHz	N-Type Jack	Copper	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Shielded	Fakra Jack	N-Type to Fakra			50 Ohms		457.2 mm	457.2 mm
Amphenol Custom Cable Q-2005E0005012i	RG-316	Female	3 GHz	N-Type Jack	Copper	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Shielded	Fakra Jack	N-Type to Fakra	304.8 mm	12 "	50 Ohms
Amphenol Custom Cable Q-2005E0005.25M	RG-316	Female	3 GHz	N-Type Jack	Copper	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Shielded	Fakra Jack	N-Type to Fakra			50 Ohms			250 mm	9.843 "
Amphenol Custom Cable Q-2005E0005002M	RG-316	Female	3 GHz	N-Type Jack	Copper	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Shielded	Fakra Jack	N-Type to Fakra	2 m	78.7 in	50 Ohms	6.6 ft
Amphenol Custom Cable Q-2005E0003036i	RG-174	Female	3 GHz	N-Type Jack	Black	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Shielded	Fakra Jack	N-Type to Fakra	91.44 cm	36 in	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 46.89
		25	$ 45.98
		50	$ 45.07
		100	$ 44.16
		250	$ 43.25

Description

General part information

Q-2005E0 Series

Cable Assembly Coaxial N-Type to Fakra RG-316 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
