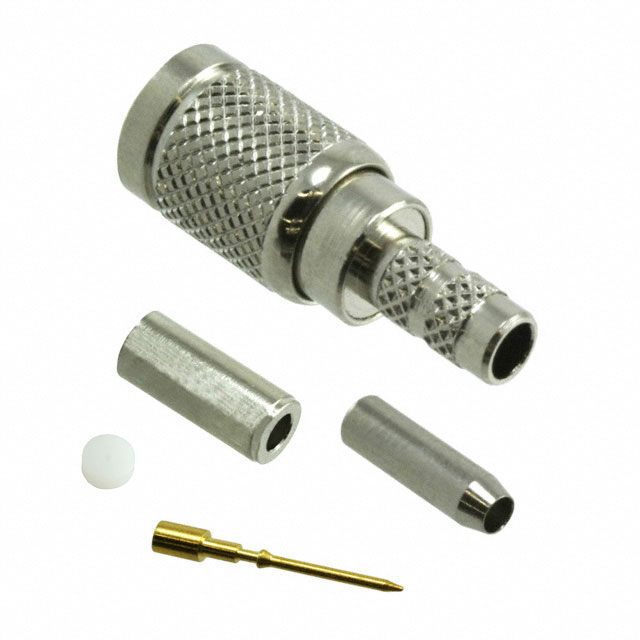

282103-75

Active

Amphenol RF

CONN 1.0/2.3 0HZ TO 3GHZ 75OHM CRIMP ST CABLE MOUNT PL GOLD BAG

Search across all available documentation for this part.

Active

Amphenol RF

CONN 1.0/2.3 0HZ TO 3GHZ 75OHM CRIMP ST CABLE MOUNT PL GOLD BAG

Technical Specifications

Parameters and characteristics for this part

Specification	282103-75

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-179 Double Braid
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Connector Style	1.0/2.3
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Frequency - Max [Max]	3 GHz
Housing Color	Silver
Impedance	75 Ohms
Includes	1 pcs, 1 pcs, 1 pcs, 1 pcs, 1 pcs
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Connector Style	Impedance	Fastening Type	Connector Type	Includes	Housing Color	Dielectric Material	Cable Group	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Center Contact Material	Shield Termination	Body Material	Body Finish	Number of Ports	Contact Termination	Frequency - Max [Max]	Mounting Type	Mating Cycles
Amphenol RF 282103-75	1.0/2.3	75 Ohms	Push-Pull	Male Pin Plug	1 pcs 1 pcs 1 pcs 1 pcs 1 pcs	Silver	Polytetrafluoroethylene (PTFE)	RG-179 Double Braid	Gold	-65 ░C	165 °C	250 VDC	Beryllium Copper Brass	Crimp	Brass	Nickel	1	Crimp	3 GHz	Free Hanging (In-Line)	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.0/2.3 Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp

Technical documentation and resources

No documents available
