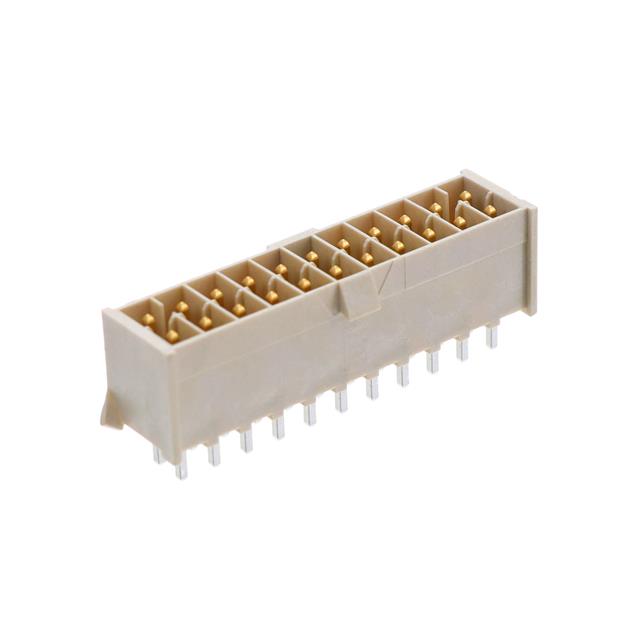

IPL1-111-01-L-D-K - IPL1-111-01-L-D-K

IPL1-111-01-L-D-K

Active
Samtec Inc.

CONN HEADER VERT 22POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIPL1 DatasheetIPL1 Series Other Related Documents 01+2
IPL1-111-01-L-D-K - IPL1-111-01-L-D-K

IPL1-111-01-L-D-K

Active
Samtec Inc.

CONN HEADER VERT 22POS 2.54MM

Deep-Dive with AI

DocumentsIPL1 DatasheetIPL1 Series Other Related Documents 01+2

Technical Specifications

Parameters and characteristics for this part

SpecificationIPL1-111-01-L-D-K
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - Mating10 çin
Contact Finish Thickness - Mating0.25 çm
Contact Length - Mating5.46 mm
Contact Length - Mating0.215 in
Contact Length - Post [x]0.12 in
Contact Length - Post [x]3.05 mm
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Fastening TypeLocking Ramp
Insulation ColorNatural
Insulation Height8.13 mm
Insulation Height0.32 in
Insulation MaterialLiquid Crystal Polymer (LCP)
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions22 positions
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch - Mating0.1 in
Pitch - Mating2.54 mm
Row Spacing - Mating [x]2.54 mm
Row Spacing - Mating [x]0.1 in
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder
Voltage Rating954 VDC, 675 VAC

IPL1-111 Series

PartNumber of PositionsNumber of RowsVoltage RatingOperating Temperature [Min]Operating Temperature [Max]Contact Length - MatingContact Length - MatingShroudingPitch - MatingPitch - MatingTerminationContact Finish - MatingNumber of Positions LoadedContact ShapeInsulation ColorMounting TypeInsulation MaterialContact Finish Thickness - MatingContact Finish Thickness - MatingContact TypeContact Length - Post [x]Contact Length - Post [x]Insulation HeightInsulation HeightContact Finish - PostStyleConnector TypeContact MaterialFastening TypeMaterial Flammability RatingRow Spacing - Mating [x]Row Spacing - Mating [x]Contact Finish Thickness - PostContact Finish Thickness - PostFeaturesContact Length - PostContact Length - Post
Samtec Inc.
IPL1-111-01-L-S-K
11
1
675 VAC
954 VDC
-55 °C
125 °C
5.46 mm
0.215 in
Shrouded - 4 Wall
0.1 in
2.54 mm
Solder
Gold
All
Square
Natural
Through Hole
Liquid Crystal Polymer (LCP)
10 çin
0.25 çm
Male Pin
0.12 in
3.05 mm
8.13 mm
0.32 in
Tin
Board to Cable/Wire
Header
Phosphor Bronze
Locking Ramp
UL94 V-0
Samtec Inc.
IPL1-111-01-S-D-P
22 positions
2
675 VAC
954 VDC
-55 °C
125 °C
5.46 mm
0.215 in
Shrouded - 4 Wall
0.1 in
2.54 mm
Solder
Gold
All
Square
Natural
Through Hole
Liquid Crystal Polymer (LCP)
30 Áin
0.76 Ám
Male Pin
0.12 in
3.05 mm
8.13 mm
0.32 in
Tin
Board to Cable/Wire
Header
Phosphor Bronze
Locking Ramp
UL94 V-0
2.54 mm
0.1 in
Samtec Inc.
IPL1-111-01-H-D-P
22 positions
2
675 VAC
954 VDC
-55 °C
125 °C
5.46 mm
0.215 in
Shrouded - 4 Wall
0.1 in
2.54 mm
Solder
Gold
All
Square
Natural
Through Hole
Liquid Crystal Polymer (LCP)
30 Áin
0.76 Ám
Male Pin
0.12 in
3.05 mm
8.13 mm
0.32 in
Gold
Board to Cable/Wire
Header
Phosphor Bronze
Locking Ramp
UL94 V-0
2.54 mm
0.1 in
3 µin
0.076 µm
Samtec Inc.
IPL1-111-01-L-D-K
22 positions
2
675 VAC
954 VDC
-55 °C
125 °C
5.46 mm
0.215 in
Shrouded - 4 Wall
0.1 in
2.54 mm
Solder
Gold
All
Square
Natural
Through Hole
Liquid Crystal Polymer (LCP)
10 çin
0.25 çm
Male Pin
0.12 in
3.05 mm
8.13 mm
0.32 in
Tin
Board to Cable/Wire
Header
Phosphor Bronze
Locking Ramp
UL94 V-0
2.54 mm
0.1 in
Samtec Inc.
IPL1-111-02-L-D-K
22 positions
2
675 VAC
954 VDC
-55 °C
125 °C
5.46 mm
0.215 in
Shrouded - 4 Wall
0.1 in
2.54 mm
Solder
Gold
All
Square
Natural
Surface Mount
Liquid Crystal Polymer (LCP)
10 çin
0.25 çm
Male Pin
8.13 mm
0.32 in
Tin
Board to Cable/Wire
Header
Phosphor Bronze
Locking Ramp
UL94 V-0
2.54 mm
0.1 in
Samtec Inc.
IPL1-111-01-L-D-RE1-K-WT
22 positions
2
675 VAC
954 VDC
-55 °C
125 °C
5.46 mm
0.215 in
Shrouded - 4 Wall
0.1 in
2.54 mm
Solder
Gold
All
Square
Natural
Through Hole
Right Angle
Liquid Crystal Polymer (LCP)
10 çin
0.25 çm
Male Pin
8.25 mm
0.325 in
Tin
Board to Cable/Wire
Header
Phosphor Bronze
Locking Ramp
UL94 V-0
2.54 mm
0.1 in
Board Guide
2.16 mm
0.085 in
Samtec Inc.
IPL1-111-02-S-D-K
22 positions
2
675 VAC
954 VDC
-55 °C
125 °C
5.46 mm
0.215 in
Shrouded - 4 Wall
0.1 in
2.54 mm
Solder
Gold
All
Square
Natural
Surface Mount
Liquid Crystal Polymer (LCP)
30 Áin
0.76 Ám
Male Pin
8.13 mm
0.32 in
Tin
Board to Cable/Wire
Header
Phosphor Bronze
Locking Ramp
UL94 V-0
2.54 mm
0.1 in
Samtec Inc.
IPL1-111-02-S-S-K
11
1
675 VAC
954 VDC
-55 °C
125 °C
5.46 mm
0.215 in
Shrouded - 4 Wall
0.1 in
2.54 mm
Solder
Gold
All
Square
Natural
Surface Mount
Liquid Crystal Polymer (LCP)
30 Áin
0.76 Ám
Male Pin
8.13 mm
0.32 in
Tin
Board to Cable/Wire
Header
Phosphor Bronze
Locking Ramp
UL94 V-0
Samtec Inc.
IPL1-111-01-S-D-RA-K
22 positions
2
675 VAC
954 VDC
-55 °C
125 °C
5.46 mm
0.215 in
Shrouded - 4 Wall
0.1 in
2.54 mm
Solder
Gold
All
Square
Natural
Through Hole
Right Angle
Liquid Crystal Polymer (LCP)
30 Áin
0.76 Ám
Male Pin
7.37 mm
0.29 in
Tin
Board to Cable/Wire
Header
Phosphor Bronze
Locking Ramp
UL94 V-0
2.54 mm
0.1 in
2.16 mm
0.085 in
Samtec Inc.
IPL1-111-02-L-D-K-TR
22 positions
2
675 VAC
954 VDC
-55 °C
125 °C
5.46 mm
0.215 in
Shrouded - 4 Wall
0.1 in
2.54 mm
Solder
Gold
All
Square
Natural
Surface Mount
Liquid Crystal Polymer (LCP)
10 çin
0.25 çm
Male Pin
8.13 mm
0.32 in
Tin
Board to Cable/Wire
Header
Phosphor Bronze
Locking Ramp
UL94 V-0
2.54 mm
0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 3.45
25$ 3.01
50$ 2.73
100$ 2.37
500$ 2.11

Description

General part information

IPL1-111 Series

Connector Header Through Hole 22 position 0.100" (2.54mm)
