L17H1110131

Active

Amphenol ICC (Commercial Products)

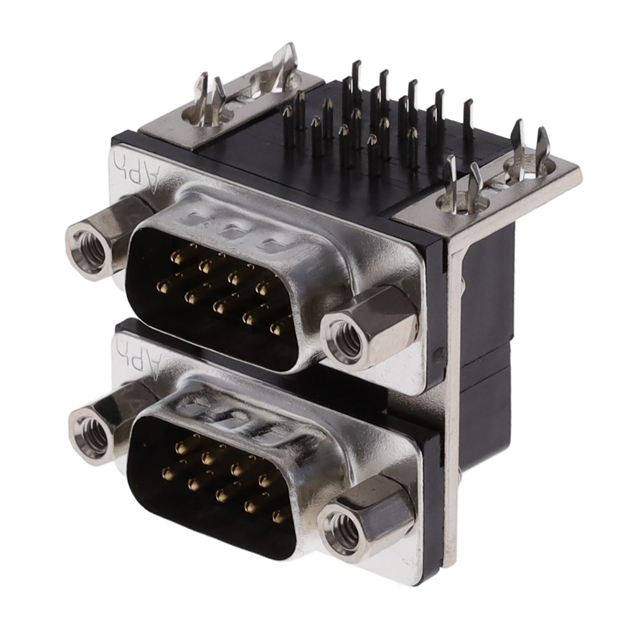

CONN D-SUB PLUG 9POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L17H1110131

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 9POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L17H1110131

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Board Lock, Shielded, Grounding Indents
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	1 (DE, E)
Termination	Solder
Voltage Rating	250 VDC

L17H11 Series

Part	Color	Connector Style	Contact Form	Contact Type	Flange Feature	Number of Positions	Current Rating (Amps)	Contact Finish	Dielectric Material	Mounting Type	Features	Number of Rows	Contact Material	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Material Flammability Rating	Backset Spacing	Backset Spacing	Shell Size, Connector Layout	Termination	Connector Type	Contact Finish Thickness	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
Amphenol ICC (Commercial Products) L17H1112131	Black	D-Sub - Stacked	Stamped	Signal	Female Screwlock (4-40) Mating Side	9	3 A	Gold	Thermoplastic Glass Filled	Through Hole Right Angle	Board Lock Grounding Indents Shielded	2	Brass	250 VDC	105 ░C	-55 °C	0.76 Ám	30 Áin	UL94 V-0	8.08 mm	0.318 "	1 (DE E)	Solder	Male Pins Plug
Amphenol ICC (Commercial Products) L17H1121130	Black	D-Sub - Stacked	Stamped	Signal	Housing/Shell (4-40)	9	3 A	Gold	Thermoplastic Glass Filled	Through Hole Right Angle	Board Lock Grounding Indents Shielded	2	Brass	250 VDC	105 ░C	-55 °C	0.38 µm	15 µin	UL94 V-0	8.08 mm	0.318 "	1 (DE E)	Solder	Plug Male Pins Receptacle Female Sockets
Amphenol ICC (Commercial Products) L17H1120131	Black	D-Sub - Stacked	Stamped	Signal	Female Screwlock (4-40) Mating Side	9	3 A	Gold	Thermoplastic Glass Filled	Through Hole Right Angle	Board Lock Grounding Indents Shielded	2	Brass	250 VDC	105 ░C	-55 °C			UL94 V-0	8.08 mm	0.318 "	1 (DE E)	Solder	Plug Male Pins Receptacle Female Sockets	Flash
Amphenol ICC (Commercial Products) L17H1140131		D-Sub - Stacked	Stamped	Signal	Female Screwlock (4-40) Mating Side	9 15	3 A	Gold	Thermoplastic Glass Filled	Through Hole Right Angle	Board Lock Grounding Indents Shielded	2	Brass	250 VDC	125 °C	-55 °C			UL94 V-0	8.08 mm	0.318 "		Solder	Plug Male Pins Receptacle Female Sockets	Flash	1 (DE E)	2 (DA A)
Amphenol ICC (Commercial Products) L17H1120127		D-Sub - Stacked	Stamped	Signal	Female Screwlock (4-40) Mating Side	9	3 A	Gold	Thermoplastic Glass Filled	Through Hole Right Angle	Board Lock Grounding Indents Shielded	2	Brass	250 VDC	125 °C	-55 °C			UL94 V-0	8.08 mm	0.318 "	1 (DE E)	Solder	Plug Male Pins Receptacle Female Sockets	Flash
Amphenol ICC (Commercial Products) L17H1110131	Black	D-Sub - Stacked	Stamped	Signal	Female Screwlock (4-40) Mating Side	9	3 A	Gold	Thermoplastic Glass Filled	Through Hole Right Angle	Board Lock Grounding Indents Shielded	2	Brass	250 VDC	105 ░C	-55 °C			UL94 V-0	8.08 mm	0.318 "	1 (DE E)	Solder	Male Pins Plug	Flash
Amphenol ICC (Commercial Products) L17H1120134	Black	D-Sub - Stacked	Stamped	Signal	Board Side (M3)	9	3 A	Gold	Thermoplastic Glass Filled	Through Hole Right Angle	Board Lock Grounding Indents Shielded	2	Brass	250 VDC	105 ░C	-55 °C			UL94 V-0	8.08 mm	0.318 "	1 (DE E)	Solder	Plug Male Pins Receptacle Female Sockets	Flash
Amphenol ICC (Commercial Products) L17H1110134	Black	D-Sub - Stacked	Stamped	Signal	Board Side (M3)	9	3 A	Gold	Thermoplastic Glass Filled	Through Hole Right Angle	Board Lock Grounding Indents Shielded	2	Brass	250 VDC	105 ░C	-55 °C			UL94 V-0	8.08 mm	0.318 "	1 (DE E)	Solder	Male Pins Plug	Flash
Amphenol ICC (Commercial Products) L17H1120120	Black	D-Sub - Stacked	Stamped	Signal	Housing/Shell (4-40)	9	3 A	Gold	Thermoplastic Glass Filled	Through Hole Right Angle	Board Lock Grounding Indents Shielded	2	Brass	250 VDC	105 ░C	-55 °C			UL94 V-0	8.08 mm	0.318 "	1 (DE E)	Solder	Plug Male Pins Receptacle Female Sockets	Flash
